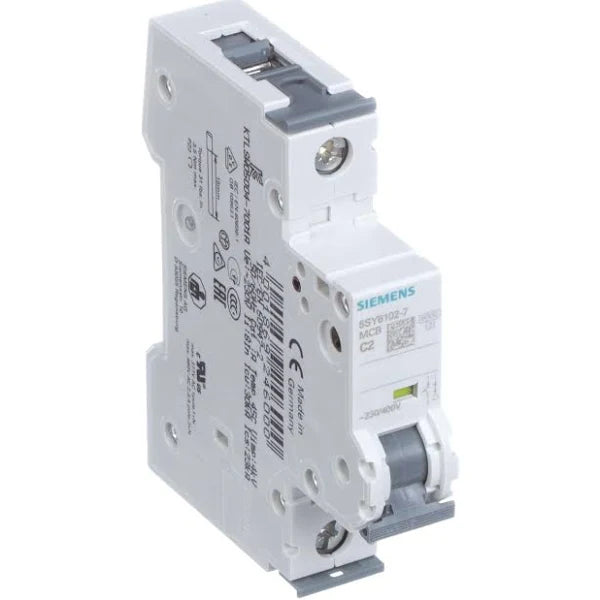

5SY6102-7 | Siemens Miniature Circuit Breaker, 1-Pole, 2A, Curve C
- Regular price
- $72.00
- Sale price
- $72.00
- Regular price
-
Do you need more quantity?
Product Description P/N: 5SY6102-7
Description
Siemens Sentron Supplementary Protector, Miniature, 480 VAC, 2 A, 50 Hz Frequency, 6 kA Interrupt, 5SY6 Frame, Thermal/Magnetic Trip, 2.26 to 2.9 A Trip, 1 Pole, Line/Load Side/Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 45 deg C, 90 mm H x 18 mm W x 70 mm D Dimensions.
Technical Specifications
Brand | Siemens |
Part Number | 5SY6102-7 |
Category | Circuit Breaker |
Subcategory | Din Rail Mount Circuit Breaker |
Amperage Rating | 2 A |
Connection type | Line/Load Side/Screw |
Dimensions | 90 mm H x 18 mm W x 70 mm D |
Enclosure Type | IP20 |
Frame | 5SY6 |
Frequency Rating | 50 Hz |
Interrupt Rating | 6 kA |
Mounting type | DIN Rail |
Number of Poles | 1 |
Temperature Rating (Degrees F) | -25 to 45 deg C |
Trip Range | 2.26 to 2.9 A |
Trip Type | Thermal/Magnetic |
Type | Miniature |
Voltage Rating | 480 VAC |
Wire Size | 14 to 4 AWG |
Information About 5SY6102-7
Siemens' UL 1077 Supplementary Protectors are designed to provide additional protection along with a branch circuit protection device. Since our Supplementary protectors are made to trip faster than a standard UL 489 Circuit Breaker they are able to provide additional protection for more sensitive devices inside the panel. Supplementary protectors can used in a number of industrial applications such as to provide selectivity for multiple motor control circuits on the secondary side of a control transformer or power supply by allowing the user to quickly find the problem circuit should a fault occur with out having to shut down all of the other control circuits. Supplementary protectors may also be used as a local disconnecting means inside the panel when a branch circuit protection device is already present.
Features
Excellent current limiting and selectivity characteristics
Combined terminals enable a simultaneous connection of busbars and feeder cables
Uniform components that can be quickly mounted individually
The handle locking device virtually prevents any unauthorized operation of the handle
Rapid connection of the feeder cable in front of the busbar
Identical terminals at both sides for an optional infeed from the top or the bottom
Identical wire screw-on line and load side
No tool required for mounting or dismounting
Supports a fast and comfortable removal from the assembly
Trip indication
Type C characteristic is for general device protection in control circuits
35 mm DIN-rail mounting
5 to 10 times magnetic trip point rating
1.13 to 1.45 thermal trip point protector rating
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
