5SY6110-7 | Siemens | Circuit Breaker
- Regular price
- $65.00
- Sale price
- $65.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 5SY6110-7
Description

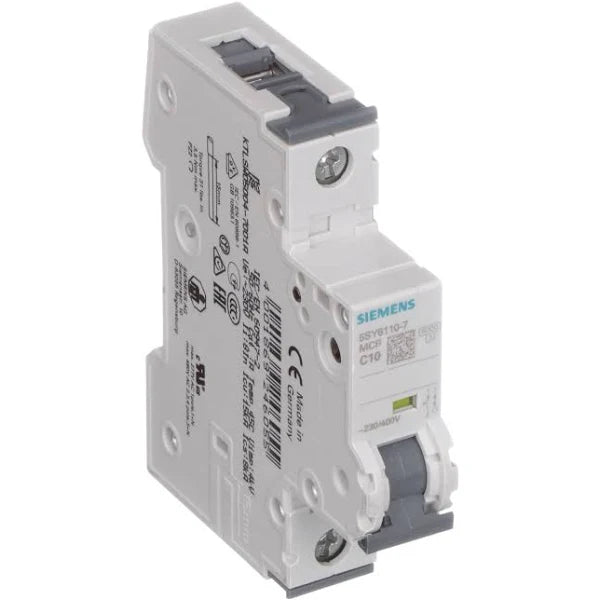

The Siemens 5SY6110-7 is a miniature circuit breaker designed for electrical protection in 230/400V systems. With a breaking capacity of 6kA, this 1-pole circuit breaker operates under characteristic C and has a rated current of 10A. Its compact design, with a diameter (D) of 70mm, makes it suitable for applications where space is a critical factor.
Technical Specifications
|
Part # |
5SY6110-7 |
|
Manufacturer |
SIEMENS |
|
Brand |
ITE SIEMENS |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Number of Poles |
1 |
|
Design of Pole |
1P |
|
Tripping Characteristic |
Class C |
|
Mechanical Service Life (Switching Cycles) |
10,000 (typical) |
|
Overvoltage Category |
III |
|
Degree of Pollution |
3 |
|
Type of Voltage / Operating Voltage |
AC |
|
Insulation Voltage (Ui) |
440V (rated value) |
|
Supply Voltage (Single-Phase) |
230V (rated value) |
|
Supply Voltage (Multi-Phase) |
400V (rated value) |
|
Frequency of Supply Voltage |
50/60 Hz |
|
Operating Voltage (DC) |
72V (rated value, maximum) |
|
Protection Class |
IP20 (with connected conductors) |
|
Switching Capacity Current |
15 kA (DC, IEC 60947-2) <br> 6 kA (EN 60898) <br> 15 kA (IEC 60947-2) |
|
Energy Limitation Class |
3 |
|
Power Loss (W) |
1.1 W (per pole, hot operating state, at rated current, AC) |
|
Operational Current |
- 10 A (rated value, 35°C) <br> - 9.39 A (rated value, 40°C) <br> - 9.07 A (rated value, 45°C) <br> - 8.74 A (rated value, 50°C) |
Information About 5SY6110-7
The Siemens 5SY6110-7 circuit breaker is a miniature circuit breaker designed for use in electrical systems operating at 230/400 volts. With a rated breaking capacity of 6kA, this circuit breaker is suitable for protecting circuits against overcurrents and short circuits. It is configured as a single-pole circuit breaker, denoted by the "1POL" designation, meaning it interrupts the circuit in a single phase.
The circuit breaker is classified with a tripping characteristic of "C", indicating its response time to overcurrents. The "C" characteristic is commonly used for general applications where moderate levels of inrush current are expected. This circuit breaker is rated for a nominal current of 10 amperes, making it suitable for circuits where the load does not exceed this value.
With a diameter (D) of 70 millimeters, the Siemens 5SY6110-7 circuit breaker has a compact form factor that allows for efficient use of space within electrical panels and distribution boards. Its miniature design makes it suitable for installations where space is limited, offering flexibility in layout configurations.
The circuit breaker is designed to provide reliable protection against overloads and short circuits in various electrical installations, including residential, commercial, and industrial settings. It offers robust performance and durability, ensuring the safety of electrical systems and equipment.
The Siemens 5SY6110-7 circuit breaker complies with industry standards and regulations, ensuring compatibility and adherence to safety requirements. Its design incorporates features that enhance its reliability and performance under different operating conditions.
Installation and maintenance of the circuit breaker are straightforward, thanks to its user-friendly design and construction. It is equipped with terminals for easy connection to electrical conductors, facilitating installation and wiring procedures.
