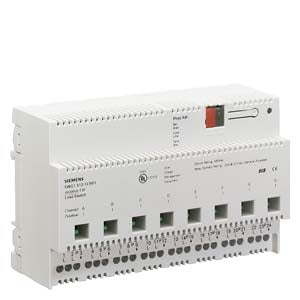

5WG1512-1CB01 | Siemens N 512C01 Load Switch 8×20 A 120/277/347 V AC Relay Module
- Regular price
- $812.00
- Sale price
- $812.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 5WG1512-1CB01
Description
The Siemens 5WG1512-1CB01 (N 512C01) is an 8-channel load switch and relay module designed for AC lighting and power distribution applications. It supports loads up to 20 A per channel at 120, 277, or 347 V AC, offering reliable and efficient control in commercial and industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Electrical Components |
| Part Number | 5WG1512-1CB01 |
| Alternate Model | N 512C01 |
| Subcategory | Load Switch / Relay Module |
| Function | 8-channel load switching |
| Rated Voltage | 120 / 277 / 347 V AC |
| Rated Current | 20 A per channel |
| Load Type | AC C-load (lighting and inductive loads) |
| Number of Channels | 8 |
| Contact Type | Relay output |
| Switching Capability | Suitable for high inrush and capacitive loads |
| Isolation | Electrically isolated relay contacts |
| Control Type | External control signal (bus or logic input, model-dependent) |
| Mounting Type | Panel or DIN-rail mount (depending on configuration) |
| Housing Material | Industrial-grade enclosure |
| Protection Class | IP20 |
| Certifications | cUL Listed |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 95%, non-condensing |
| Weight | 1.00 lbs |
Information About 5WG1512-1CB01
The 5WG1512-1CB01, part of Siemens’ Gamma N 512C series, is a heavy-duty load switch and relay module engineered for use in building automation and lighting control systems. With eight independent relay outputs, each rated at 20 A, it allows simultaneous control of multiple lighting circuits or electrical loads. The module supports AC supply voltages up to 347 V, making it suitable for North American and international installations. Each relay channel is designed to handle high inrush currents, ideal for controlling C-loads such as fluorescent ballasts or capacitive circuits. Compact and cUL listed, the 5WG1512-1CB01 ensures safe, efficient, and scalable switching performance for commercial lighting, HVAC, and automation applications.
Key Features:
- 8 Independent Channels: Provides control of up to eight individual loads for flexible system design.
- High Load Capacity: Supports up to 20 A per channel at 120, 277, or 347 V AC for demanding applications.
- C-Load Compatibility: Designed for lighting and capacitive loads with high inrush current.
- Robust Relay Outputs: Electrically isolated contacts ensure reliable and safe switching performance.
- Versatile Applications: Suitable for lighting, HVAC, and power distribution control systems.
- Certified Safety: cUL listed for compliance with North American electrical standards.
- Compact Industrial Design: Space-efficient housing for easy installation in control panels.
- Durable Operation: Built to perform reliably in commercial and industrial environments.
The 5WG1512-1CB01 delivers the reliability and performance required for centralized load control, lighting automation, and power distribution in modern building management systems.
Description
The Siemens 5WG1512-1CB01 (N 512C01) is an 8-channel load switch and relay module designed for AC lighting and power distribution applications. It supports loads up to 20 A per channel at 120, 277, or 347 V AC, offering reliable and efficient control in commercial and industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Electrical Components |
| Part Number | 5WG1512-1CB01 |
| Alternate Model | N 512C01 |
| Subcategory | Load Switch / Relay Module |
| Function | 8-channel load switching |
| Rated Voltage | 120 / 277 / 347 V AC |
| Rated Current | 20 A per channel |
| Load Type | AC C-load (lighting and inductive loads) |
| Number of Channels | 8 |
| Contact Type | Relay output |
| Switching Capability | Suitable for high inrush and capacitive loads |
| Isolation | Electrically isolated relay contacts |
| Control Type | External control signal (bus or logic input, model-dependent) |
| Mounting Type | Panel or DIN-rail mount (depending on configuration) |
| Housing Material | Industrial-grade enclosure |
| Protection Class | IP20 |
| Certifications | cUL Listed |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 95%, non-condensing |
| Weight | 1.00 lbs |
Information About 5WG1512-1CB01
The 5WG1512-1CB01, part of Siemens’ Gamma N 512C series, is a heavy-duty load switch and relay module engineered for use in building automation and lighting control systems. With eight independent relay outputs, each rated at 20 A, it allows simultaneous control of multiple lighting circuits or electrical loads. The module supports AC supply voltages up to 347 V, making it suitable for North American and international installations. Each relay channel is designed to handle high inrush currents, ideal for controlling C-loads such as fluorescent ballasts or capacitive circuits. Compact and cUL listed, the 5WG1512-1CB01 ensures safe, efficient, and scalable switching performance for commercial lighting, HVAC, and automation applications.
Key Features:
- 8 Independent Channels: Provides control of up to eight individual loads for flexible system design.
- High Load Capacity: Supports up to 20 A per channel at 120, 277, or 347 V AC for demanding applications.
- C-Load Compatibility: Designed for lighting and capacitive loads with high inrush current.
- Robust Relay Outputs: Electrically isolated contacts ensure reliable and safe switching performance.
- Versatile Applications: Suitable for lighting, HVAC, and power distribution control systems.
- Certified Safety: cUL listed for compliance with North American electrical standards.
- Compact Industrial Design: Space-efficient housing for easy installation in control panels.
- Durable Operation: Built to perform reliably in commercial and industrial environments.
The 5WG1512-1CB01 delivers the reliability and performance required for centralized load control, lighting automation, and power distribution in modern building management systems.
