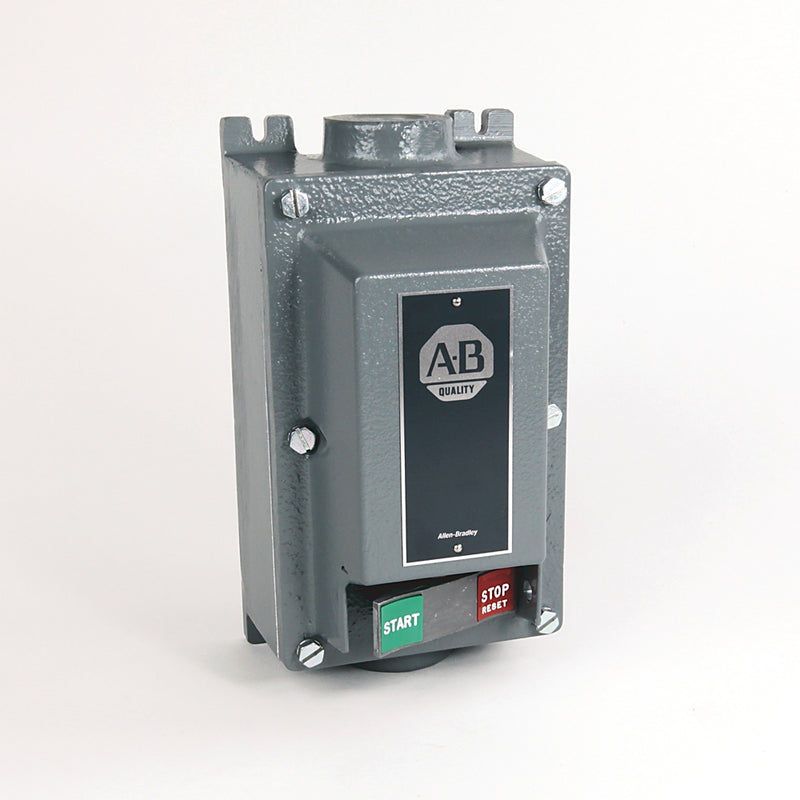

609-AEW | Allen-Bradley NEMA Size 0 Manual Motor Starter
- Regular price
- $1,422.00
- Sale price
- $1,422.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 609-AEW
Description
The Allen-Bradley 609-AEW is a NEMA Size 0 non-reversing manual motor starter built for use in hazardous locations. It features a rugged aluminum enclosure rated for NEMA Type 7 and 9 applications and is operated via a push-button interface.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Contactors & Starters
|
| Part Number | 609-AEW |
| Subcatecory |
Contactor
|
| NEMA Size | Size 0 |
| Phases | 3 Phase |
| Operator Type | Push Button |
| Enclosure Rating | NEMA Type 7 & 9 |
| Enclosure Material | Cast Aluminum |
| Reset Type | External Manual Reset |
| Application | Hazardous Locations |
| Certifications | CE, UL, CSA, KC |
| Weight | 10.4100 lb |
Information About 609-AEW
The 609-AEW is specifically designed for Class I and II hazardous environments and includes a cast aluminum enclosure with multi-bolt fasteners to ensure a secure, explosion-resistant seal. Rated for NEMA Size 0, it supports 3-phase motor circuits and features an external reset for convenient operation. The non-reversing configuration makes it well-suited for straightforward motor start-stop applications. Certified to CE, UL, CSA, and KC standards, it meets international safety requirements for hazardous area installations.
Key Features:
-
Hazardous Location Rated: NEMA Type 7 & 9 cast aluminum enclosure supports Class I and II environments.
-
NEMA Size 0: supports small 3-phase motors in compact form factors.
-
Push Button Operator: provides straightforward local control for start/stop motor operation.
-
External Manual Reset: allows for safe motor restart after overload trips without opening the enclosure.
-
Rugged Enclosure: heavy-duty aluminum construction with multi-bolt fasteners for explosion protection.
-
Globally Certified: meets CE, UL, CSA, and KC compliance for regulated environments.
The 609-AEW delivers secure, push-button motor control in hazardous locations with certified protection and durable construction for NEMA Size 0 applications.
