61038J | Ferraz Shawmut Fuse Holder
- Regular price
- $854.00
- Sale price
- $854.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 61038J
Description

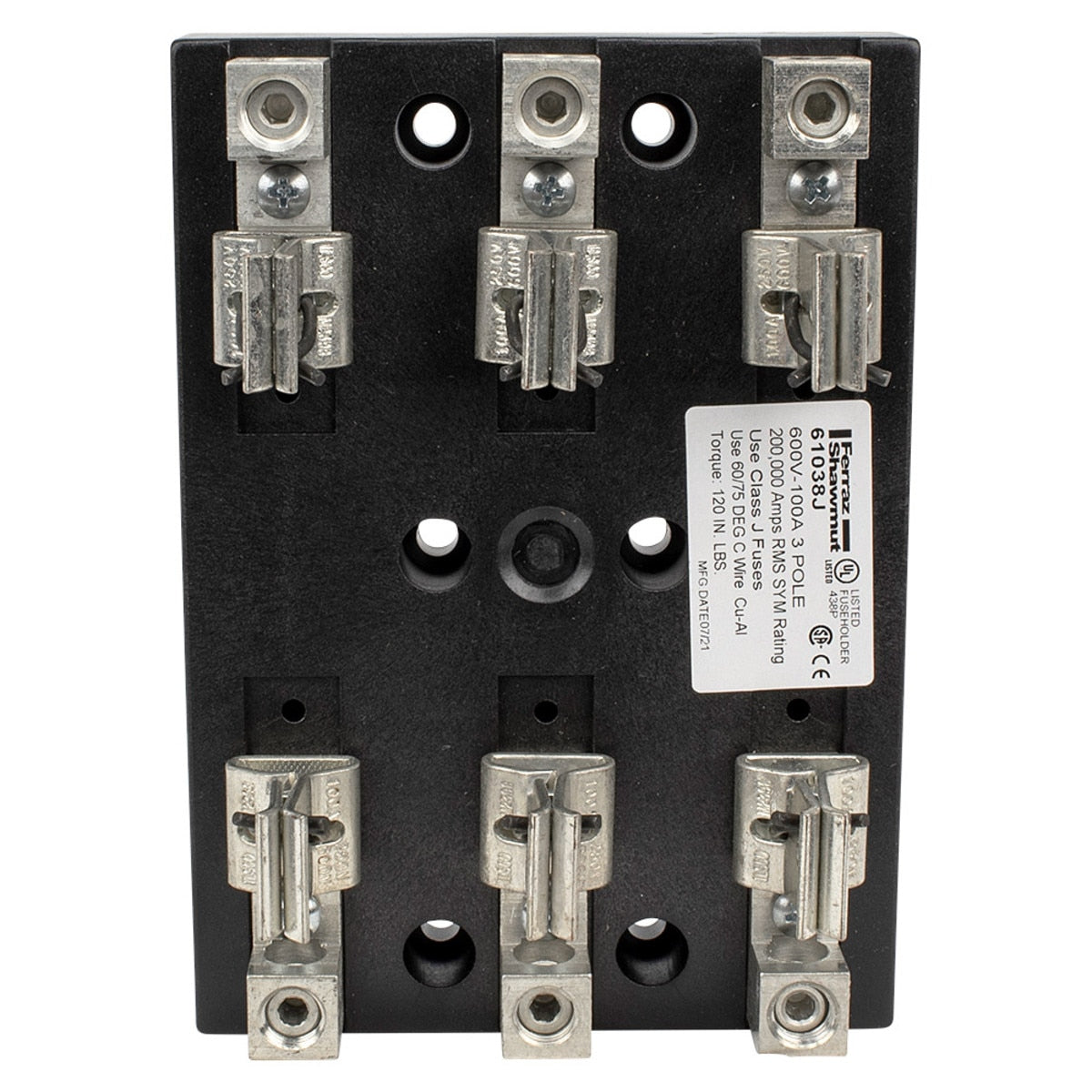

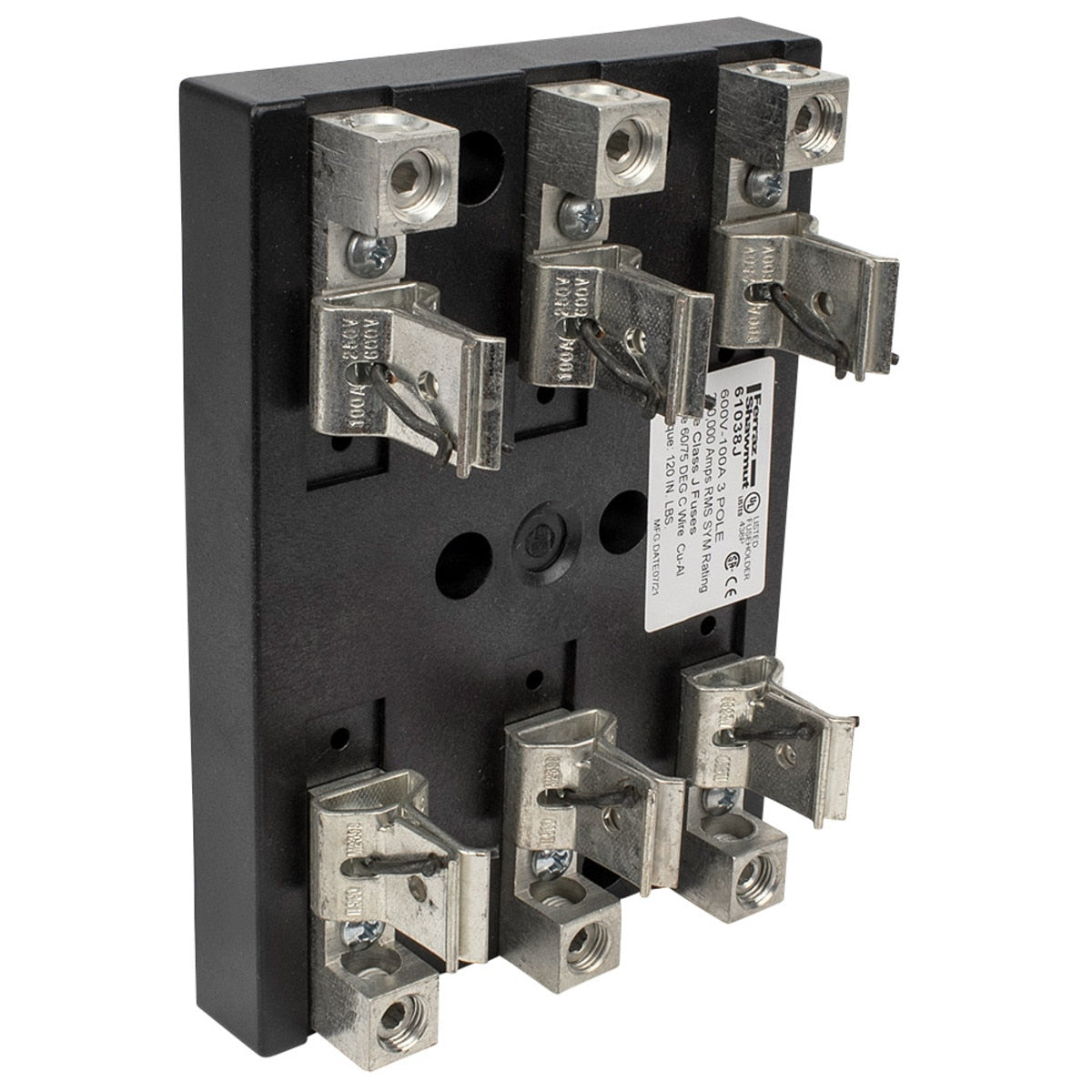

The Ferraz Shawmut 61038J is a Class J, 3-pole open-style fuse holder rated for 100 A and 600 VAC/VDC, designed for use with Mersen’s Amp‑Trap Series fuses. It features a reinforced phenolic insulator, box-lug connectors supporting 6 to 2/0 AWG copper or aluminum conductors, and torque-rated connectors (120 in‑lbs).
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Ferraz Shawmut |
| Category |
Panel Accessories
|
| Part Number | 61038J |
| Subcategory | Fuse Holder |
| Type | 610 Series |
| Amperage Rating | 100 Amps |
| Voltage Rating | 600 Volts AC |
| Number of Poles | 3 Pole |
| Fuse Class Compatibility | UL Class J |
| Terminal Type | Box Lugs – Aluminum/Copper (2/0 to #6 AWG) |
| Mounting Style | Open Style / Panel Mount |
| Dimensions | 5 in x 7 in x 2.36 in |
| Weight | 2.50 lbs |
Information About 61038J
The 61038J is a 3-pole Class J fuse holder from Ferraz Shawmut (Mersen), engineered for secure mounting of 600 V AC/DC fuses in industrial control and power distribution systems. Rated for up to 100 amps, it features rugged, open-style construction with box lug terminals that support a wide wire range (6 AWG to 2/0 AWG), allowing both copper and aluminum conductors. Designed for high-dielectric performance and ease of installation, the 61038J is UL and CSA certified, making it a trusted choice for panel builders and OEMs. Despite being discontinued, it remains a popular component in legacy and retrofit applications.
Key Features:
- Class J Fuse Compatibility: Supports time-delay and current-limiting Class J fuses up to 100 A at 600 V AC or DC, providing high interrupting capacity.
- 3-Pole Configuration: Accommodates three fuses, enabling protection for three-phase circuits in motor control and distribution systems.
- Box Lug Terminals: Securely accepts 6 AWG to 2/0 AWG copper or aluminum wires with 120 in-lb torque rating, simplifying panel integration.
- Open-Style Mounting: Designed for panel mounting in compact enclosures, with high visibility and accessibility for maintenance.
- Durable Construction: Reinforced phenolic body ensures high heat resistance and electrical insulation.
- UL and CSA Approved: Tested to North American safety standards for reliable use in industrial and commercial systems.
- Compact Dimensions: Measuring approximately 5″ × 7″ × 2.36″, it fits into dense panels without sacrificing serviceability.
The Ferraz Shawmut 61038J provides rugged, code-compliant fuse mounting for three-phase Class J applications. Its flexible wiring, robust build, and standards compliance make it a reliable component in both new installations and replacement scenarios.
