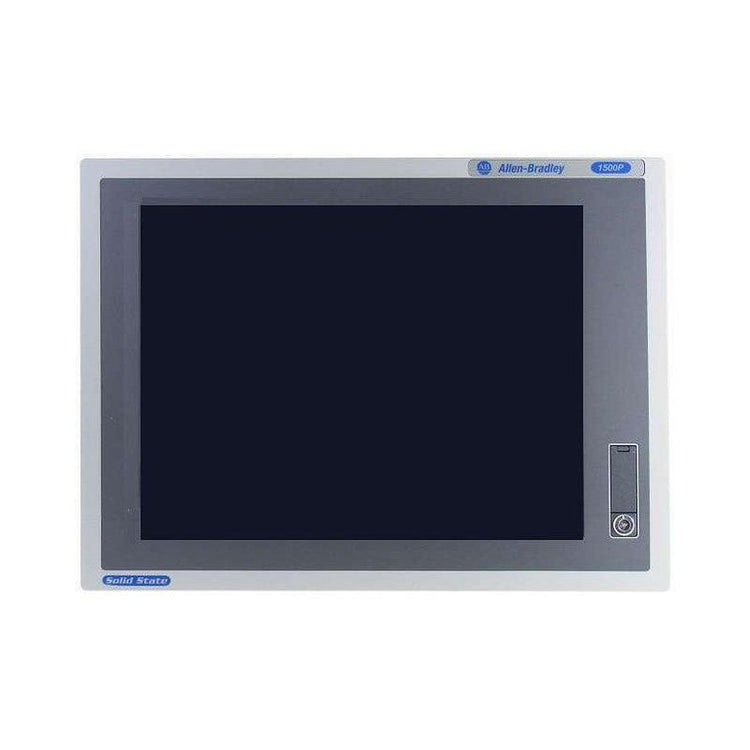

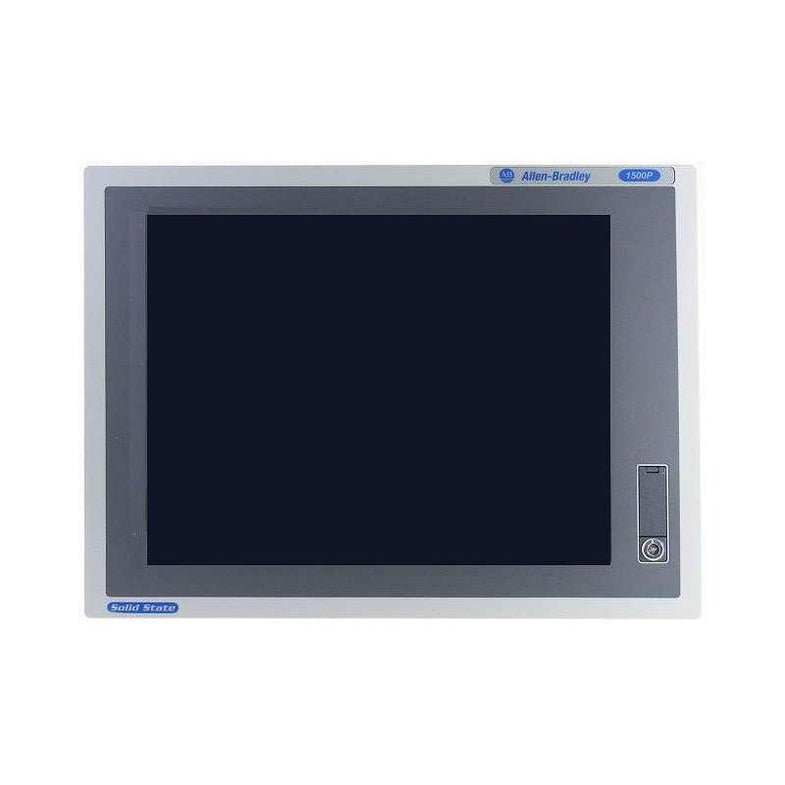

6181F-15TPXP | Allen-Bradley Industrial Monitor
- Regular price
- $6,999.00
- Sale price
- $6,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6181F-15TPXP
Description
The Allen-Bradley 6181F-15TPXP is a rugged, 15-inch industrial flat panel monitor designed for harsh manufacturing and industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category | HMI / MMI / OIT |
| Part Number | 6181F-15TPXP |
| Subcategory | Operator Interface |
|
Processor |
Intel Core Duo U2500, 1.2 GHz/2M L2 cache/533 MHz 9 W
|
| Hard Disk Drive (HDD) |
2.5-in. SATA SLC solid-state drive, 32 GB min
|
|
RAM |
4 GB |
| System Memory Slots | Dual channel DDR2, 2 DIMM slots, 4 GB max |
|
System Chipset |
Intel 945GME, ICH7-M |
| Monitor | Integrated |
| Ethernet Ports | Two (2) (1) 10/100/1000 Mbps LAN ports (RJ-45) |
| I/O Ports | PS/2 mouse port • PS/2 keyboard port • Parallel port • DVI-I port • 2 serial COM ports • 4 rear USB ports • 1 front USB port(3) • Audio line in/line out • Microphone |
| Display | Color Active Matrix Thin Film Transistor (TFT) |
| Display Size | 381 mm (15 in.) |
| Resolution | 1024 x 768 |
| Native Input Interface | Resistive antiglare Touchscreen |
| Mounting Options |
Panel Mount
|
| Processor Type | Intel Core Duo U2500 |
| Memory | 256 GB |
| Communication | 2 Serial ports, 1 Parallel port, and 2 Ethernet ports |
| Input Type | Touchscreen |
| Product Line | VersaView 1500F |
| Dimensions | 12.16 x 16.14 x 3.94 in. |
| Weight | 24.21 lbs |
Information About 6181F-15TPXP
The Allen-Bradley 6181F-15TPXP is a rugged 15-inch industrial flat panel monitor designed for demanding factory and process automation environments. As part of the 6181F series from Rockwell Automation, it features a high-resolution resistive touchscreen, solid-state fanless design, and sealed front panel to ensure reliable performance in harsh conditions. Ideal for machine-level operator interfaces and HMI applications, it offers versatile mounting options and industrial-grade protection to support continuous operation in vibration, dust, and temperature-sensitive areas.
Key Features:
- 15-Inch TFT LCD Display:
Delivers clear, bright visualization with 1024x768 (XGA) resolution for monitoring, control, and HMI applications in industrial settings. - Resistive Touchscreen Interface:
Supports high-precision touch input, even when using gloves, making it suitable for shop-floor interaction in manufacturing and processing plants. - Rugged, Fanless Design:
Engineered with solid-state cooling and no moving parts, enhancing durability and reducing maintenance needs in vibration-prone and dusty environments. - Industrial-Grade Protection:
Features an IP65- and NEMA 4/4X-rated front panel when panel-mounted, providing resistance to water, dust, oil, and chemical exposure. - Flexible Video Input Options:
Equipped with VGA and DVI-D interfaces for easy integration with a wide range of industrial PCs and control systems. - 24V DC Power Input:
Standardized industrial power supply compatibility ensures seamless integration into control cabinets and electrical panels. - Versatile Mounting:
Supports panel mounting for flush integration into control enclosures, as well as VESA mount options for arm or wall installations. - Environmental Reliability:
Designed to operate in challenging conditions with typical operating temperature support from 0°C to 50°C and compliance with shock and vibration standards.
The 6181F-15TPXP is a robust industrial touchscreen monitor that combines durability, clarity, and ease of use. With its sealed, fanless construction and glove-friendly interface, it’s built to meet the needs of modern automation systems and industrial HMI applications where reliability and performance are non-negotiable.
