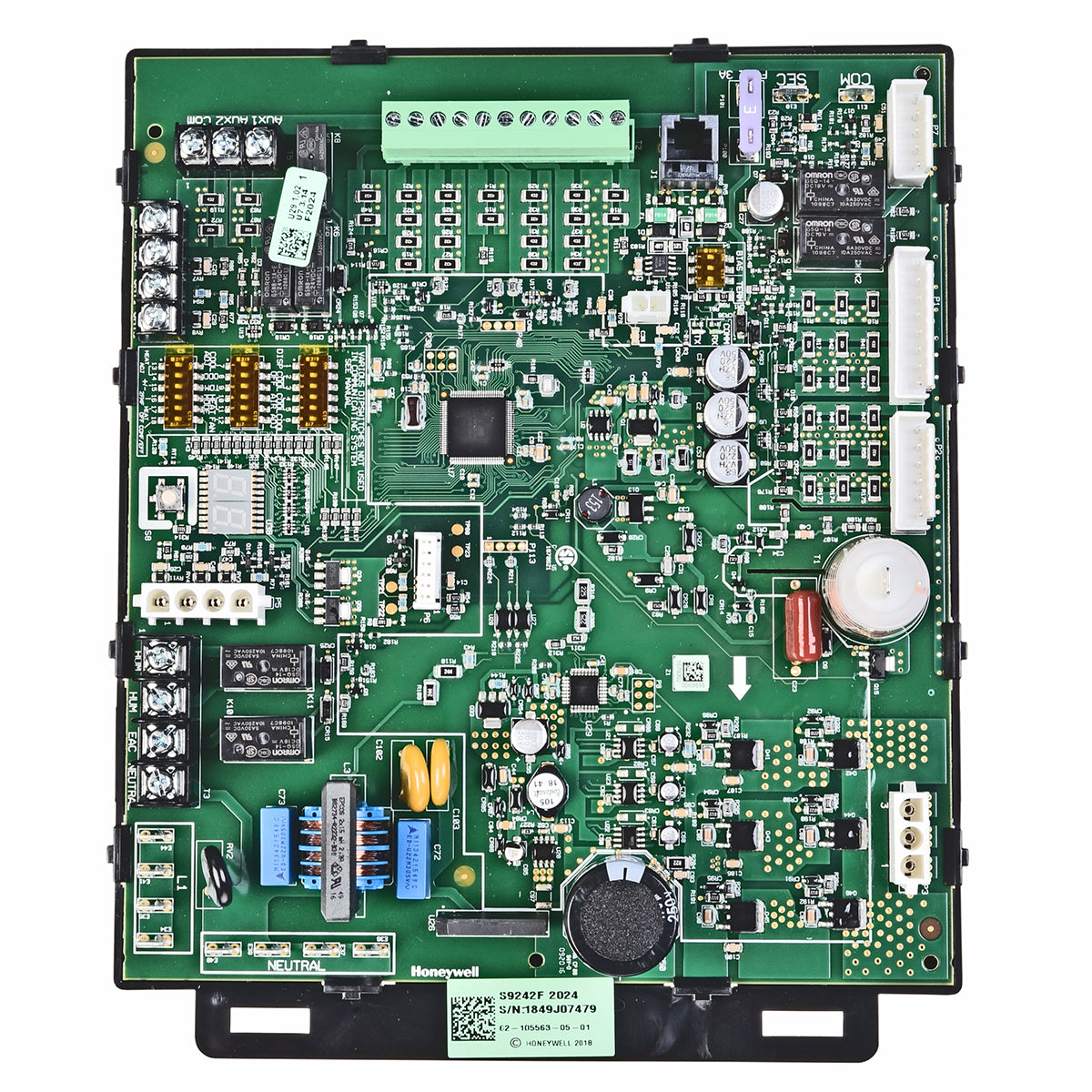

62-105563-05-02 | Rheem IFC Integrated Gas Furnace Control Board
- Regular price
- $1,191.00
- Sale price
- $1,191.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 62-105563-05-02
Description
The Rheem 62-105563-05-02 IFC Integrated Gas Furnace Control Board (model S9242F2026) is a high-quality OEM replacement part for Rheem and Honeywell gas furnaces. It provides precise control of ignition, blower, and safety functions, ensuring reliable furnace operation and efficient heating system performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Rheem |
| Category | HVAC Controls |
| Part Number | 62-105563-05-02 |
| Subcategory | Furnace Control Board |
| Type | Integrated Furnace Control (IFC) Board |
| System Compatibility | Rheem and Honeywell gas furnaces |
| Function | Controls ignition, blower motor, and safety systems |
| Input Voltage | 120 VAC |
| Control Voltage | 24 VAC for thermostat and safety circuits |
| Blower Control | Integrated fan timing and speed regulation |
| Safety Features | Monitors pressure switch, limit switch, and rollout sensors |
| Mounting Type | Panel-mounted electronic board |
| Enclosure | Open-frame PCB with protective coating |
| Weight | 1.41 lbs |
| Certifications | UL Recognized Component |
| Application | Residential and light commercial gas furnaces |
Information About 62-105563-05-02
The Rheem 62-105563-05-02 IFC is an OEM integrated furnace control board designed to replace faulty or aging modules in compatible Rheem and Honeywell heating systems. This control board manages key furnace functions, including ignition sequencing, blower operation, and safety monitoring. By ensuring precise timing and reliable control of electrical components, it helps maintain consistent heating performance and system efficiency. The board is factory-calibrated for direct compatibility with supported furnace models, making installation quick and straightforward. With integrated diagnostics and durable electronic components, it offers dependable operation and extended service life in demanding HVAC environments.
Key Features
- Integrated Control Functionality: Manages ignition, blower, and safety systems for seamless furnace operation.
- OEM Replacement Part: Designed specifically for Rheem and Honeywell gas furnaces to ensure compatibility and performance.
- Reliable Ignition Management: Provides consistent spark or hot surface ignition control for efficient system startup.
- Built-In Safety Monitoring: Continuously supervises pressure, limit, and rollout switches to protect furnace integrity.
- Energy-Efficient Operation: Optimizes blower and ignition timing for improved comfort and reduced energy use.
- Quick Installation Design: Pre-configured terminals and mounting points simplify replacement procedures.
The 62-105563-05-02 delivers the reliability and precision required for modern gas furnace systems, ensuring consistent heating control, safety, and efficiency.
