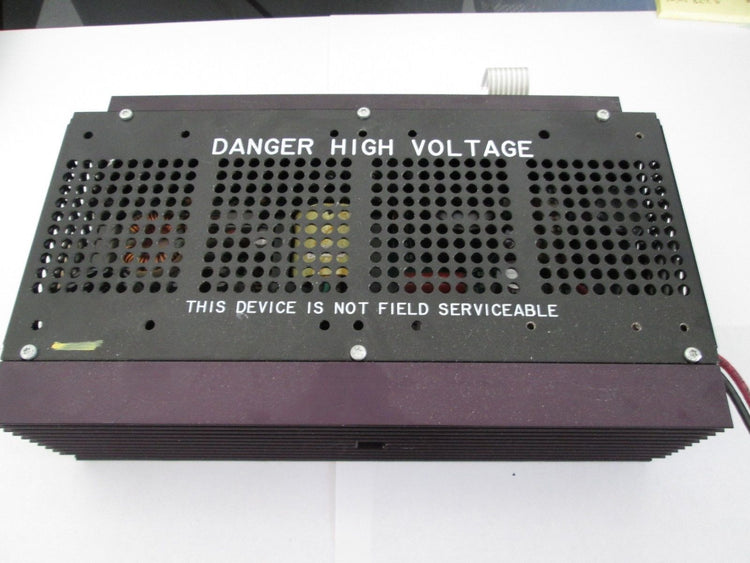

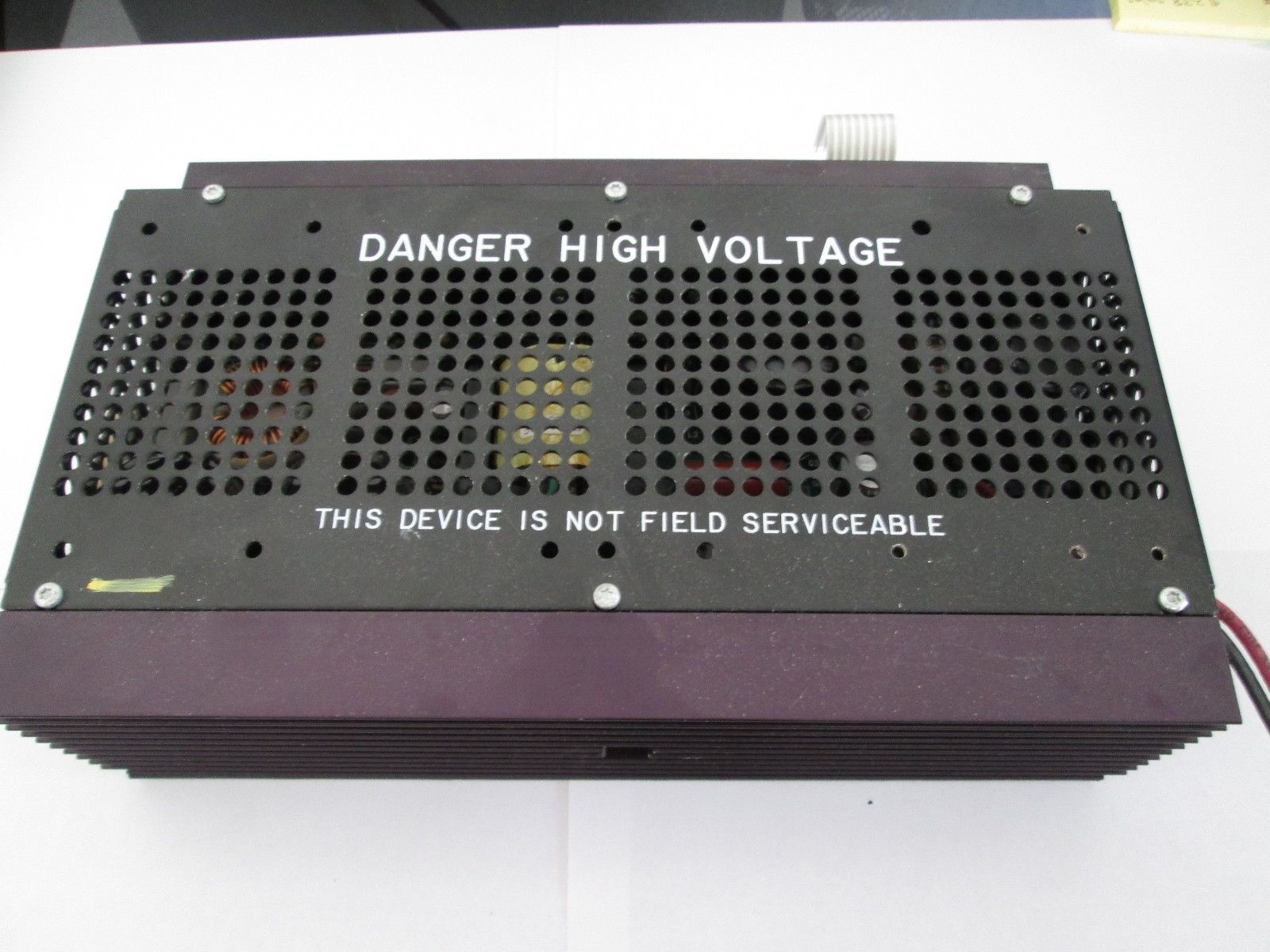

636-341 | Simplex Power Supply for 4020 & 4100 Fire Alarm Panels – 28.5 VDC, 12A
- Regular price
- $1,278.00
- Sale price
- $1,278.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 636-341
Description
The Simplex 636-341 Power Supply is designed for use with Simplex 4020 and 4100 Series fire alarm control panels. It delivers 28.5 VDC at 12 amps output from a 120/240 VAC input, providing reliable power conversion and supervision. This unit includes battery changeover and monitoring functions to ensure continuous system operation during brownouts or power loss.
Technical Specifications
| Part Number | 636-341 |
| Brand / Manufacturer | Simplex |
| Part Type | Power Supply |
| Condition | Reconditioned / Discontinued |
| Compatibility | Simplex 4020 & 4100 Series (Group 2 only) |
| Input Voltage | 120/240 VAC, 6.0/3.0 A, 50/60 Hz |
| Output Voltage | 28.5 VDC |
| Output Current | 12 A |
| Weight | 8 lbs (3.2 kg) |
| Dimensions | 12.5 × 6.5 × 5 in |
Information About 636-341
The 636-341 is a discontinued Simplex power supply module that supports Group 2 compatibility with the 4020 and 4100 control panels. It works with specific companion boards, including the Master Controller #565-325, Power Supply Interface #565-256, and Standard Slave Boards #565-368 or #566-759. With its integrated supervision and automatic changeover capabilities, it ensures fire alarm systems remain functional in critical environments.
Key Features:
- Converts 120/240 VAC input to regulated 28.5 VDC output
- Provides up to 12 amps of DC power
- Integrated battery changeover circuitry (controlled by slave board)
- Supervises and monitors batteries under system control
- Detects brownout or AC power loss and signals the system
- Compatible with Simplex 4020 and 4100 panels (Group 2 only)
- Supports essential boards: Master Controller #565-325, Power Supply Interface #565-256, and Standard Slave #565-368 / #566-759
