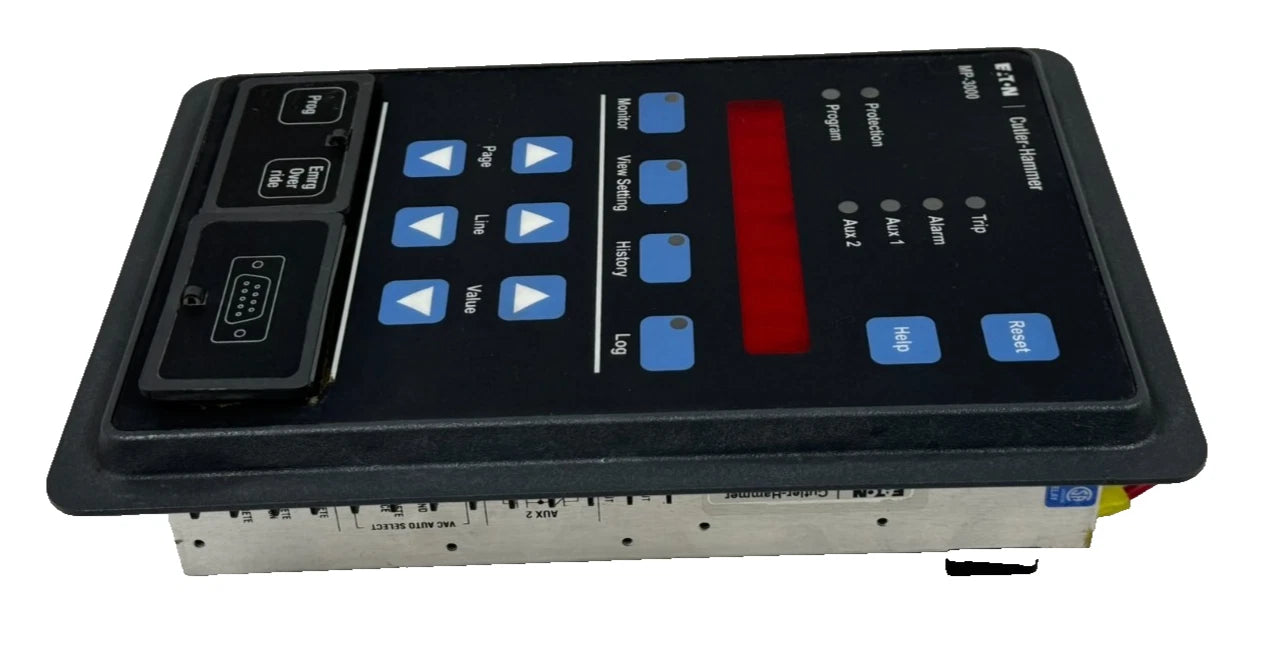

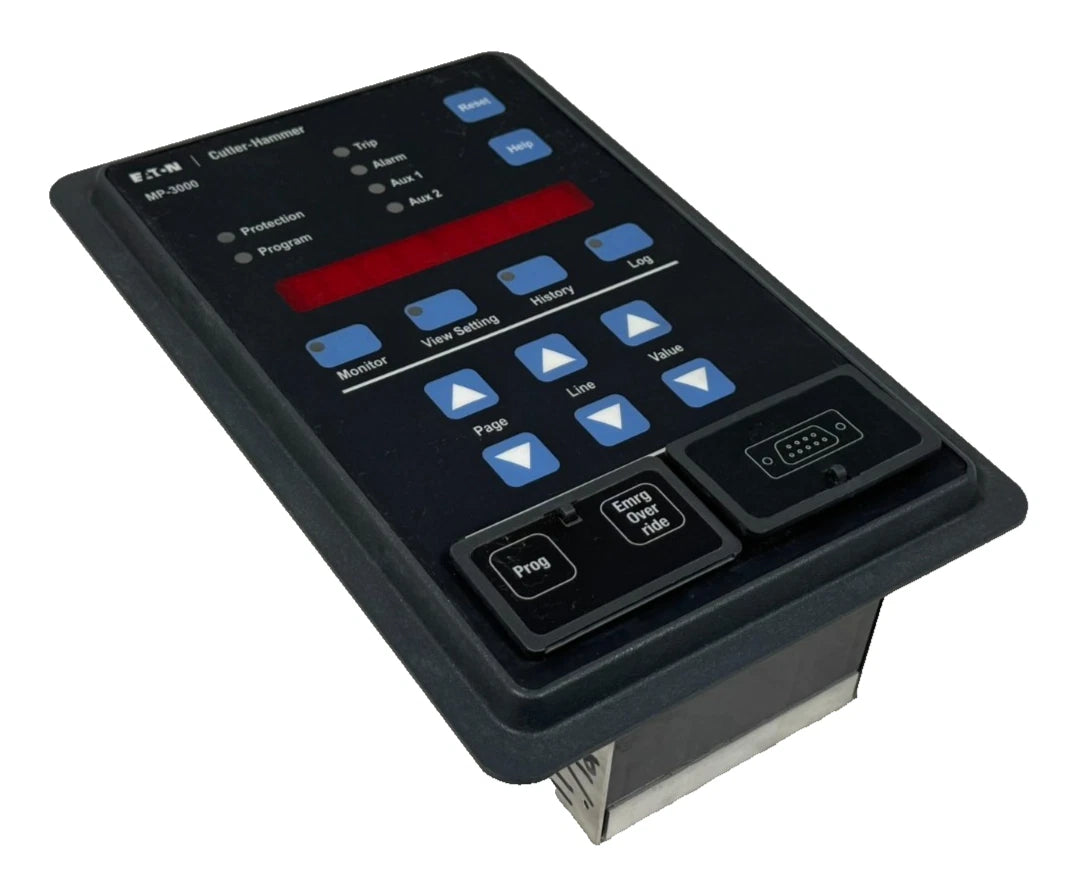

66D2205G01 | Eaton Motor Protection Relay 120/240V AC Industrial Control
- Regular price
- $8,299.00
- Sale price
- $8,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 66D2205G01
Description
The Eaton 66D2205G01 is a motor protection relay designed to monitor and protect electric motors from overload and fault conditions. Manufactured by Eaton, the 66D2205G01 operates on 120/240V AC control voltage and provides reliable protection for industrial motor control systems. Its protective functions help prevent motor damage by detecting abnormal operating conditions and initiating protective shutdown.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Motor Control |
| Part Number | 66D2205G01 |
| Subcategory | Motor Protection Relay |
| Control Voltage | 120/240 V AC |
| Device Type | Motor Protection Relay |
| Application | Industrial Motor Protection |
| Monitoring Function | Motor Overload and Fault Detection |
| Installation Type | Panel Mounted |
| Operating Frequency | 50/60 Hz |
| Compatibility | Motor Starters and Control Circuits |
| Protection Function | Overload and Electrical Fault Monitoring |
| Construction Type | Industrial Relay Module |
| Weight | Approx. 1.5 lb |
Information About 66D2205G01
The 66D2205G01 is an industrial motor protection relay engineered to safeguard electric motors in automated and heavy-duty electrical systems. It monitors motor operating parameters and activates protective mechanisms when conditions such as overload, phase imbalance, or electrical faults occur. Designed for integration within motor control centers and industrial control panels, the relay operates on 120/240V AC control circuits and supports reliable motor management. Its robust construction and dependable sensing capabilities make it suitable for applications in manufacturing equipment, pumping systems, conveyors, and other motor-driven machinery.
Key Features:
- Motor Overload Protection: Detects excessive current conditions to prevent motor overheating and equipment damage.
- Dual Control Voltage Capability: Operates on 120V or 240V AC control power for flexible system integration.
- Fault Detection Monitoring: Identifies abnormal operating conditions and triggers protective shutdown.
- Industrial Motor Control Integration: Designed for installation in motor control panels and protection systems.
- Reliable Relay Switching Mechanism: Provides dependable activation of protection circuits when faults occur.
- Durable Industrial Construction: Built for long-term performance in demanding industrial environments.
- Compatible with Motor Control Equipment: Works alongside contactors, starters, and other motor control components.
- Electrical System Protection: Helps protect motors, wiring, and connected equipment from electrical damage.
The 66D2205G01 delivers the reliability and precision required for industrial motor monitoring and protection systems.
