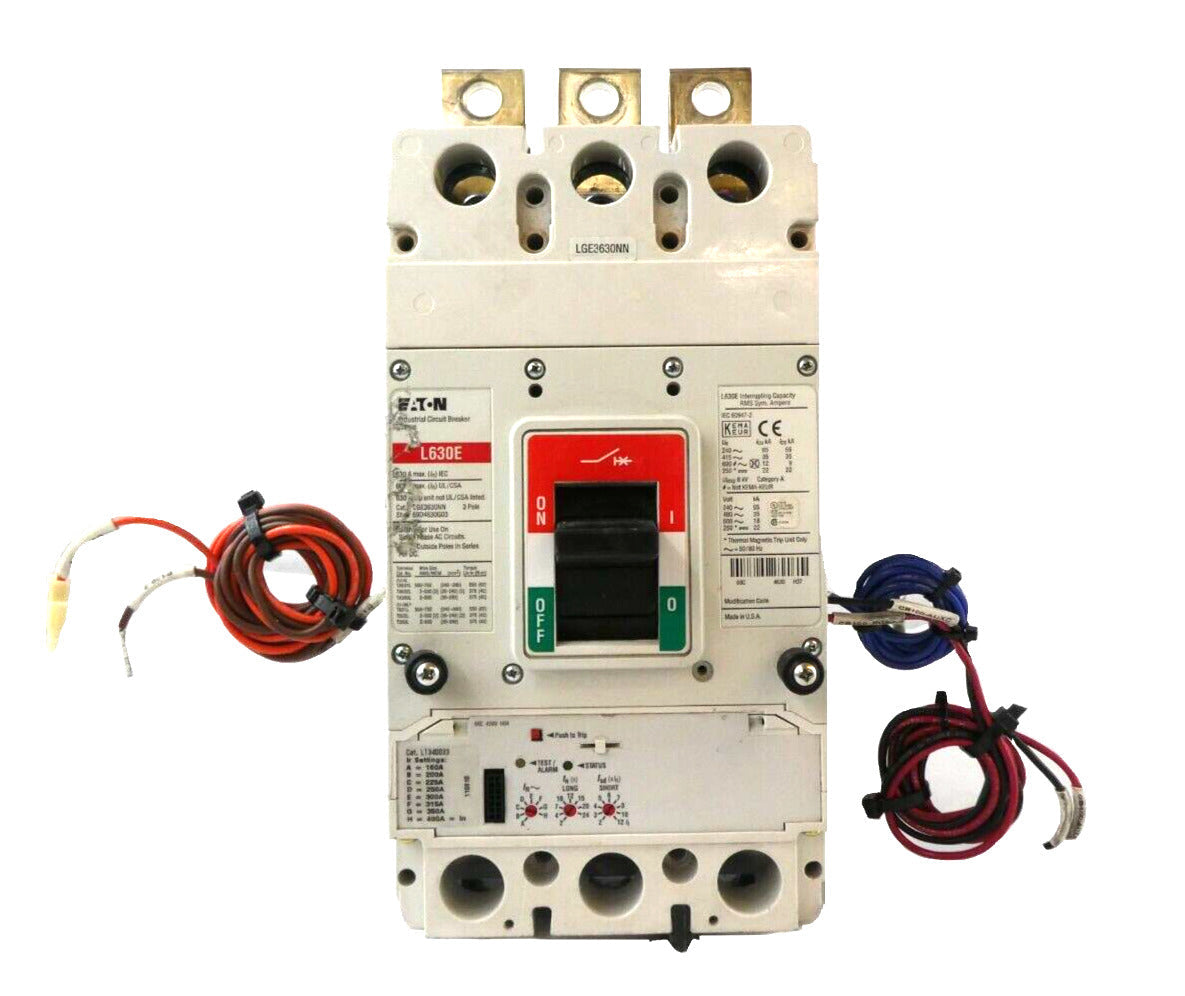

69D4630G03 | Eaton Industrial Circuit Breaker
- Regular price
- $1,125.00
- Sale price
- $1,125.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 69D4630G03
Description
The Eaton 69D4630G03 is a 3-pole molded case circuit breaker from the Series G family, designed for industrial applications requiring high current protection.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Eaton |
| Category |
Circuit Breaker
|
| Part Number | 69D4630G03 |
| Subcategory | Molded Case Circuit Breaker |
| Series | LG Series |
| Frame Type |
Low Interruption Frame
|
| Number of Poles | 3 Pole |
| Current Rating |
630 A
|
| Voltage Rating |
Up to 600 V AC
|
| Trip Unit |
Fixed Thermal, Fixed Magnetic
|
| Interrupting Capacity |
200 kAIC @ 240 V, 100 kAIC @ 415 V / 480 V, 50 kAIC @ 600 V
|
| Certification |
UL Listed, HACR Rated
|
| Application |
Industrial Power Distribution
|
| Weight |
14.17 lbs
|
Information About 69D4630G03
The Eaton 69D4630G03 is a 3-pole molded case circuit breaker from the Series G LG-frame family, designed for industrial applications requiring reliable overcurrent protection. Also known by catalog number LGE3630NN and model L630E, this breaker features a fixed thermal and fixed magnetic trip unit, providing dependable long-time and instantaneous protection. With a current rating of 630 A and voltage rating up to 600 V AC, it offers interrupting capacities of 200 kAIC at 240 V, 150 kAIC at 415 V, 150 kAIC at 480 V, and 65 kAIC at 600 V. The breaker is UL Listed, CSA Certified, IEC Rated, and CE Marked, ensuring compliance with global standards. Its compact design and high interrupting capacity make it suitable for demanding power distribution systems.
Key Features:
- Product Type: Molded Case Circuit Breaker
- Series: Series G
- Frame Size: LG
- Catalog Number: LGE3630NN
- Style Number: 69D4630G03
- Model Number: L630E
- Number of Poles: 3
- Current Rating: 630 A
- Voltage Rating: Up to 600 V AC
- Trip Type: Fixed Thermal, Fixed Magnetic
- Interrupting Capacity:
200 kAIC at 240 V
150 kAIC at 415 V
150 kAIC at 480 V
65 kAIC at 600 V - Certifications:
UL Listed
CSA Certified
IEC Rated
CE Marked - Dimensions:
Height: 10.13 inches
Width: 5.48 inches
Depth: 4.09 inches - Weight: Approximately 16 lbs
- Mounting: Frame only (no trip unit or terminals included)
This circuit breaker is ideal for industrial power distribution applications where high interrupting capacity and compact design are essential. Its compatibility with Series G accessories allows for flexible configuration to meet specific system requirements.
