6AV2123-2DB03-0AX0 | Siemens | Basic Panel
- Regular price
- $259.00
- Sale price
- $259.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6AV2123-2DB03-0AX0
Description

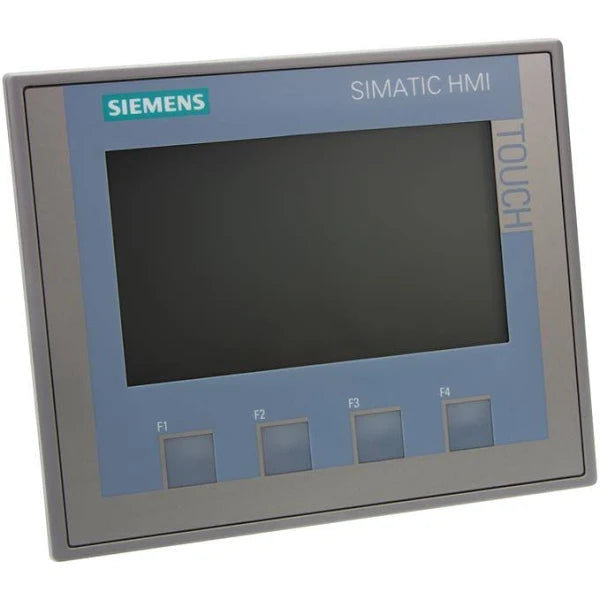

The Siemens 6AV2123-2DB03-0AX0 is a SIMATIC KTP400 Basic Panel, designed for operator interface applications. It features both key and touch operation methods, with a 4.3-inch widescreen color display. The panel includes 4 function keys and is powered by an ARM CPU with 10MB of user memory.
Connectivity options include 1 x RJ-45 Industrial Ethernet Interface Port supporting PROFINET, EtherNet/IP, and MODBUS TCP/IP protocols, as well as 1 x USB port. The panel's display resolution is 480x272 TFT LCD with 65536 colors.
Configuration of the panel is possible using WinCC Basic V13 or Step7 Basic V13 software. It operates with a 24V DC power supply, making it suitable for various industrial applications.
