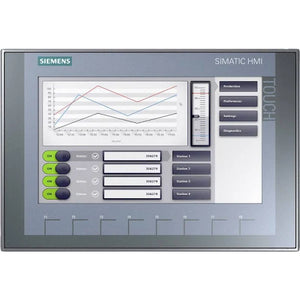

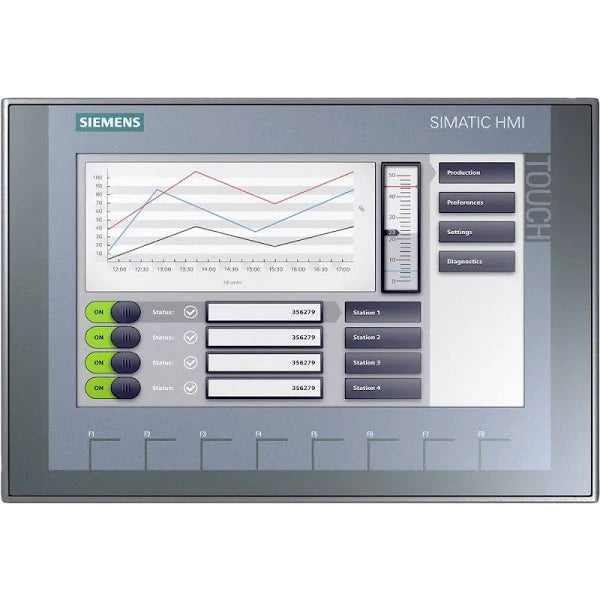

6AV2123-2JB03-0AX0 | Siemens SIMATIC KTP900 Basic Panel, 9-inch, Color, Key/Touch
- Regular price
- $994.00
- Sale price
- $994.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6AV2123-2JB03-0AX0
Description
Siemens 6AV2 123-2JB03-0AX0 SIMATIC KTP900 Basic Panel, Operator Interface Terminal, Key and Touch Operation, 7-inch Widescreen, Color, 8 Function Keys, ARM CPU, 10MB User Memory, 1 x RJ-45 Industrial Ethernet Interface Port (PROFINET, EtherNet/IP, MODBUS TCP/IP), 1 x USB Port, 800x480 TFT LCD with 65536 Colors, Configurable with WinCC Basic V13/ Step7 Basic V13, 24V DC Power.
Technical Specifications
| Brand | Siemens |
| Part Number | 6AV2123-2JB03-0AX0 |
| Category | HMI / MMI / OIT |
| Subcategory | Operator Interface |
| Designation | KTP900 Basic color PN |
| Display | TFT widescreen display |
| Backlighting | LED |
| Diameter | 9 in |
| Height | 111.7 mm |
| Width | 198 mm |
| Display colors | 65536 colors |
| Horizontal resolution | 800 Pixel |
| Vertical resolution | 480 Pixel |
| Keyboard | 8 Function keys |
| Mounting position | Vertical |
| Max incline | 35 ° |
| Supply voltage | DC |
| Rated voltage | 24 VDC |
| Memory | Flash/RAM |
| Interfaces | Ethernet, USB |
| Protocols | Profinet, EtherNet/IP |
| Protection Front | IP65 |
| Protection Rear | IP20 |
Information About 6AV2123-2JB03-0AX0
The Siemens SIMATIC HMI KTP900 6AV2125-2JB03-0AX0 is a mobile panel designed to give you unwavering access to your production processes through direct mobile operation and monitoring.
Design
It is expertly constructed with optimizing your industrial applications in mind. You can use this unit in a mounted position or a stationary position. The third option for use available with this unit is that you can use it while holding it right on your forearm. From the forearm position, you have the ability to operate all of the panel controls you normally would on the front panel display. This basic panel features a 9” display. As a safety precaution, you should always use the HMI panel on your forearm when you are working with potentially dangerous movements. You can use it with your hands if you are doing simple tasks such as data entry and you are not controlling movements that could be considered dangerous.
Features
The 6AV2125-2JB03-0AX0 mobile panel comes equipped with 10 function keys and 2 illuminated pushbutton keys. This panel is designed for use in an industrial setting and comes designed for the most rugged industrial settings. Being in the highest protection class, it is designed to resist impact. A safety feature you will find put in place is two bumpers placed for protection from unintended falls that may accidentally occur to your HMI device, especially from falls. It is also designed to resist industrial operating and cleaning substances. At the same time, you will find a safety measure taken to protect the E-stop and emergency button. The E-stop / stop button is in an enclosure for protection. WinCC software can be installed on this mobile panel which is a part of the engineering automation portal. Some of the technical specifications that may be of use to you are as follows. The active display area of the 6AV2125-2JB03-0AX0 is 154.1 x 85.9 mm with a resolution of 800 x 480 pixels, widescreen. The color depth is 16-bit, 24-bit. You can control the brightness of the unit by software. The backlighting is LED. The input for this device is a touch screen and analog resistive. It has a data memory of 512 MB and a program memory of 1024 MB.
Interface
What interfaces will you encounter with this module? It has two different interfaces. The first one is ethernet RJ45 with 10/100 Mbps and the second one is USB 2.0. The power supply via the connection box has a rated voltage of +24 V DC with the permitted voltage range of 19.2…28.8 V (24 V± 20%).
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
