6AV2123-2MB03-0AX0 | Siemens | Basic Panel
- Regular price
- $812.00
- Sale price
- $812.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6AV2123-2MB03-0AX0
Description

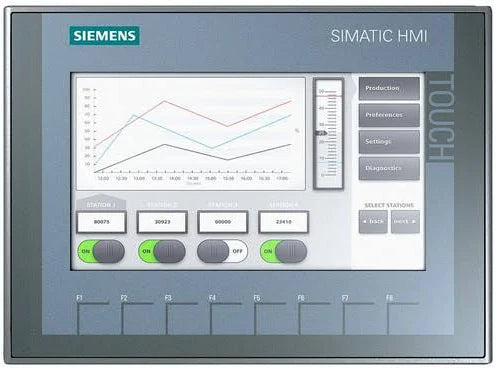

The Siemens 6AV2123-2MB03-0AX0 SIMATIC KTP1200 Basic Panel is a 12-inch operator interface terminal designed for industrial applications. It features both key and touch operation capabilities, providing users with flexible interaction options. The panel boasts a widescreen display with a resolution of 1280x800 pixels, capable of displaying 65536 colors for enhanced clarity and visibility. Equipped with 10 function keys, it offers quick access to commonly used functions.
The basic panel is powered by an ARM CPU and includes 10MB of user memory, ensuring efficient performance and storage capacity for operational data. It comes with connectivity options including 1 x RJ-45 industrial Ethernet interface port, compatible with PROFINET, EtherNet/IP, and MODBUS TCP/IP protocols, as well as 1 x USB port for data exchange and configuration.
Technical Specifications
Specifications
|
Part # |
6AV2123-2MB03-0AX0 |
|
Manufacturer |
SIEMENS |
|
Category |
HMI / MMI / OIT |
|
Subcategory |
Operator Interface SIMATIC HMI |
|
Series |
KTP1200 SERIES |
|
Type of Panel |
BASIC PANEL |
|
Operation Method |
KEY/TOUCH OPERATION |
|
Display Size |
12" TFT DISPLAY |
|
Number of Colors |
65536 COLORS |
|
Interface |
PROFINET INTERFACE |
|
Display Design |
TFT widescreen display, LED backlighting |
|
Screen Diagonal |
12 inches |
|
Display Width |
261.1 mm |
|
Display Height |
163.2 mm |
|
Resolution |
Horizontal: 1280 pixels |
|
Backlighting |
MTBF: 20,000 hours at 25°C |
|
Supply Voltage |
24 V DC |
|
Rated Voltage (DC) |
24 V |
|
Permissible Voltage Range |
Lower Limit: 19.2 V |
|
Current Consumption |
Rated Value: 510 mA |
|
Inrush Current |
0.2 A²·s |
|
Power Consumption |
Typical: 12.2 W |
Information About 6AV2123-2MB03-0AX0
The Siemens 6AV2123-2MB03-0AX0 SIMATIC KTP1200 Basic Panel is an operator interface terminal engineered for industrial applications. With a 12-inch widescreen TFT LCD display capable of displaying 65536 colors, it offers enhanced clarity and visibility for monitoring and control purposes. The panel features both key and touch operation functionalities, providing users with flexibility in interaction methods.
Equipped with 10 function keys, the panel allows for quick access to commonly used functions, streamlining operation and enhancing user efficiency. Powered by an ARM CPU, it ensures efficient performance and responsiveness in demanding industrial environments. Additionally, the panel includes 10MB of user memory, enabling storage and retrieval of operational data as required.
Connectivity options of the panel include 1 x RJ-45 industrial Ethernet interface port, supporting PROFINET, EtherNet/IP, and MODBUS TCP/IP protocols for seamless integration into industrial networks. Furthermore, it features 1 x USB port for data exchange and configuration, facilitating convenient connectivity with external devices.
Configurable with WinCC Basic V13 and Step7 Basic V13 software, the panel offers ease of customization and integration into existing automation systems. It operates on a 24V DC power supply, making it suitable for use in industrial environments where standard DC power sources are prevalent.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
