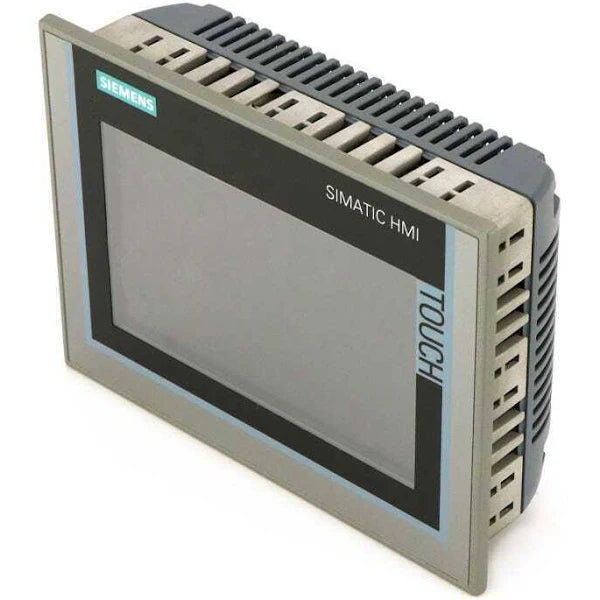

6AV2124-0GC01-0AX0 | SIEMENS SIMATIC TP700 Comfort Panel, 7-inch, Color, Touch
- Regular price
- $919.00
- Sale price
- $919.00
- Regular price
-
Do you need more quantity?
Product Description P/N: 6AV2124-0GC01-0AX0
Description
Siemens HMI comfort panel with touch-screen operation - Siemens (SIMATIC TP series) - SIMATIC HMI TP700 Comfort - Wide-screen 7" 800x480pixels (WVGA) TFT LCD 16.7M color display with LED backlight - 12MBytes (ROM) - Supply voltage 24Vdc - with Ethernet + Ethernet/IP + PROFINET + PROFINET IO + PROFIBUS DP + Modbus + RS-485 + RS-422 communication capability - Pre-installed Windows CE / x86 Processor - Portrait / Landscape flush mounting - with RJ45 connectors x 2 + D-Sub connector + USB 2.0 port + USB mini B port + SD card slots x 2 - IP65 - Rated for 0...+50°C ambient.
Technical Specifications
Brand | SIEMENS |
Part Number | 6AV2124-0GC01-0AX0 |
Display Colors | 16M Color |
Display Resolution | 800 x 480 Pixels |
Display Size | 7 in |
Display Type | TFT |
HMI Type | Touch Screen HMI |
IP Rating | IP65 |
Mounting Type | Panel Mount |
Number of Ports | 2 |
Series | SIMATIC HMI Comfort Series |
Supply Voltage | 24 VDC |
Technology | TFT LCD Display |
Information About 6AV2124-0GC01-0AX0
Siemens SIMATIC HMI Operator – Efficient Machine-level Operator Control and Monitoring: Equipment for monitoring and operator control is needed wherever people have to work with or on machinery and plants performing diverse tasks from cylinder driers to waste compactors. It is not difficult to find the right device for your specific task. The challenge is to find a solution that is future-proof and flexible, that can be integrated into higher-level networks, and that can also meet the ever-increasing demands for transparency and data provision. SIMATIC HMI Panels have proven their value in a variety of different applications in all industrial sectors over many years. The range of the systems in use is just as wide as that of the applications and technologies in the respective plants. With the SIMATIC WinCC (TIA Portal), SIMATIC WinCC and SIMATIC WinCC Open Architecture product families, SIMATIC HMI covers the entire engineering and visualization software spectrum for the human machine interface. SIMATIC HMI Unique Advantages: ? Visualization can be created more quickly and easily than ever before ? Visualization becomes the outstanding feature of the machine ? The right HMI operator panel for every application ? Protection for investments and know-how, secure operation ? Lose no time with testing and servicing Features: ? Almost the entire range of SIMATIC operator panels can be configured with SIMATIC WinCC (TIA Portal), the successor to SIMATIC WinCC flexible ? The functionality covers both visualization tasks at machine level and SCADA applications on PC-based multi-user systems ? The current version 7.4 of SIMATIC WinCC is available for extremely complex process visualization tasks and SCADA applications, e.g. taking account of redundant solutions and vertical integration all the way to plant intelligence solutions ? Ultimately, SIMATIC WinCC Open Architecture addresses applications that require extensive customer-specific adaptations or manage large and/or complex applications, as well as projects that demand special system requirements and functions
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
