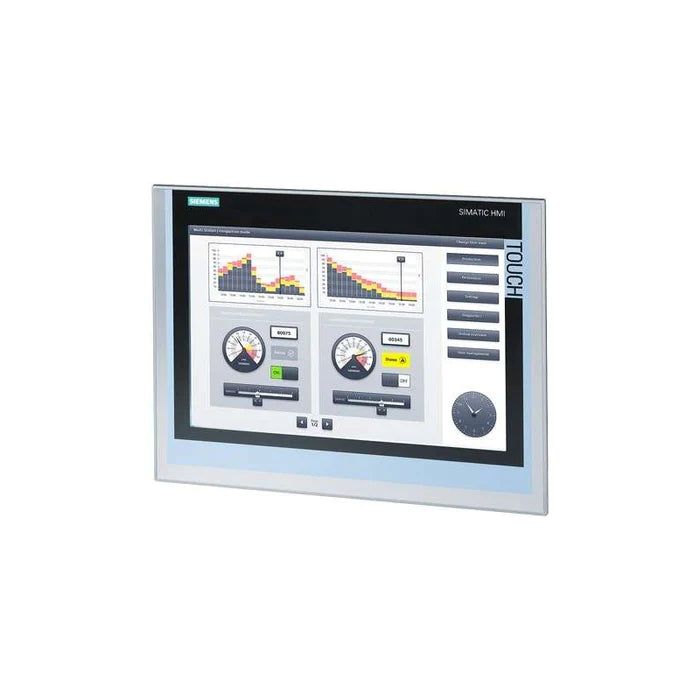

6AV2124-0QC02-0AX0 | Siemens SIMATIC TP1500 Comfort 15.4" Touch HMI Panel
- Regular price
- $4,013.75
- Sale price
- $4,013.75
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 6AV2124-0QC02-0AX0
Description
The Siemens 6AV2124-0QC02-0AX0 is a SIMATIC TP1500 Comfort Panel designed for high-performance operator interface and machine visualization. It features a 15.4-inch widescreen TFT touch display with enhanced graphics capabilities suitable for complex industrial HMI applications. With robust communication interfaces and advanced runtime functionality, it supports demanding automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | HMI Panel |
| Part Number | 6AV2124-0QC02-0AX0 |
| Subcategory | SIMATIC TP1500 Comfort |
| Display Type | TFT color display |
| Screen Size | 15.4 in (widescreen) |
| Resolution | 1280 × 800 pixels |
| Display Width | 331.2 mm |
| Display Height | 207 mm |
| Input Method | Touch screen |
| Rated Voltage | 24 V DC |
| Current Consumption | 1.5 A (typical) |
| Power Input | 36 W (typical) |
| Processor | X86 architecture |
| Memory Type | Flash / RAM |
| User Data Memory | 24 MB |
| Communication Ports | PROFINET, USB |
| Mounting Style | Panel mount |
| Operating Temperature | As per Comfort Panel standard (typically 0…50 °C) |
Information About 6AV2124-0QC02-0AX0
The 6AV2124-0QC02-0AX0 belongs to the Siemens SIMATIC HMI Basic Panel family, offering cost-effective operator interface solutions for small to mid-sized automation tasks. It provides a 12-inch widescreen TFT LCD display with 1280 × 800 resolution and support for 65,536 colors, ensuring clear and detailed process visualization. Equipped with both touchscreen and function keypad input, the panel offers flexibility in user interaction, even in harsh industrial conditions. Communication interfaces include PROFINET, MPI/PROFIBUS DP, and USB ports, allowing seamless integration with Siemens S7 controllers and other devices. Applications are created using TIA Portal with WinCC Basic, supporting alarms, trends, and recipe management. Its rugged panel-mounted design makes it well-suited for continuous industrial operation.
Key Features:
- Design: 12-inch widescreen HMI with both touch and keypad operation.
- Display: TFT LCD, 1280 × 800 resolution, 65k colors for sharp process visualization.
- Input Methods: Combination of touchscreen and programmable function keys.
- Connectivity: PROFINET, MPI/PROFIBUS DP, and USB interfaces.
- Software: Configured using Siemens TIA Portal (WinCC Basic).
- Functions: Supports alarms, recipes, trend curves, and user guidance.
- Installation: Rugged, panel-mounted construction for industrial environments.
- Application Range: Ideal for machine control, packaging, and process automation systems.
The 6AV2124-0QC02-0AX0 delivers the visualization, connectivity, and durability required for efficient operator interface in industrial automation.
