6AV2124-0XC02-0AX1 | Siemens Comfort Panel

Description

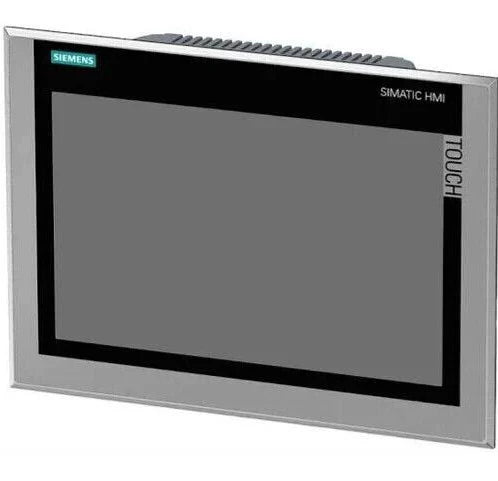

The 6AV2124-0XC02-0AX1, manufactured by Siemens, is a SIMATIC HMI TP2200 Comfort model, a touch panel designed for human-machine interface (HMI) applications. It features a 22-inch widescreen TFT display with a resolution of 1920x1080 pixels and supports 16 million colors, providing high-quality visuals for user interaction.

Equipped with a PROFINET interface and MPI/PROFIBUS DP interface, the panel ensures seamless integration with industrial automation systems. It comes with 24 MB of configuration memory and operates on the Windows Embedded Compact 2013 (WEC 2013) platform.

Technical Specifications

Information About 6AV2124-0XC02-0AX1

The 6AV2124-0XC02-0AX1, manufactured by Siemens, is an HMI (Human Machine Interface) touch panel belonging to the SIMATIC series. Specifically, it falls within the TP2200 Comfort product range. This touch panel features a 22-inch widescreen TFT display with a resolution of 1920x1080 pixels, providing clear and detailed visual feedback.

With support for touch operation, users can interact intuitively with the panel's interface. The display is capable of rendering 16 million colors, ensuring vivid and accurate representation of graphical elements.

The 6AV2124-0XC02-0AX1 is equipped with multiple interfaces, including PROFINET and MPI/PROFIBUS DP, enabling seamless integration with industrial automation systems. It boasts 24 MB of configuration memory, facilitating efficient storage and retrieval of settings and data.

Operating on the WEC 2013 (Windows Embedded Compact 2013) platform, this touch panel is configurable using WinCC Comfort V14 SP1 with HSP (Hardware Support Package). This configuration software provides users with tools and utilities for customizing the panel's functionality to suit specific application requirements.

Manufacturer information

Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
