6AV2125-2AE23-0AX0 | Siemens Advanced HMI Connection Box for Mobile Panels, PROFINET/PROFIsafe
- Regular price
- $566.00
- Sale price
- $566.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6AV2125-2AE23-0AX0
Description

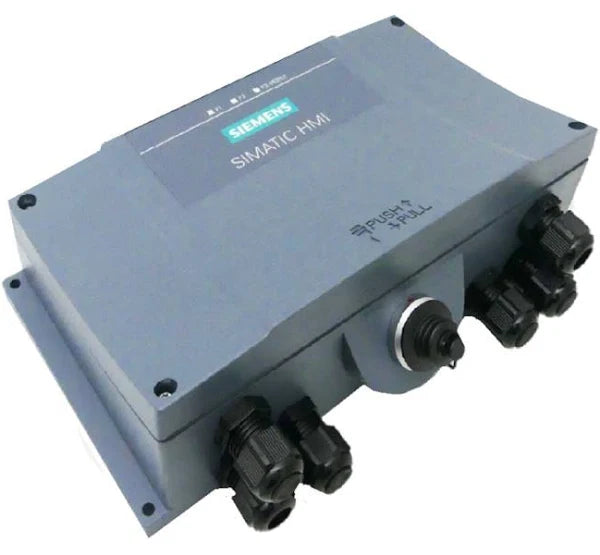

The Siemens 6AV2125-2AE23-0AX0 is a SIMATIC HMI Advanced Connection Box designed for use with Mobile Operator Panels. It provides interfaces for PROFINET and PROFIsafe communication, supporting safe and reliable operation of mobile HMI devices. With integrated features such as emergency stop circuit bridging, terminal detection, and an onboard switch, the unit enables secure and efficient connection between safety relays and mobile panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | PLCs/Machine Control |
| Part Number | 6AV2125-2AE23-0AX0 |
| Subcategory | PLC Software |
| Type | Advanced |
| Suitable For Use With | SIMATIC Mobile Panel / HMI Device |
| Supply Voltage | 24 VDC |
| Permissible Voltage Range | 19.2–28.8 VDC |
| Current Consumption | 95 mA |
| Design | Connection Box (Wall-Mount) |
| Protection Rating | IP65 |
| Material | Plastic |
| Operating Temperature (Min) | 0 °C |
| Operating Temperature (Max) | 55 °C |
| Dimensions | 145 mm H × 230 mm W × 76 mm D |
Information About 6AV2125-2AE23-0AX0
The 6AV2125-2AE23-0AX0 is part of the SIMATIC HMI system architecture and serves as an Advanced Connection Box for Siemens Mobile Panels. Its plastic housing supports wall mounting and provides IP65 protection, ensuring suitability for industrial environments requiring dust-tight and water-resistant components. The box includes PROFINET and PROFIsafe interfaces, enabling safe communication channels for emergency-stop functions and safety relay integration. Additional features such as an integrated Ethernet switch, MRP (Media Redundancy Protocol) client capability, and IRT (Isochronous Real-Time) support allow smooth integration into modern automation networks.
Key Features:
- PROFINET/PROFIsafe connectivity: Ensures safe communication between mobile panels and automation systems.
- Emergency stop circuit bridging: Supports connection of safety relays for compliant E-Stop functionality.
- Integrated Ethernet switch: Enables flexible network routing and simplified wiring.
- MRP client support: Enhances network redundancy and system reliability.
- IRT-capable design: Provides deterministic communication for time-critical applications.
- IP65 housing: Dust-tight, water-resistant enclosure suited for industrial mounting.
- Wide 24 VDC operating range: Accepts 19.2–28.8 VDC for stable performance in varied power conditions.
The 6AV2125-2AE23-0AX0 delivers the reliability and precision required for advanced HMI connectivity and safety integration.
