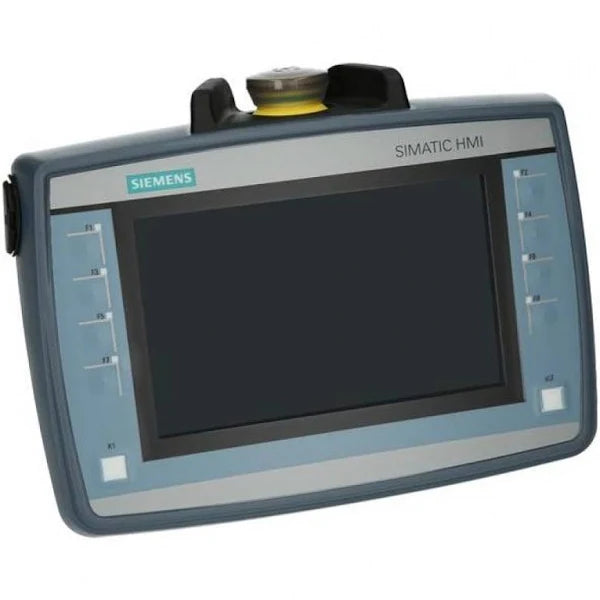

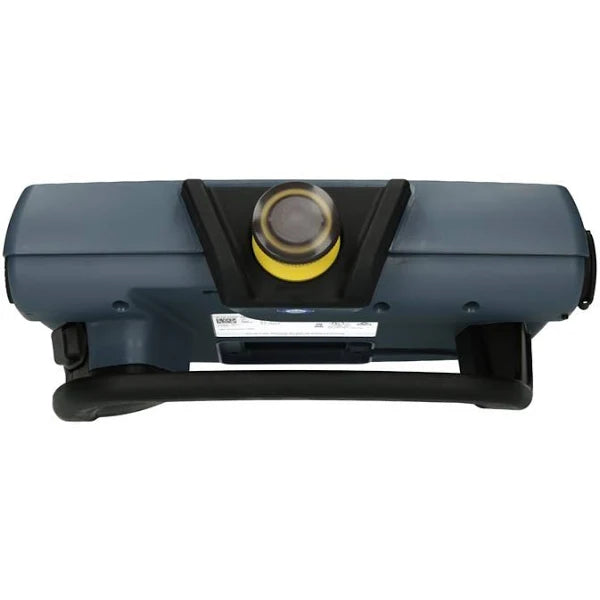

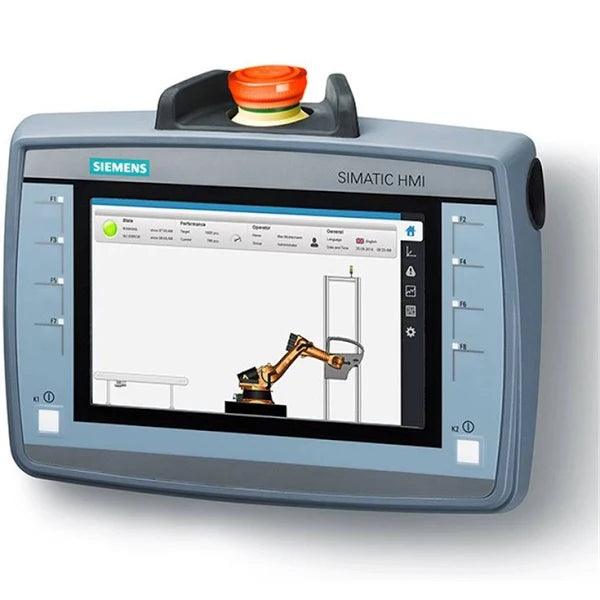

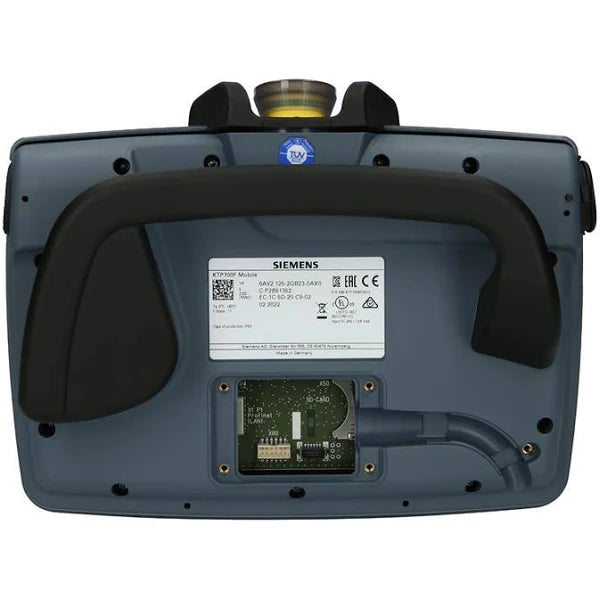

6AV2125-2GB23-0AX0 | Siemens SIMATIC KTP700F Mobile 7" Keypad/Touch Operator Panel With Emergency Stop & Profinet
- Regular price
- $2,155.00
- Sale price
- $2,155.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6AV2125-2GB23-0AX0
Description
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | HMI / MMI / OIT |
| Part Number | 6AV2125-2GB23-0AX0 |
| Subcategory | Operator Interface |
| Display Type | TFT Widescreen with LED Backlighting |
| Screen Size | 7 in |
| Color Display | Yes |
| Number of Colors | 16,777,216 |
| Resolution | 800×480 pixels |
| Backlighting | Dimmable (0–100%), MTBF 50,000 h |
| Function Keys | 8 Function Keys with LEDs |
| Touchscreen | Yes |
| Numeric Keyboard | Onscreen numeric input |
| Emergency Stop | Yes, illuminated and forced blocking |
| Acknowledgment Button | Yes, 3-stage |
| Direct Touch Buttons | 32 |
| Processor Type | ARM |
| Memory | 12 MB usable for user data |
| Supply Voltage | 24 V DC |
| Voltage Range | 19.2–28.8 V DC |
| Input Current | 350 mA |
| Inrush Current (I²t) | 0.135 A²·s |
| Active Power (Typical) | 8.5 W |
| Communication Ports | 1× PROFINET/Ethernet, 1× USB, 1× MMC Slot |
| Integrated Camera | No |
| Direct Keys | 8 (F1…F8) |
| Safety Functions | Emergency stop and acknowledgment inputs |
| Design Purpose | Mobile operator panel for industrial automation |
Information About 6AV2125-2GB23-0AX0
The 6AV2125-2GB23-0AX0 belongs to the SIMATIC KTP700F second-generation mobile operator panel family, designed for industrial applications requiring both touchscreen and tactile keypad inputs. Its 7-inch widescreen TFT display offers high-clarity visualization with over 16 million colors and dimmable LED backlighting for varied lighting conditions. The panel includes eight function keys, direct-touch buttons, numeric keypad options, and safety-focused controls such as an emergency stop button and a 3-stage acknowledgment switch. Supporting 24 V DC operation and network connectivity via PROFINET/Industrial Ethernet, it integrates seamlessly into Siemens automation architectures and is configured using WinCC Comfort V13 SP1.
Key Features:
- 7-inch TFT widescreen display: Provides 800×480 resolution and full-color visualization.
- Touchscreen and keypad input: Supports flexible operator interaction methods.
- Eight LED function keys: Enables quick access to critical functions.
- Integrated emergency stop: Illuminated and mechanically forced for safety compliance.
- 3-stage acknowledgment button: Enhances operator safety and status confirmation.
- PROFINET/Ethernet port: Supports industrial network communication.

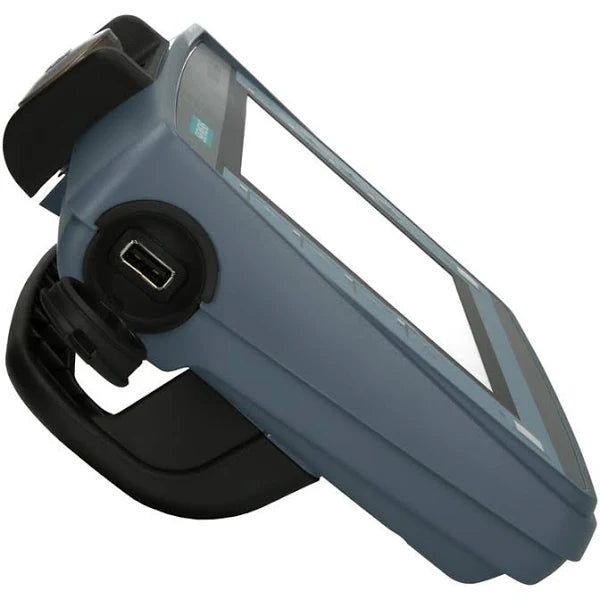

- USB and MMC slot: Allows data transfer, configuration, and storage expansion.
- 24 V DC supply: Compatible with industrial DC power systems.
- ARM processor architecture: Provides efficient performance for HMI tasks.
- 12 MB user memory: Supports application storage and runtime operation.
- LED backlighting: Dimmable with long service life rated at 50,000 hours.
- Direct-touch buttons: Includes 32 onscreen function areas for operator use.
The 6AV2125-2GB23-0AX0 delivers the reliability and precision required for mobile operator control in advanced industrial automation systems.
