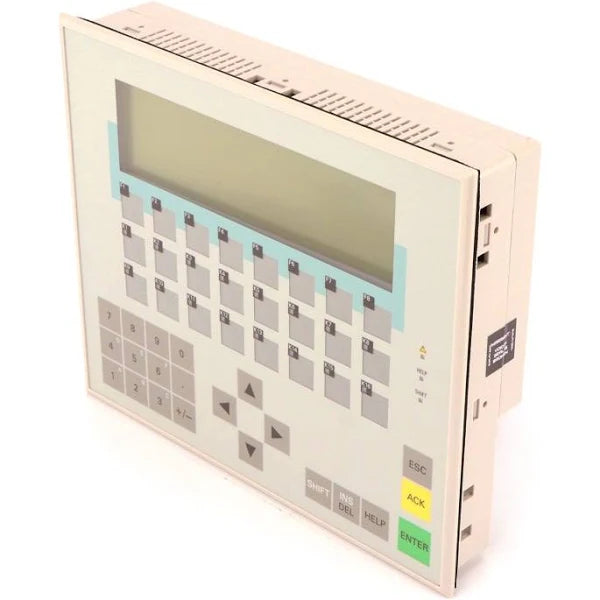

6AV3617-1JC20-0AX1 | Siemens | Operator Panel
6AV3617-1JC20-0AX1 | Siemens | Operator Panel

6AV3617-1JC20-0AX1 | Siemens | Operator Panel

Part #: 6AV3617-1JC20-0AX1 Manufactured by: Siemens
Regular price
$1,429.00
Sale price
$1,429.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Siemens 6AV3617-1JC20-0AX1 SIMATIC OP 17/DP Operator Panel is a critical component in industrial control systems. It f...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 6AV3617-1JC20-0AX1
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Siemens
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
6AV3617-1JC20-0AX1 | Siemens | Operator Panel
    6AV3617-1JC20-0AX1 | Siemens | Operator Panel
6AV3617-1JC20-0AX1 | Siemens | Operator Panel

Product Description P/N: 6AV3617-1JC20-0AX1

Description / Specifications

Description

The Siemens 6AV3617-1JC20-0AX1 SIMATIC OP 17/DP Operator Panel is designed for industrial control applications. It features a monochrome LCD display with pixel graphics, a keypad for user input, and operates on 24V DC power. The panel includes 1 x TTY/RS232 Interface Port and 1 x PROFIBUS-DP/PPI/MPI Interface Port, supporting baud rates up to 1.5 Mbaud. Equipped with backlit LED technology, the LC display ensures visibility in various lighting conditions. The panel is furnished with 24 function keys, 16 of which are outfitted with LEDs for status indication. Users can select between 4 x 20 or 8 x 40 character display formats. The device is compatible with SIMATIC S7/M7 systems and holds UL/CSA certification for safety standards compliance.



Technical Specifications





Part #

6AV3617-1JC20-0AX1

Manufacturer

SIEMENS

Category

HMI / MMI / OIT

Subcategory

Operator Interface OPERATOR PANEL

Model

OP 17/DP

Display

LCD

Backlight

LED BACKLIT

Display Format

4X20 / 8X40 LINES X CHARACTERS

Compatibility

SIMATIC S7 / M7

Communication Interface

PROFIBUS DP

Baud Rate

1.5 MBAUD

Memory

256KB

Power

24 VDC

Current

0.4 AMP



Information About 6AV3617-1JC20-0AX1



The Siemens 6AV3617-1JC20-0AX1 SIMATIC OP 17/DP Operator Panel is a fundamental component in industrial control systems. It features a monochrome LCD display capable of displaying pixel graphics. Operated via a keypad, it operates on 24V DC power supply. The panel is equipped with 1 x TTY/RS232 Interface Port and 1 x PROFIBUS-DP/PPI/MPI Interface Port, supporting communication speeds of up to 1.5 Mbaud.

Enhancing visibility and usability, the panel incorporates a backlit LED for improved display visibility, ensuring optimal performance even in low-light conditions. The LC display allows users to select between 4 x 20 or 8 x 40 character display formats, providing flexibility in information presentation.

For user interaction and control, the panel is outfitted with 24 function keys, 16 of which are equipped with LEDs to indicate operational status or input confirmation. The device supports SIMATIC S7/M7 systems, ensuring compatibility with Siemens' industrial automation solutions.





Manufacturer information

Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
