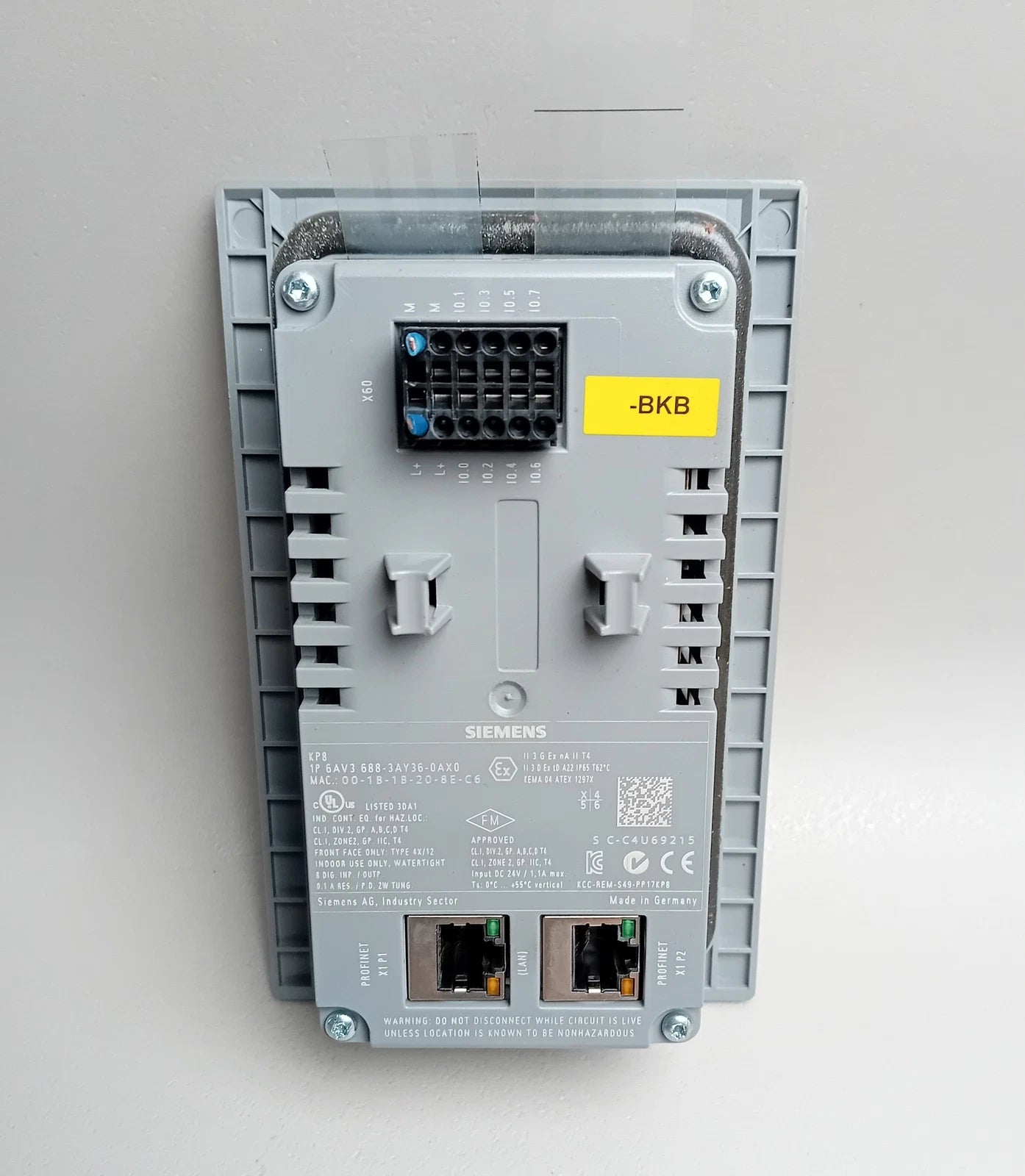

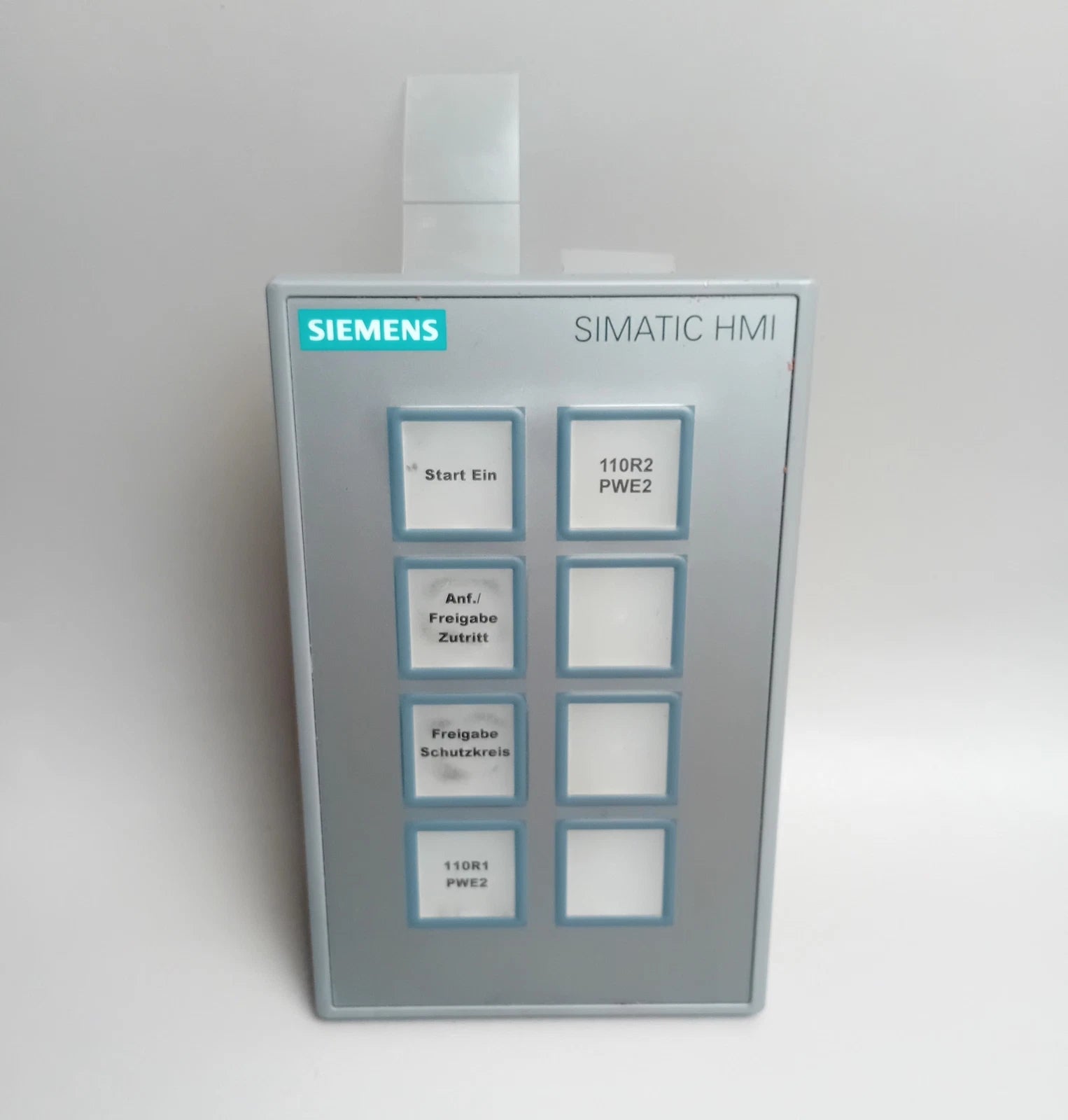

6AV3688-3AY36-0AX0 | Siemens SIMATIC HMI KP8 PN Key Panel with PROFINET and 8 Programmable Keys
- Regular price
- $552.00
- Sale price
- $552.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 6AV3688-3AY36-0AX0
Description
The Siemens 6AV3688-3AY36-0AX0 is a SIMATIC HMI KP8 PN key panel designed for operator control and machine interface applications in industrial automation systems. Featuring eight short-stroke programmable keys with multicolor LED indicators, the Siemens 6AV3688-3AY36-0AX0 enables intuitive machine operation and status visualization. With integrated PROFINET communication, the panel supports seamless integration into Siemens automation networks.
ย
ย
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Industrial Automation |
| Part Number | 6AV3688-3AY36-0AX0 |
| Subcategory | HMI Key Panels |
| Product Series | SIMATIC HMI |
| Model | KP8 PN |
| Power Supply | 24 V DC |
| Supply Voltage Range | 20.4 โ 28.8 V DC |
| Current Consumption | 0.3 A |
| Number of Keys | 8 Short-Stroke Pushbuttons |
| LED Indicators | Multicolor LEDs |
| Digital Inputs | 8 |
| Digital Outputs | 8 |
| Output Voltage | 24 V DC (Non-Isolated) |
| Max Output Current per Channel | 100 mA |
| Max Output Current per Group | 800 mA |
| Communication Interface | PROFINET |
| Industrial Ethernet Ports | 2 |
| Integrated Switch Ports | 2 |
| Operating Temperature Range | 0ยฐC to 55ยฐC |
| Weight | 0.6 kg |
ย
ย
Information About 6AV3688-3AY36-0AX0
The 6AV3688-3AY36-0AX0 is part of the Siemens SIMATIC HMI operator panel family designed for reliable machine control and operator interaction in industrial environments. This KP8 PN key panel provides eight programmable pushbuttons with integrated multicolor LEDs, allowing operators to control functions and monitor system states directly from the machine interface. The unit supports PROFINET communication and includes integrated Ethernet switch functionality for flexible network integration. With configurable digital inputs and outputs, the panel can interface directly with automation controllers, making it suitable for production lines, packaging systems, and machine control stations.
Key Features:
- SIMATIC HMI KP8 PN Panel: Industrial operator interface designed for machine and process control.
- Eight Programmable Keys: Short-stroke pushbuttons allow reliable and responsive operator input.
- Multicolor LED Indicators: Integrated LEDs provide clear visual feedback for machine status and alarms.
- PROFINET Communication: Enables fast and reliable integration with Siemens PLC and automation networks.
- Integrated Ethernet Switch: Two Ethernet ports support line or ring network topology without external switches.
- Configurable Digital I/O: Provides flexible integration with controllers using configurable digital inputs and outputs.
- 24V DC Power Supply: Standard industrial control voltage with loop-through capability for simplified wiring.
- Industrial Ethernet Diagnostics: Status LEDs per port support quick troubleshooting and network monitoring.
The 6AV3688-3AY36-0AX0 delivers the reliability and precision required for operator control and human-machine interaction in industrial automation systems.
