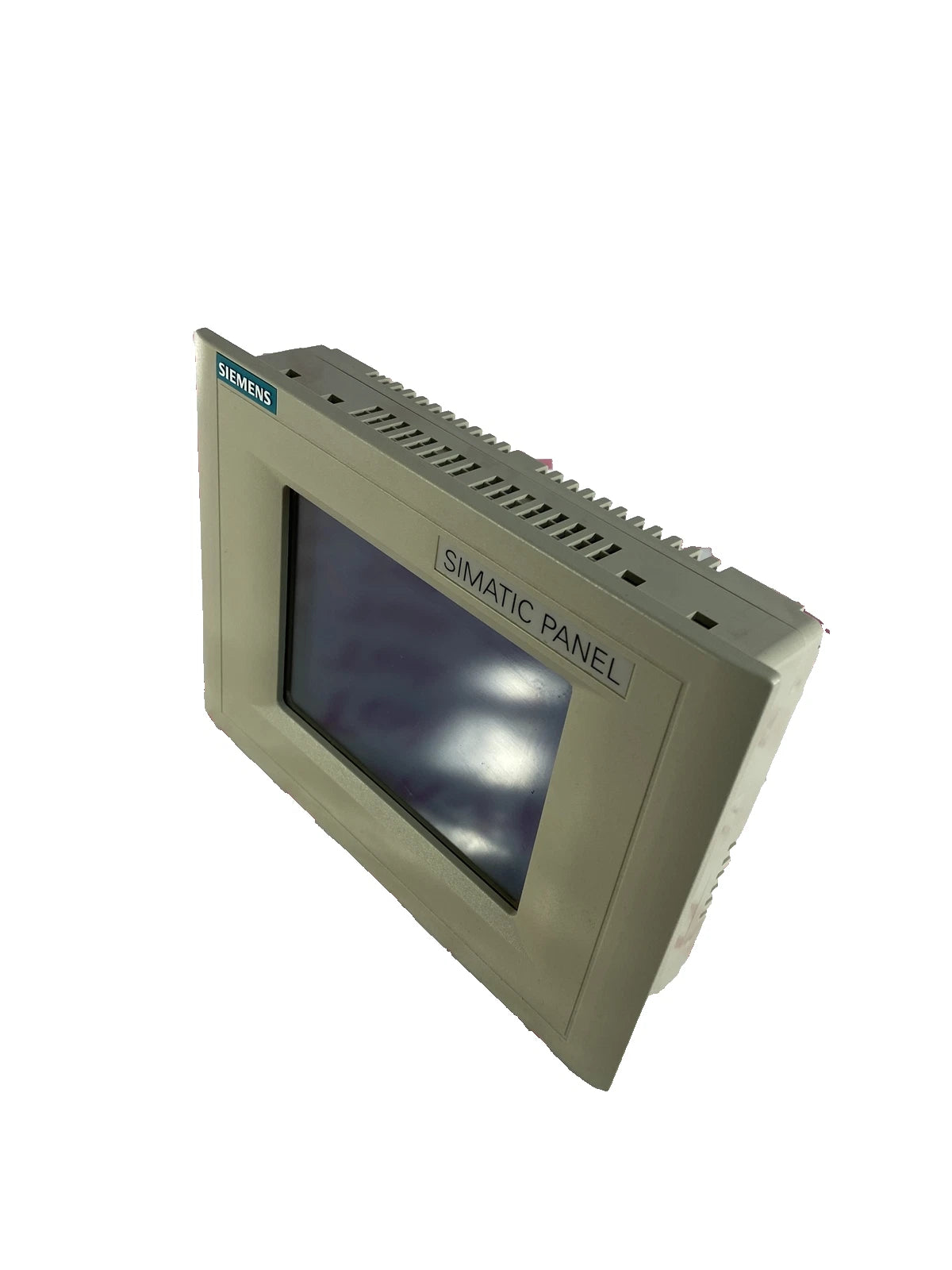

6AV6545-0AA15-2AX0 | Siemens SIMATIC TP070 5.7" HMI Touch Panel with STN Display
- Regular price
- $1,992.00
- Sale price
- $1,992.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 6AV6545-0AA15-2AX0
Description
The Siemens 6AV6545-0AA15-2AX0 is a SIMATIC TP070 touch panel designed to provide reliable operator interface control in industrial automation systems. Featuring a 5.7-inch STN display and resistive analog touchscreen, the Siemens 6AV6545-0AA15-2AX0 enables intuitive machine operation and process monitoring. Its compact design and durable construction make it suitable for installation in industrial control panels and machine interfaces.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Industrial Automation |
| Part Number | 6AV6545-0AA15-2AX0 |
| Subcategory | HMI Touch Panels |
| Product Series | SIMATIC TP070 |
| Display Type | STN Monochrome Display |
| Screen Size | 5.7 in |
| Display Resolution | 320 × 240 Pixels |
| Touch Technology | Analog Resistive Touchscreen |
| Operating System | Windows CE |
| Protection Rating (Front) | IP65 |
| Protection Rating (Rear) | IP20 |
| Memory | Flash / RAM |
| User Data Memory | 128 kB |
| Processor Type | 32-bit RISC |
| Operating Voltage | 24 V DC |
| Current Consumption | 0.24 A |
| Operating Temperature (Storage/Transport) | -20 °C to 60 °C |
| Relative Humidity (Max.) | 85 % |
| Dimensions (Front) | 212 × 156 mm |
| Weight | 0.7 kg |
Information About 6AV6545-0AA15-2AX0
The 6AV6545-0AA15-2AX0 belongs to the Siemens SIMATIC HMI Touch Panel series developed for operator interaction with PLC-controlled automation systems. The TP070 panel provides a graphical interface that allows operators to monitor processes, input commands, and display machine status information. It features a monochrome STN touchscreen with analog resistive technology, enabling reliable operation even in industrial environments where gloves may be used. The panel operates on Windows CE and can be configured using MicroWin or TP Designer software, making it suitable for integration with Siemens SIMATIC automation platforms.
Key Features:
- SIMATIC TP070 HMI Panel: Industrial operator interface designed for monitoring and controlling automated machines.
- 5.7-Inch STN Display: Monochrome display with 320 × 240 resolution provides clear process visualization.
- Resistive Analog Touchscreen: Durable touch technology supports accurate operator input in industrial environments.
- Windows CE Operating System: Embedded operating system supports stable and efficient HMI functionality.
- Industrial Protection Rating: IP65 protection at the front panel for resistance to dust and water ingress.
- Compact Panel Design: Space-efficient form factor allows installation in machine control cabinets and operator stations.
- Configuration Software Support: Compatible with MicroWin and TP Designer for flexible system configuration.
- Reliable Industrial Construction: Designed for long-term operation in demanding automation environments.
The 6AV6545-0AA15-2AX0 delivers the reliability and precision required for operator control and visualization in industrial automation systems.
