Part #: 6AV6545-0AG10-0AX0 Manufactured by: Siemens
Regular price
$1,519.00
Sale price
$1,519.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Siemens 6AV6545-0AG10-0AX0 SIMATIC MP270B MultiPanel is a 10.4-inch operator interface terminal designed for industria...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 6AV6545-0AG10-0AX0
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Siemens
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
6AV6545-0AG10-0AX0 | Siemens | MultiPanel
    6AV6545-0AG10-0AX0 | Siemens | MultiPanel
6AV6545-0AG10-0AX0 | Siemens | MultiPanel

Product Description P/N: 6AV6545-0AG10-0AX0

Description / Specifications

Description

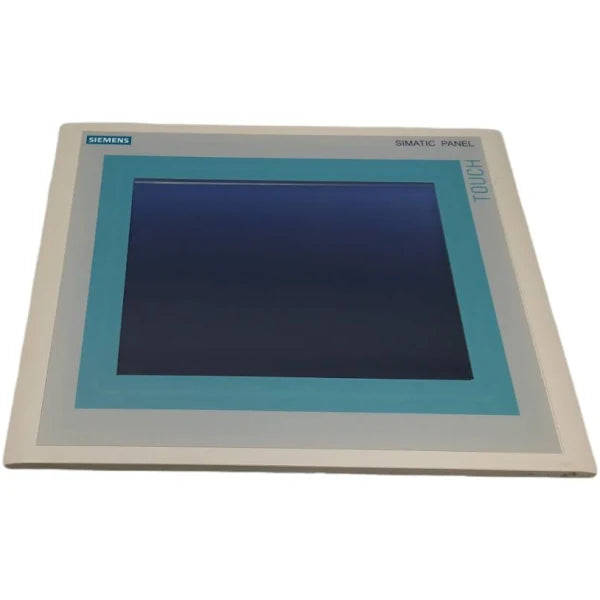

The Siemens 6AV6545-0AG10-0AX0 SIMATIC MP270B MultiPanel is an operator interface terminal designed for industrial applications. It features a 10.4-inch color touchscreen display with a resolution of 640x480 pixels and supports 256 colors. The MultiPanel is powered by a 32-bit RISC CPU and includes 4MB of configuring memory for storing user-defined settings and configurations.

Connectivity options include 1 x RS-422/485 interface port (MPI/DP/PPI) for communication with Siemens PLCs, 1 x RS-232 interface port (9-pin) for connection to PLCs, 1 x RS-232 interface port for connection to PCs or printers, and 1 x 10/100 Mbps RJ-45 Ethernet port for network communication. Additionally, the MultiPanel features 1 x CF Flash slot, 1 x PC Card slot, and 1 x USB port for data storage and transfer.



Technical Specifications



Manufacturer

Siemens

Type

HMIs

Model #

6AV65450AG100AX0

Range

SIMATIC MP 270B

Category

Touch Multi Panel

Screen diagonal

10.4 in

Display

TFT, 256 colors

Pixels

640 Pixel (H) 480 Pixel (V)

Control Elements

Touch screen

MTBF backlighting

50,000 h

Connection

USB

Mounting

Vertical 35°

Input current

0.9 A

Power rating

22 W

Processor

RISC 32-bit

Memory

Flash / RAM

Memory data

4,096 kbyte

Interfaces/bus type

2 x RS232, 1 x RS422, 1 x RS485, 1 x Ethernet (RJ45) (max. 12 Mbit/s)

Protection

IP65 (front) IP20(rear)





Information About 6AV6545-0AG10-0AX0



The Siemens 6AV6545-0AG10-0AX0 SIMATIC MP270B MultiPanel is an operator interface terminal designed for industrial applications. Featuring a 10.4-inch color touchscreen display, it provides users with an intuitive interface for monitoring and controlling processes. The MultiPanel is equipped with a 32-bit RISC CPU for efficient performance and responsive operation.

With 4MB of configuring memory, the MultiPanel allows users to store configurations and settings for easy access and modification. It includes multiple interface ports for versatile connectivity, including 1 x RS-422/485 Interface Port for MPI/DP/PPI communication, 1 x RS-232 (9-pin) Interface Port for PLC connectivity, and 1 x RS-232 Interface Port for PC/Printer communication.

Additionally, the MultiPanel features a 10/100 Mbps RJ-45 Ethernet Port for network connectivity, enabling seamless integration into industrial networks. It also includes a CF Flash Slot, a PC Card Slot, and a USB Port for data storage and transfer, expanding its functionality and versatility.

The MultiPanel's display boasts a resolution of 640x480 pixels and supports 256 colors, providing clear and vibrant visuals for enhanced visibility and readability. Operating on the Windows CE Operating System, it offers stability and compatibility with a wide range of industrial applications.

Configurable with ProTool from version 6.0 with Service Pack 3 and higher, the MultiPanel allows users to customize its functionality to suit specific application requirements. Its compatibility with ProTool simplifies configuration and programming tasks, enhancing user efficiency and productivity.

The MultiPanel operates on a 24V DC power supply, making it suitable for use in industrial environments where standard power sources are prevalent. Its robust construction and IP65-rated front protection ensure durability and reliability in harsh operating conditions.
