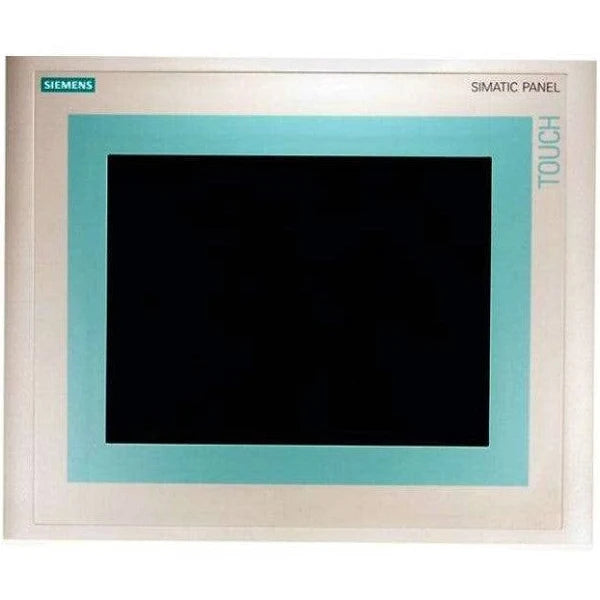

6AV6545-0CC10-0AX0 | Siemens 10.4" color SIMATIC TP 270 touchscreen operator interface terminal
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6AV6545-0CC10-0AX0
Description
The Siemens 6AV6545-0CC10-0AX0 is a SIMATIC TP 270 operator interface terminal designed for industrial machine control and system monitoring. It features a 10.4-inch color STN touchscreen with a 640 × 480 resolution and supports multiple communication interfaces including RS-422/485, RS-232, USB, and CF card expansion. Operating on 24V DC power, this HMI runs on Windows CE and is configurable using ProTool version 6.0 or higher.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | HMI / MMI / OIT |
| Part Number | 6AV6545-0CC10-0AX0 |
| Subcategory | Operator Interface |
| Type | HMIs |
| Display Type | STN, 256 colors |
| Screen Size | 10.4 in. diagonal |
| Resolution | 640 × 480 |
| Backlight Life | 60,000 hr |
| Control Input | Touchscreen |
| Processor Type | 32-bit RISC |
| Memory Type | Flash / RAM |
| Rated Current Consumption | 0.9 A |
| Active Power Input | 15 W (typ.) |
| Power Supply | 24V DC |
| Interface Ports | RS-422/485 (MPI/DP/PPI), RS-232 PLC port, RS-232 PC/printer port, USB |
| Expansion Slot | CompactFlash (CF) |
| Operating System | Windows CE |
| Configuration Software | ProTool v6.0 or higher |
| Color Type | 256 colors (STN) |
| Product Type | SIMATIC TP 270 10" Touch Panel |
Information About 6AV6545-0CC10-0AX0
The 6AV6545-0CC10-0AX0 is part of the Siemens SIMATIC TP 270 series, known for reliable operator interface solutions within the SIMATIC HMI family. It combines a 32-bit RISC processor, STN color display, and integrated communication ports to support a broad range of automation systems. The unit includes interfaces for MPI/DP/PPI networks, PLC connections, PC/printer communication, and a compact flash slot for data storage. Typical applications include machine operation, diagnostics, and process visualization across manufacturing and process-control environments.
Key Features:
- 10.4-inch color display: STN panel with 256 colors for clear visualization.
- 640 × 480 resolution: Provides detailed process graphics and system status information.
- Multiple communication ports: RS-422/485 (MPI/DP/PPI), RS-232 PLC port, RS-232 PC/printer port, USB, and CF card slot.
- Touchscreen operation: Enables direct interaction for navigation, control, and system acknowledgment.
- RISC 32-bit processor: Ensures stable performance for HMI applications.
- Long-life backlight: Rated for 60,000 operating hours.
- Configurable via ProTool: Supports ProTool v6.0 and newer for project development.
- 24V DC power input: Suitable for panel and machine-level installation.
The 6AV6545-0CC10-0AX0 delivers the reliability and precision required for industrial operator interface terminals.
