6AV6642-0DA01-1AX1 | Siemens | Operator Panel
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Do you need more quantity?
Product Description P/N: 6AV6642-0DA01-1AX1
Description

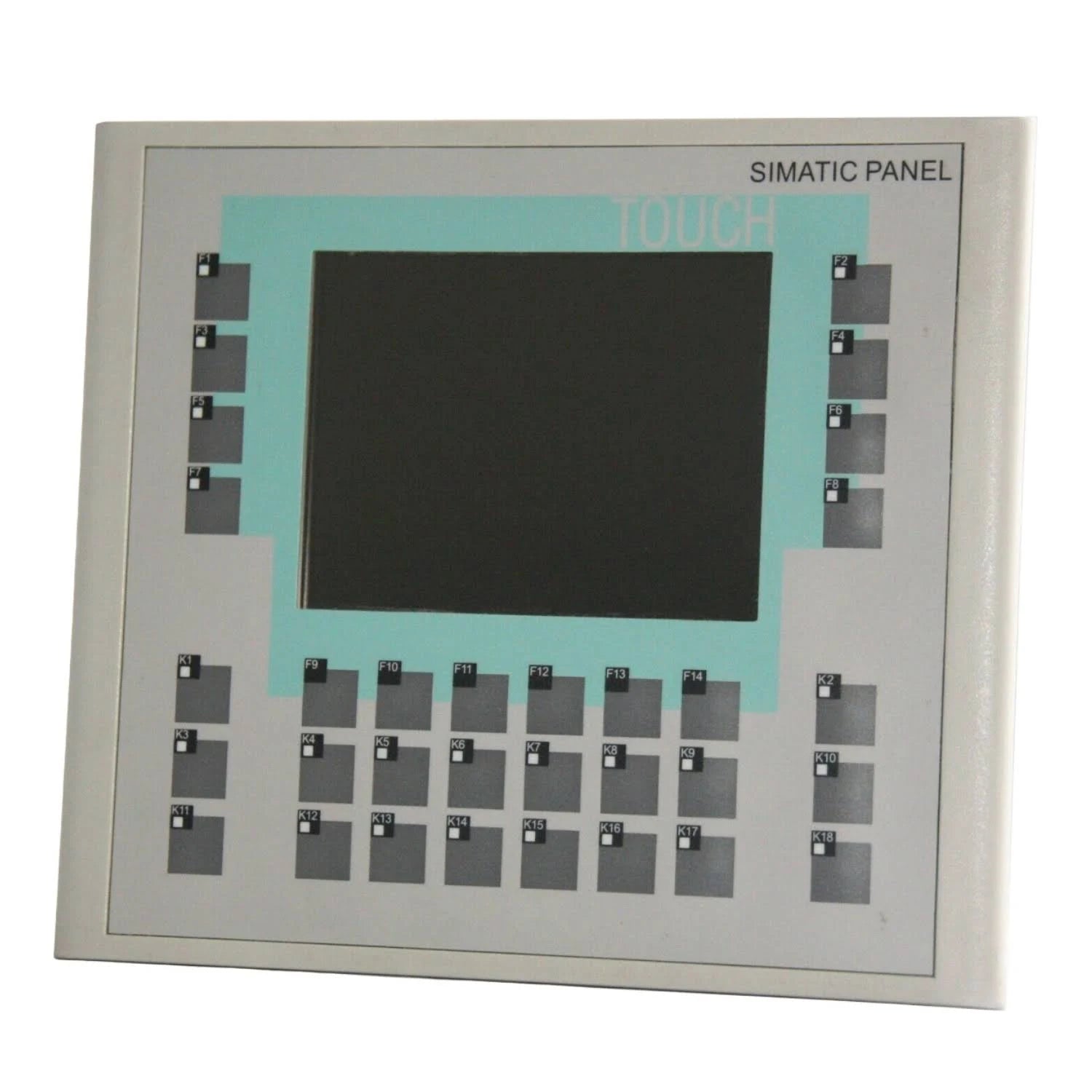

The Siemens 6AV6642-0DA01-1AX1 SIMATIC OP177B PN/DP is an operator panel designed for industrial control applications. Featuring a 5.7-inch color touchscreen and keypad, this panel serves as an operator interface terminal within automation systems.
Additionally, the operator panel features 32 function keys, out of which 26 are equipped with LEDs for status indication.
The Siemens 6AV6642-0DA01-1AX1 SIMATIC OP177B PN/DP is engineered to provide intuitive control and monitoring capabilities in industrial environments, enabling seamless integration with automation systems and facilitating efficient operation and configuration through its comprehensive interface and features.
Technical Specifications
Part # |
6AV6642-0DA01-1AX1 |
Manufacturer |
SIEMENS |
Category |
HMI / MMI / OIT |
Subcategory |
Operator Interface Communication Ports |
Communication Ports |
1 x RS485, 1 x RS422, 1 x USB, 1 x RJ45 Industrial Ethernet |
Dimensions |
212 mm H x 243 mm W |
Display Resolution |
320 x 240 |
Display Size |
6 |
Display Type |
STN |
Memory |
2048 |
Number of Keys |
32 |
Power Source |
24 VDC, 0.24 A |
Series |
OP177B PN/DP |
Software |
Windows CE, WinCC Flexible Compact, WinCC Flexible Standard, WinCC Flexible Advanced, WinCC Comfort (TIA Portal), WinCC Advanced (TIA Portal), WinCC Professional (TIA Portal) |
Temperature Rating |
-20 to 60 |
Viewing Area |
120 mm H x 90 mm W |
Information About 6AV6642-0DA01-1AX1
The Siemens 6AV6642-0DA01-1AX1 SIMATIC OP177B PN/DP Operator Panel is a critical component designed for industrial control systems. Operating under the part number 6AV6 642-0DA01-1AX1, it serves as an operator interface terminal, facilitating efficient interaction with automation processes.
The operator panel's 5.7-inch color touchscreen and keypad provide a user-friendly interface for operators to monitor and control industrial processes. The ARM CPU operating at 200MHz ensures efficient performance, while the 2MB configuring memory facilitates storage and retrieval of essential data and configurations.
The inclusion of interface ports such as RS-422/485, Multi Media Card Slot, RJ-45 Ethernet (PROFINET), and USB enhances connectivity options, enabling seamless integration with various industrial devices and networks.
The operator panel's 32 function keys, a majority equipped with LEDs, enable operators to execute commands and monitor system status effectively. The 320x240 STN LCD display with 256 colors ensures clear visualization of data and system parameters.
Operating on the Windows CE platform, the operator panel is configurable with WinCC Flexible 2005 Compact Version and higher software, providing flexibility in customization and integration with existing automation setups.
With a power supply requirement of 24V DC, the Siemens 6AV6642-0DA01-1AX1 SIMATIC OP177B PN/DP Operator Panel is optimized for industrial environments, offering reliable operation and seamless interaction with automation processes.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
