Part #: 6AV6643-0BA01-1AX0 Manufactured by: Siemens

6AV6643-0BA01-1AX0 | Siemens | Operator Panel

Regular price
$1,259.00
Sale price
$1,259.00
Regular price
Never Used Surplus
1 in Stock
Product Overview
The Siemens 6AV6643-0BA01-1AX0 SIMATIC OP277 Operator Panel is a versatile operator interface terminal designed for indust...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 6AV6643-0BA01-1AX0
IQElectro International provides a 2-year warranty on every product we offer. Our complimentary 2-year warranty ensures that every IQElectro purchase is a trustworthy and reliable investment in the future of your company.
IQElectro is NOT an authorized distributor for Siemens
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
6AV6643-0BA01-1AX0 | Siemens | Operator Panel
    6AV6643-0BA01-1AX0 | Siemens | Operator Panel
6AV6643-0BA01-1AX0 | Siemens | Operator Panel
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3-Day Free Shipping
"IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 6AV6643-0BA01-1AX0

Description / Specifications

Description

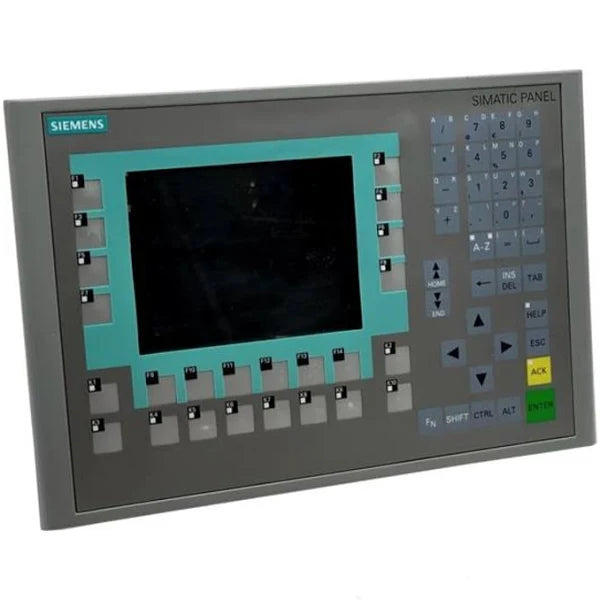

The Siemens 6AV6643-0BA01-1AX0 SIMATIC OP277 Operator Panel is an advanced operator interface terminal designed for industrial automation applications. Featuring a 5.7-inch color TFT LCD display with a resolution of 320x240 pixels and support for 256 colors, it provides clear and vibrant visual feedback to operators.

Powered by a RISC 32-bit CPU, this operator panel ensures efficient processing of control commands and data. It is equipped with 4MB of configuring memory, enabling the storage and retrieval of essential configuration data.

The panel offers versatile connectivity options, including 1 x 12 Mbit/s RS-422/485 interface port (MPI/DP/PPI) with support for third-party PLCs, 1 x 10/100 Mbit/s RJ-45 Ethernet port (IE/PROFINET), 1 x Multi Media Card slot, and 1 x USB port. These connectivity features facilitate seamless integration with various industrial networks and devices.



Technical Specifications



Specifications



Part Number

6AV6643-0BA01-1AX0

Manufacturer

SIEMENS

Category

HMI / MMI / OIT

Subcategory

Operator Interface SIMOTIC OP 277

Display Size

6"

Display Type

5.7" TFT LCD

Configuration Memory

4 MB

Input Voltage

24 VDC

Software Compatibility

WinCC Flexible 2005 Standard SP1





Information About 6AV6643-0BA01-1AX0




The Siemens 6AV6643-0BA01-1AX0 SIMATIC OP277 Operator Panel is an operator interface terminal featuring a 5.7-inch color TFT LCD display with a resolution of 320x240 pixels and support for 256 colors. It is equipped with a RISC 32-bit CPU and 4MB of configuring memory.

This operator panel includes various interface ports for connectivity. It features one RS-422/485 interface port with a data transmission rate of 12 Mbit/s, supporting MPI/DP/PPI protocols and compatible with third-party PLCs. Additionally, it has one 10/100 Mbit/s RJ-45 Ethernet port for IE/PROFINET communication. The panel also provides one Multi Media Card slot and one USB port for additional data storage and connectivity options.

Equipped with 24 function keys, including 18 with LEDs, the operator panel offers enhanced user interaction and control. It operates on the Windows CE operating system and is configurable using WinCC Flexible Standard 2005 SP1 and higher versions.
