6AV6647-0AD11-3AX0 | SIEMENS SIMATIC KTP600 PN Basic Panel 6-in, Color, Ethernet
6AV6647-0AD11-3AX0 | SIEMENS SIMATIC KTP600 PN Basic Panel 6-in, Color, Ethernet

6AV6647-0AD11-3AX0 | SIEMENS SIMATIC KTP600 PN Basic Panel 6-in, Color, Ethernet

Part #: 6AV6647-0AD11-3AX0 Manufactured by: SIEMENS
Regular price
$842.00
Sale price
$842.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
HMI basic panel (1st gen.) with keypad (6 keys) + touch-screen operation - Siemens (SIMATIC KTP series) - SIMATIC HMI KTP6...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 6AV6647-0AD11-3AX0
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for SIEMENS
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
6AV6647-0AD11-3AX0 | SIEMENS SIMATIC KTP600 PN Basic Panel 6-in, Color, Ethernet
    6AV6647-0AD11-3AX0 | SIEMENS SIMATIC KTP600 PN Basic Panel 6-in, Color, Ethernet
6AV6647-0AD11-3AX0 | SIEMENS SIMATIC KTP600 PN Basic Panel 6-in, Color, Ethernet

Product Description P/N: 6AV6647-0AD11-3AX0

Description / Specifications

Description

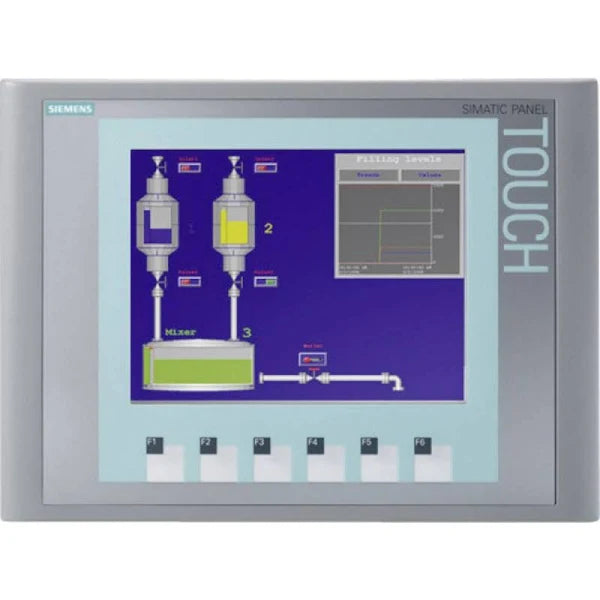

Siemens 6AV6 647-0AD11-3AX0 SIMATIC KTP 600 PN Basic Panel, Operator Interface Terminal, 5.7-inch, Color, Keypad and Touchscreen, RISC 32-Bit ARM CPU, 512KB Configuring Memory, 1 x 10/100 Mbit/s RJ-45 Ethernet Interface Port (IE/EIP/PROFINET/MODBUS), 320x240 TFT LCD with 256 Colors, 6 Function Keys, contains Open Source Software, configurable with WinCC Flexible Compact SP2 Version 2008 and higher or WinCC Basic Version v10.5 and higher or STEP 7 Basic v10.5 and higher, 24V DC Power.



Technical Specifications



Brand SIEMENS
Part Number 6AV6647-0AD11-3AX0
Category HMI / MMI / OIT
Subcategory Operator Interface
Type HMI
Series KTP600
Display Type TFT
Display Size 86.4 mm H x 115.2 mm W
Number Of Keys 6
Communication Ports Ethernet
Display Resolution 320 x 240 pixel
Memory 1 MB
Temperature Rating 0 to 50 deg C
Material Plastic
Dimensions 158 mm H x 214 mm W x 44 mm D





Information About 6AV6647-0AD11-3AX0

6AV6647-0AD11-3AX0 SIMATIC HMI KTP600 Basic Color PN, Basic Panel, Key/touch operation, 6" TFT display, 256 colors, PROFINET interface, configurable as of WinCC flexible 2008 SP2 Compact/ WinCC BasicV10.5/ STEP 7 Basic V10.5, contains open-source software, which is provided free of charge see enclosed CD

The visualization of Siemens KTP600 Basic allows considerably increased process quality with compact plants or smaller applications. Featuring all important HMI basic functions, SIMATIC HMI Basic Panels Generation thus opens up completely new possibilities in terms of operation and monitoring in the field of mechanical engineering at a beautiful price. Besides, These also support vertical configuration. Their high resolution and color depth of 64,000 colors facilitate improved process visualization. The displays’ brightness is dimmable up to 100 %, offering optimum flexibility.

FEATURES
5.7 in screen
256-colors
Configurable from WINCC flexible 2008 SP2 compact/WINCC BASIC V10.5/STEP7 BASIC V10.5
24 VDC supply voltage
0.35 A current consumption
9 W active power input
RISC 32-bit processor
IP65/IP20 degree of protection
Contains open source software which is provided free of charge
Key and touch operation
-30 to 60 deg C storage temperature
90% no condensation maximum relative humidity



    Manufacturer information


    Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.

    IQElectro is not an authorized distributor.
    QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
    Description / Specifications

    Description

    Siemens 6AV6 647-0AD11-3AX0 SIMATIC KTP 600 PN Basic Panel, Operator Interface Terminal, 5.7-inch, Color, Keypad and Touchscreen, RISC 32-Bit ARM CPU, 512KB Configuring Memory, 1 x 10/100 Mbit/s RJ-45 Ethernet Interface Port (IE/EIP/PROFINET/MODBUS), 320x240 TFT LCD with 256 Colors, 6 Function Keys, contains Open Source Software, configurable with WinCC Flexible Compact SP2 Version 2008 and higher or WinCC Basic Version v10.5 and higher or STEP 7 Basic v10.5 and higher, 24V DC Power.



    Technical Specifications



    Brand SIEMENS
    Part Number 6AV6647-0AD11-3AX0
    Category HMI / MMI / OIT
    Subcategory Operator Interface
    Type HMI
    Series KTP600
    Display Type TFT
    Display Size 86.4 mm H x 115.2 mm W
    Number Of Keys 6
    Communication Ports Ethernet
    Display Resolution 320 x 240 pixel
    Memory 1 MB
    Temperature Rating 0 to 50 deg C
    Material Plastic
    Dimensions 158 mm H x 214 mm W x 44 mm D





    Information About 6AV6647-0AD11-3AX0

    6AV6647-0AD11-3AX0 SIMATIC HMI KTP600 Basic Color PN, Basic Panel, Key/touch operation, 6" TFT display, 256 colors, PROFINET interface, configurable as of WinCC flexible 2008 SP2 Compact/ WinCC BasicV10.5/ STEP 7 Basic V10.5, contains open-source software, which is provided free of charge see enclosed CD

    The visualization of Siemens KTP600 Basic allows considerably increased process quality with compact plants or smaller applications. Featuring all important HMI basic functions, SIMATIC HMI Basic Panels Generation thus opens up completely new possibilities in terms of operation and monitoring in the field of mechanical engineering at a beautiful price. Besides, These also support vertical configuration. Their high resolution and color depth of 64,000 colors facilitate improved process visualization. The displays’ brightness is dimmable up to 100 %, offering optimum flexibility.

    FEATURES
    5.7 in screen
    256-colors
    Configurable from WINCC flexible 2008 SP2 compact/WINCC BASIC V10.5/STEP7 BASIC V10.5
    24 VDC supply voltage
    0.35 A current consumption
    9 W active power input
    RISC 32-bit processor
    IP65/IP20 degree of protection
    Contains open source software which is provided free of charge
    Key and touch operation
    -30 to 60 deg C storage temperature
    90% no condensation maximum relative humidity



      Manufacturer information


      Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
