6BK1620-0AA00-0AA0 | Siemens SIMATIC PN/CAN Link Module, PROFINET to CAN Gateway, 24VDC, IP20
- Regular price
- $717.00
- Sale price
- $717.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6BK1620-0AA00-0AA0
Description

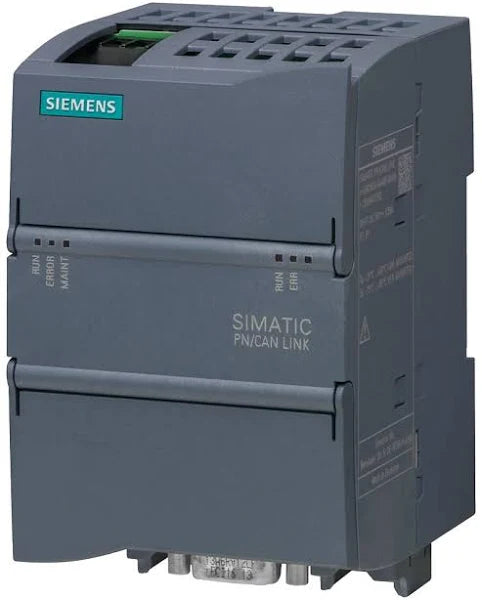

The Siemens 6BK1620-0AA00-0AA0 is a SIMATIC PN/CAN Link module designed to bridge PROFINET IO networks with CAN and CANopen systems. It supports 24VDC operation and offers two RJ45 Ethernet ports plus a 9-pin D-Sub CAN interface for flexible field integration. Engineered for industrial communication environments, it delivers high-speed 100 Mbps PROFINET connectivity with support for up to 126 CAN slave devices.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | PLCs / Machine Control |
| Part Number | 6BK1620-0AA00-0AA0 |
| Subcategory | Network Coupling / Brick PLC Module |
| Series | SIMATIC |
| Type | PN/CAN Link – PROFINET to CAN Gateway |
| Supply Voltage | 24 VDC |
| Protocols Supported | PROFINET IO, CAN, CANopen |
| Ethernet Ports | 2 × RJ45 (10/100 Mbps) |
| CAN Interface | 1 × 9-pin D-Sub |
| Data Transfer Rate | 100 Mbps (PROFINET) |
| CAN Device Capacity | Up to 126 CAN slaves |
| Enclosure Rating | IP20 |
| Width | 70 mm |
| Operating Temperature | –25°C to +60°C |
| Mounting Type | DIN-rail / panel (system dependent) |
| Terminal Type | Pluggable connectors |
Information About 6BK1620-0AA00-0AA0
The 6BK1620-0AA00-0AA0 is part of the Siemens SIMATIC communication family, designed as a network transition module to integrate PROFINET IO controllers with CAN or CANopen field-level equipment. Its construction includes a compact 70 mm-wide housing with IP20 protection, dual Ethernet ports for line or star topology, and a 9-pin CAN interface for high-density device networks. The module supports operation in harsh environments with an ambient temperature range of –25°C to +60°C, making it suitable for distributed automation, machine tools, and process equipment. Typical applications include mixed-protocol architectures, gateway installations, and modernization projects where PROFINET supervisory control must interface with CAN-based devices.
Key Features:
- PROFINET-to-CAN link: Enables communication between PROFINET IO networks and CAN/CANopen devices.
- Supports up to 126 CAN slaves: Designed for high-density CAN installations.
- Two integrated RJ45 ports: Allows 100 Mbps Ethernet networking in line, ring, or star topologies.
- 9-pin D-Sub CAN interface: Standard CAN/CANopen connection for field devices.
- 24 VDC supply voltage: Fits common industrial control power systems.
- Compact 70 mm housing: Saves panel space in distributed I/O and gateway applications.
- IP20 rated: Suitable for installation inside protected industrial enclosures.
- Wide temperature tolerance: Operates reliably from –25°C to +60°C.
- SIMATIC integration: Fully compatible with Siemens automation architectures.
- High-speed communication: Delivers 100 Mbps PROFINET IO data throughput.
The 6BK1620-0AA00-0AA0 delivers the reliability and precision required for seamless gateway communication between PROFINET and CAN-based automation systems.
