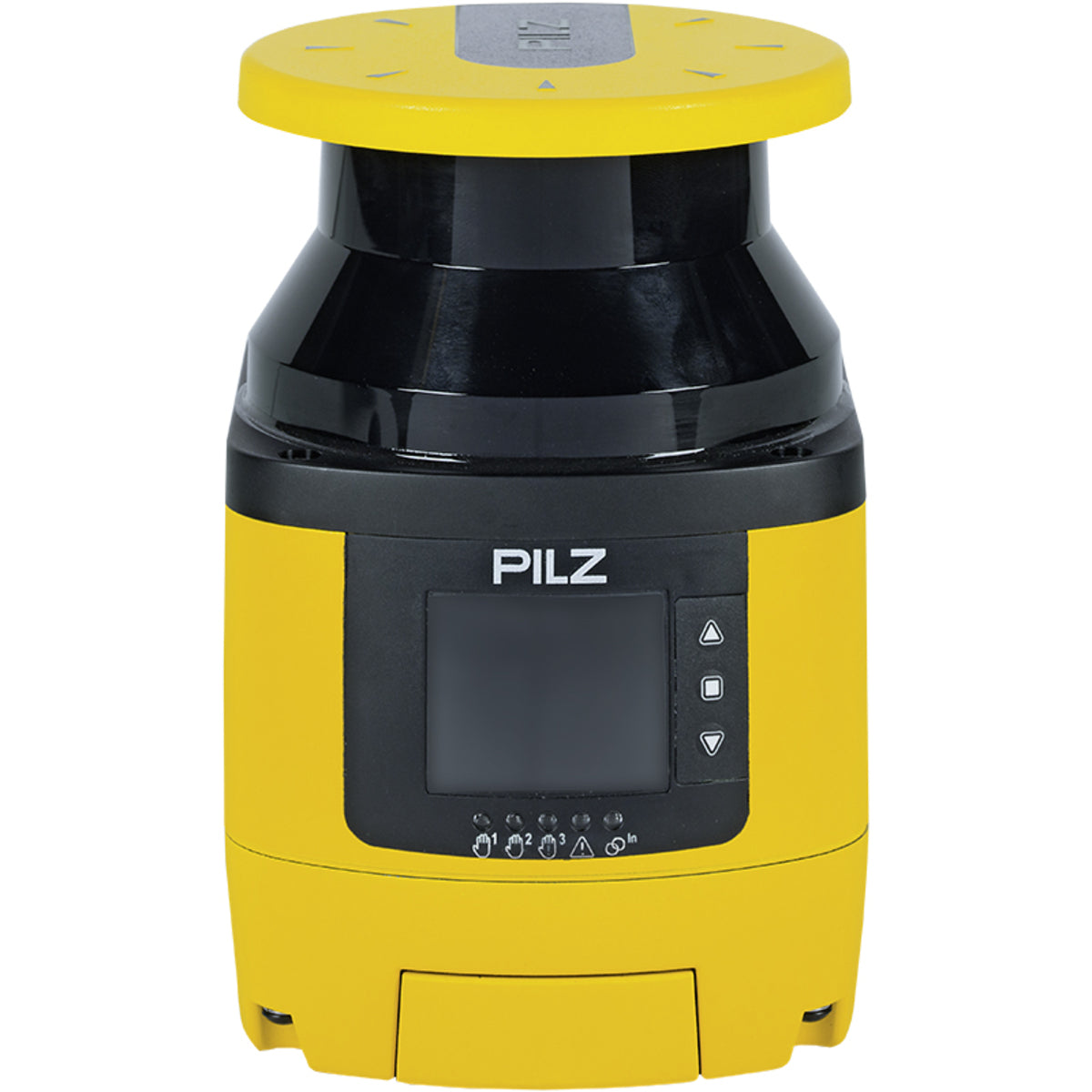

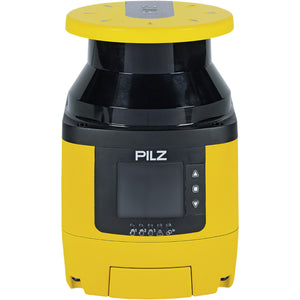

6D000013 | Pilz Safety Laser Scanner With 5.5 m Safety Zone And Advanced Safety Functions
- Regular price
- $3,899.00
- Sale price
- $3,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 6D000013
Description
The Pilz 6D000013 safety laser scanner is designed for precise monitoring of stationary hazardous areas using configurable safety and warning fields. It supports multiple detection resolutions and integrated safety functions to ensure reliable protection in industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pilz |
| Category | Safety Sensors |
| Part Number | 6D000013 |
| Subcategory | Safety Laser Scanners |
| Product Series | Pilz Safety Laser Scanner |
| Model Description | PSEN sc L 5.5 08-12 |
| Supply Voltage | 24 V DC |
| Power Consumption | 8 W |
| Warning Field Range | 0–40 m |
| Safety Zone Range | Up to 5.5 m |
| Detection Resolutions | 30 / 40 / 50 / 70 / 150 mm |
| Application | Stationary Danger Zone Guarding |
| Switching Outputs | 3 |
| Output Type | OSSD |
| Display Type | LED Indicator |
| Communication | Measurement data output via UDP |
| Operating Temperature | 32–122 °F |
| Approvals | CE, cULus, TUV |
| Weight | 2.14 kg |
Information About 6D000013
The 6D000013 is part of the Pilz Safety Laser Scanner family developed for reliable presence detection and access protection in fixed industrial installations. It is built to support vertical applications and includes reference markers to maintain consistent detection accuracy over time. The scanner integrates advanced safety technologies such as muting, override, EDM, and restart interlock in compliance with EN ISO 61496-3. An exchangeable memory block allows fast device replacement while retaining configuration data, reducing downtime during maintenance.
Key Features
- Extended Safety Zone Coverage: Provides a safety field with a maximum range of 5.5 meters for dependable hazard protection.
- Multiple Detection Capabilities: Supports resolutions of 30 mm, 40 mm, 50 mm, 70 mm, and 150 mm for flexible safety design.
- Configurable Zone Sets: Enables up to 10 configurable zone sets with a maximum of 2 safety zones and 2 warning zones active simultaneously.
- Integrated Safety Functions: Includes muting, override, EDM, and restart interlock for compliant safety control.
- Measurement Data Output: Offers UDP-based data output for diagnostics and system integration.
- Rapid Replacement Design: Uses an exchangeable memory block to simplify commissioning and replacement.
- Clear Status Indication: LED indicators provide immediate visual feedback on device and safety status.
The 6D000013 delivers the reliability and precision required for stationary danger zone guarding in certified industrial safety systems.
