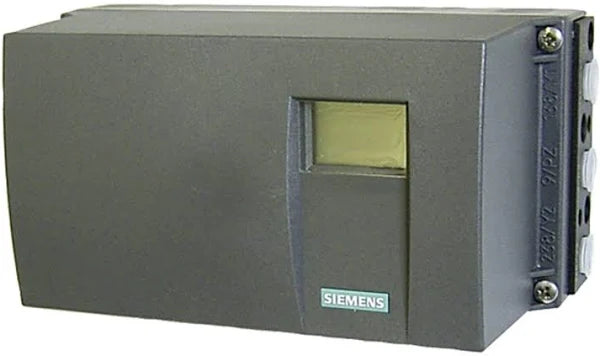

Product Description P/N: 6DR5210-0EN00-0AA0
Description
Siemens 6DR5 210-0EN00-0AA0 SIPART PS2 Smart Electropneumatic Positioner for Pneumatic Linear and Part-turn Actuators, 2-/3-/4-wire, 4-20mA, with HART-interface, Single Action, Polycarbonate Enclosure with Fixable Slipping, Clutch with Explosion Protection (ATEX/IECEx/FM/CSA), Intrinsic Safety Connection, Thread EL.: 1/2" NPT / Pneu.: 1/4" NPT, without Limit Monitor, without Option Module, Brief Instructions German / English / Chinese, without Mounted Pressure Gauge Block.
Technical Specifications
Brand | SIEMENS |
Part Number | 6DR5210-0EN00-0AA0 |
Category | Machine Parts |
Subcategory | Cam Positioner |
Function | Improves the accuracy and controllability of pneumatic actuators by providing proportional control based on a 4-20 mA signal. |
Supply Pressure | 1.4 bar to 10 bar (20 psi to 145 psi) |
Output Pressure | 0.2 bar to 10 bar (2.9 psi to 145 psi) |
Signal Input | 4-20 mA HART |
Supply Voltage | 24 VDC |
Power Consumption | Max. 2.5 W |
Ambient Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
Operating Temperature | -20 °C to +80 °C (-4 °F to +176 °F) |
Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
Degree of Protection | IP65, IP66, NEMA Type 4X |
Material | Housing: Aluminum, Diaphragm: FKM (Viton) |
Information About 6DR5210-0EN00-0AA0
The Siemens 6DR5210-0EN00-0AA0 is a highly advanced SIPART PS2 HART Positioner designed to enhance the precision and controllability of pneumatic actuators. This intelligent device operates by providing proportional control based on a 4-20 mA signal, ensuring optimal performance in industrial processes.
The positioner features a versatile supply pressure range of 1.4 bar to 10 bar (20 psi to 145 psi), allowing adaptability to various operational requirements. Its output pressure spans from 0.2 bar to 10 bar (2.9 psi to 145 psi), ensuring effective and precise actuator control.
With a signal input of 4-20 mA HART, the SIPART PS2 enables seamless communication and control integration within modern industrial systems. Operating on a 24 VDC supply voltage, the positioner has a power consumption of max. 2.5 W, contributing to energy efficiency in automation processes.
The device exhibits remarkable temperature resilience, with an ambient operating range of -40 °C to +80 °C (-40 °F to +176 °F) and an operational temperature range of -20 °C to +80 °C (-4 °F to +176 °F). Additionally, its storage temperature range extends from -40 °C to +85 °C (-40 °F to +185 °F), ensuring reliability even during non-operational periods.
The SIPART PS2 offers a high degree of protection with its IP65 and IP66 ratings, along with NEMA Type 4X compliance, making it suitable for challenging industrial environments. The construction features a robust housing made of aluminum and a diaphragm composed of FKM (Viton), ensuring durability and resistance to various environmental factors.
In summary, the Siemens 6DR5210-0EN00-0AA0 SIPART PS2 HART Positioner stands out for its advanced control capabilities, broad pressure ranges, and robust construction, making it an ideal solution for improving the precision and efficiency of pneumatic actuators in industrial applications.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
