6ED1052-1FB08-0BA1 | Siemens PLC Module
- Regular price
- $177.00
- Sale price
- $177.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ED1052-1FB08-0BA1
Description

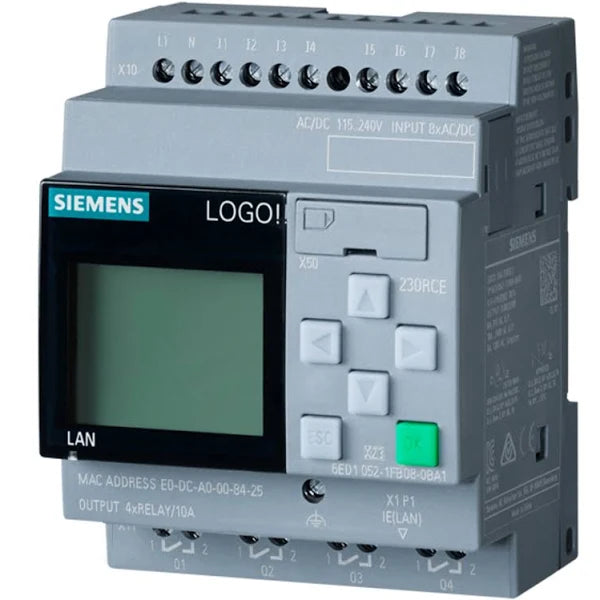

The 6ED1052-1FB08-0BA1 is a PLC module manufactured by Siemens, belonging to the LOGO! series. It specifically refers to the LOGO! 230RCE logic module with a display. The power supply/input/output (PS/I/O) configuration includes options for 115V or 230V and relay outputs. It features 8 digital inputs and 4 digital outputs. The memory capacity supports up to 400 blocks and is modularly expandable. Connectivity options include Ethernet, an integrated web server, and support for data logging. Additionally, it supports user-defined web pages and utilizes a standard microSD card for LOGO! Soft Comfort V8.3 or higher. This module also allows execution of older projects and offers cloud connection capabilities across all LOGO! 8.3 basic units.
Technical Specifications
|
Part # |
6ED10521FB080BA1 |
|
Manufacturer |
SIEMENS |
|
Category |
PLCs/Machine Control |
|
Subcategory |
VDC Logic I/O Module |
|
Design |
Logic module with display |
|
Version |
8.3 |
|
Inputs |
8 |
|
Outputs |
4 x relay |
|
Electrical data |
|
|
Input/supply voltage |
115/230 V AC/DC |
|
Permissible range |
85-265 V AC / 100-253 V DC |
|
Continuous current outputs |
10 A at resistive load; 3 A at inductive load |
|
Short circuit protection |
No |
|
Dimensions (H x W x D) |
71.5 x 90 x 60 mm |
|
Mounting |
DIN-rail 35 mm 4 MW |
|
Ambient temperature min. |
-20 °C |
|
Ambient temperature max. |
55 °C |
|
Protection rating |
IP20 |
|
Integrated real-time clock/ |
Power reserve typ. 480 h (no battery) |
|
programming cable |
Ethernet (not included) |
|
Max. program memory |
400 blocks |
|
Datalogging |
Internal memory/SD card |
|
Online status table |
Yes, with saving to the PC |
Information About 6ED1052-1FB08-0BA1
The 6ED1052-1FB08-0BA1 is a PLC module manufactured by Siemens, belonging to the LOGO! series. Specifically, it refers to the LOGO! 230RCE logic module featuring a display. It offers a power supply/input/output (PS/I/O) configuration supporting 115V or 230V and relay outputs. The module includes 8 digital inputs and 4 digital outputs. With a memory capacity of 400 blocks, it is modularly expandable to accommodate evolving needs.
Connectivity features include Ethernet capability and an integrated web server, facilitating remote access and monitoring. Additionally, the module supports data logging functionality, enabling the storage and retrieval of operational data. It also allows for the creation of user-defined web pages for customized control interfaces.
For convenient programming and compatibility with various software versions, the module utilizes a standard microSD card compatible with LOGO! Soft Comfort V8.3 or higher. It also supports the execution of older projects, ensuring backward compatibility.
Furthermore, the module enables cloud connectivity across all LOGO! 8.3 basic units, providing seamless integration with cloud-based services for enhanced functionality and data management.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
