6ED1052-1MD08-0BA1 | Siemens | Logic Module
- Regular price
- $174.00
- Sale price
- $174.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ED1052-1MD08-0BA1
Description

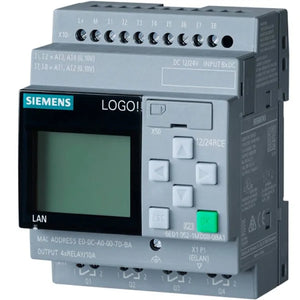

The Siemens 6ED1052-1MD08-0BA1 LOGO! 12/24RCE Logic Module is a versatile component designed for logic control applications in industrial settings. It features a memory capacity of 400 function blocks, enabling complex control tasks to be executed efficiently.
Equipped with an Ethernet interface and a built-in web server, this module facilitates seamless communication and remote monitoring, enhancing operational flexibility and accessibility.
The module includes (8) 12/24V DC digital inputs, with 4 of them supporting analog mode operation in the range of 0 to 10V. Additionally, it offers (4) relay contact digital outputs, each capable of handling up to 10A of current, enabling control of various devices and systems.
Technical Specifications
|
Part # |
6ED1052-1MD08-0BA1 |
|
Manufacturer |
SIEMENS |
|
Category |
PLCs/Machine Control |
|
Subcategory |
VDC Logic I/O ModuleDesign Logic module with display |
|
Inputs |
8 |
|
Analog useable inputs |
4 (0-10 V) |
|
Outputs |
4 (Relay) |
|
Dimensions (H x W x D) |
72x90x60 mm |
|
Mounting |
On 35 mm DIN rail (4 MW) or wall mounting |
|
Integrated real-time clock/power reserve |
typ. 480 h (no battery) |
|
Programming cable |
Ethernet (not included) |
|
Max. program memory |
400 blocks |
|
Datalogging |
Internal memory/SD card |
|
Online status table |
Yes, with saving to the PC |
|
Input/supply voltage |
12/24 V DC |
|
Permissible range |
10.8-28.8 V DC |
|
Continuous current outputs |
10 A at resistive load; 3 A at inductive load |
|
Short circuit protection |
External protection required |
|
Ambient temperature min. |
-20 °C |
|
Ambient temperature max. |
55 °C |
|
Protection rating |
IP20 |
Information About 6ED1052-1MD08-0BA1
The Siemens 6ED1052-1MD08-0BA1 LOGO! 12/24RCE Logic Module is designed to offer comprehensive control functionality in industrial settings. It features a robust construction and a wide range of capabilities to meet diverse automation requirements.
Equipped with 8 digital inputs (12/24V DC), of which 4 can be configured for analog use (0 to 10V), the module enables precise monitoring and control of various signals and processes. Additionally, it includes 4 relay contact digital outputs capable of handling up to 10A of current, ensuring efficient operation of connected devices and systems.
One of the notable features of this logic module is its generous memory capacity, capable of storing up to 400 function blocks. This allows for the implementation of complex control algorithms and logic sequences to accommodate diverse application scenarios.
The integration of an Ethernet interface enhances connectivity and enables seamless communication with other devices and systems within the industrial network. Moreover, the module includes a built-in web server, facilitating remote access and configuration for added convenience and flexibility in system management.
With its integral time switch functionality, the module enables precise scheduling and automation of processes based on predefined time parameters. This feature enhances operational efficiency and reduces the need for manual intervention in time-dependent operations.
The module operates on a 12/24V DC power supply, making it suitable for a wide range of industrial environments and applications. Its expandable design allows for integration with additional modules, providing scalability and customization options to adapt to evolving system requirements.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
