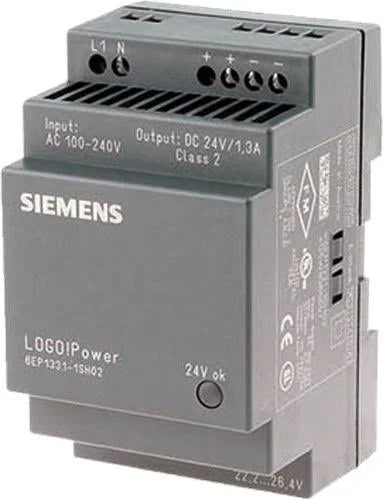

6EP1331-1SH02 | Siemens Power Supply
- Regular price
- $199.00
- Sale price
- $199.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6EP1331-1SH02
Description
The Siemens 6EP1331-1SH02 is a LOGO!Power stabilized power supply unit designed to provide reliable power to various industrial applications. It features a wide input voltage range of 100-240VAC, making it compatible with different power sources. The output delivers a current of 1.3A at 24VDC, ensuring stable and consistent power delivery to connected devices. With its robust construction and reliable performance, the 6EP1331-1SH02 is suitable for use in diverse industrial environments requiring dependable power supplies.
Technical Specifications
|
Part # |
6EP1331-1SH02 |
|
Category |
Power Supplies |
|
Subcategory |
Power Supply Input 1-phase AC |
|
Rated Voltage Value Vin rated |
100 ... 240 V |
|
Voltage Range AC |
85 ... 264 V |
|
Wide-Range Input |
Yes |
|
Overvoltage Resistance |
2.3 × Vin rated, 1.3 ms |
|
Mains Buffering |
at Iout rated, min. 40 ms; at Vin = 187 V |
|
Rated Line Frequency 1 |
50 Hz |
|
Rated Line Frequency 2 |
60 Hz |
|
Rated Line Range |
47 ... 63 Hz |
|
Input Current |
at rated input voltage 120 V: 0.7 A |
|
Switch-On Current Limiting |
(+25 °C), max. 15 A |
|
I²t, max. |
0.8 A²·s |
|
Built-In Incoming Fuse Internal |
Output Controlled, isolated DC voltage |
|
Rated Voltage Vout DC |
24 V |
|
Total Tolerance, Static |
± 3 % |
|
Static Mains Compensation |
approx. 0.1 % |
|
Static Load Balancing |
approx. 1.5 % |
|
Residual Ripple Peak-Peak, Max. |
200 mV |
|
Residual Ripple Peak-Peak, Typ. |
10 mV |
|
Spikes Peak-Peak, Max. (Bandwidth: 20MHz) |
300 mV |
|
Spikes Peak-Peak, Typ. (Bandwidth: 20MHz) |
20 mV |
|
Adjustment Range |
22.2 ... 26.4 V |
|
Product Function |
Output Voltage Adjustable: Yes |
|
Output Voltage Setting |
Via Potentiometer |
|
Status Display |
Green LED for Output Voltage OK |
|
On/Off Behavior |
No Overshoot of Vout (Soft Start) |
|
Startup Delay, Max. |
0.5 s |
|
Voltage Rise, Typ. |
15 ms |
|
Rated Current Value Iout Rated |
1.3 A |
|
Current Range |
0 ... 1.3 A |
|
Supplied Active Power |
Typical 30 W |
|
Parallel Switching for Enhanced Performance |
Yes |
|
Numbers of Parallel Switchable Units for Enhanced Performance |
2 |
|
Efficiency at Vout Rated, Iout Rated |
Approx. 82 % |
|
Power Loss at Vout Rated, Iout Rated |
Approx. 7 W |
|
Output Overvoltage Protection |
Yes, according to EN 60950 |
|
Current Limitation, Typ. |
2 A |
|
Property of the Output |
Short-Circuit Proof: Yes |
|
Property of the Output |
Short-Circuit Protection: Constant Current Characteristic |
|
Protection Class |
Class II (Without Protective Conductor) |
|
CE Mark |
Yes |
|
UL/cUL (CSA) Approval |
cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; |
|
UL/cUL (CSA) Approval |
cURus-Recognized (UL 60950, CSA C22.2 No. 60950), File E151273 |
|
Explosion Protection |
ATEX (EX) II 3G Ex nA IIC T3 |
|
FM Approval |
Class I, Div. 2, Group ABCD, T4 |
|
CB Approval |
Yes |
|
Marine Approval |
ABS, BV, DNV, GL, LRS |
|
Degree of Protection (EN 60529) |
IP20 |
Information About 6EP1331-1SH02
The Siemens 6EP1331-1SH02 is a LOGO!Power stabilized power supply designed to provide consistent and reliable power to industrial equipment. It accepts input voltages ranging from 100V to 240V AC, making it suitable for a wide range of applications. The output delivers a current of 1.3A at 24V DC, ensuring stable power delivery to connected devices.
This power supply unit is specifically engineered to meet the demanding requirements of industrial environments, where stable power is essential for uninterrupted operation of machinery and equipment. The 6EP1331-1SH02 ensures consistent power output, minimizing the risk of voltage fluctuations that could potentially damage sensitive equipment or disrupt production processes.
With its robust construction and high-quality components, the Siemens 6EP1331-1SH02 is built to withstand the rigors of industrial use. It features reliable performance and longevity, ensuring continuous operation even in challenging environments.
The 6EP1331-1SH02 is equipped with advanced features to enhance its functionality and usability. It incorporates protection mechanisms to safeguard against overvoltage, overcurrent, and short circuits, providing an added layer of security for connected devices.
Additionally, this power supply unit is designed for easy installation and integration into existing systems. It features a compact and space-saving design, allowing for flexible mounting options in various industrial settings.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
