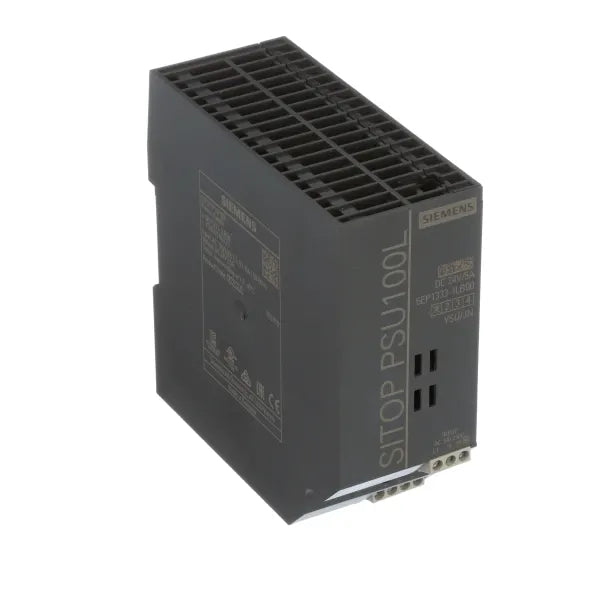

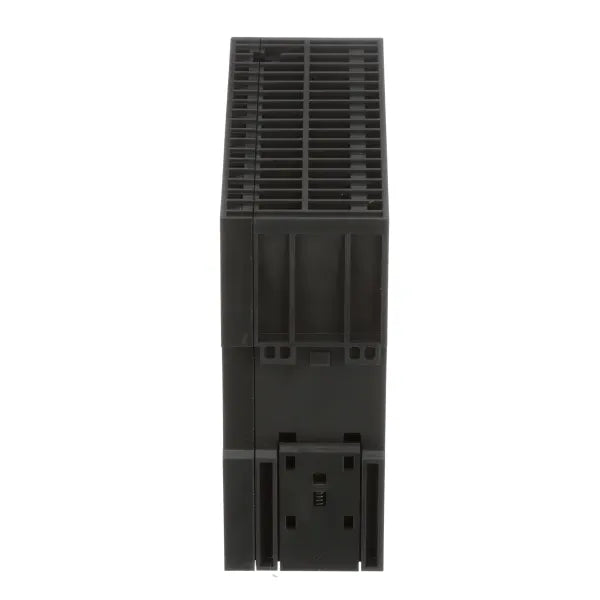

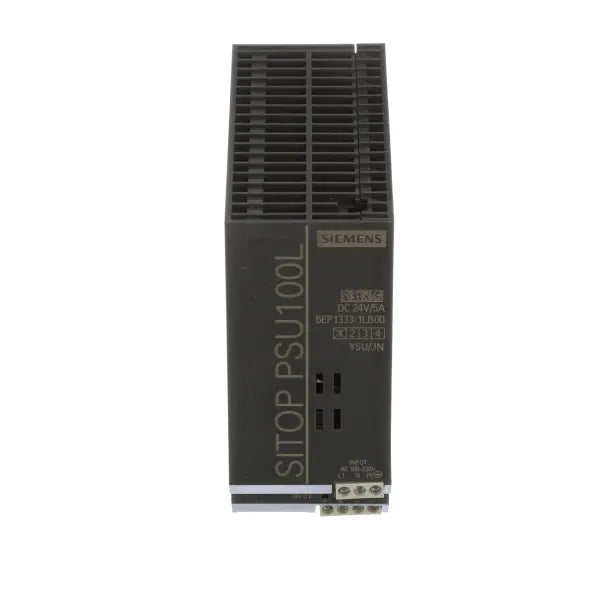

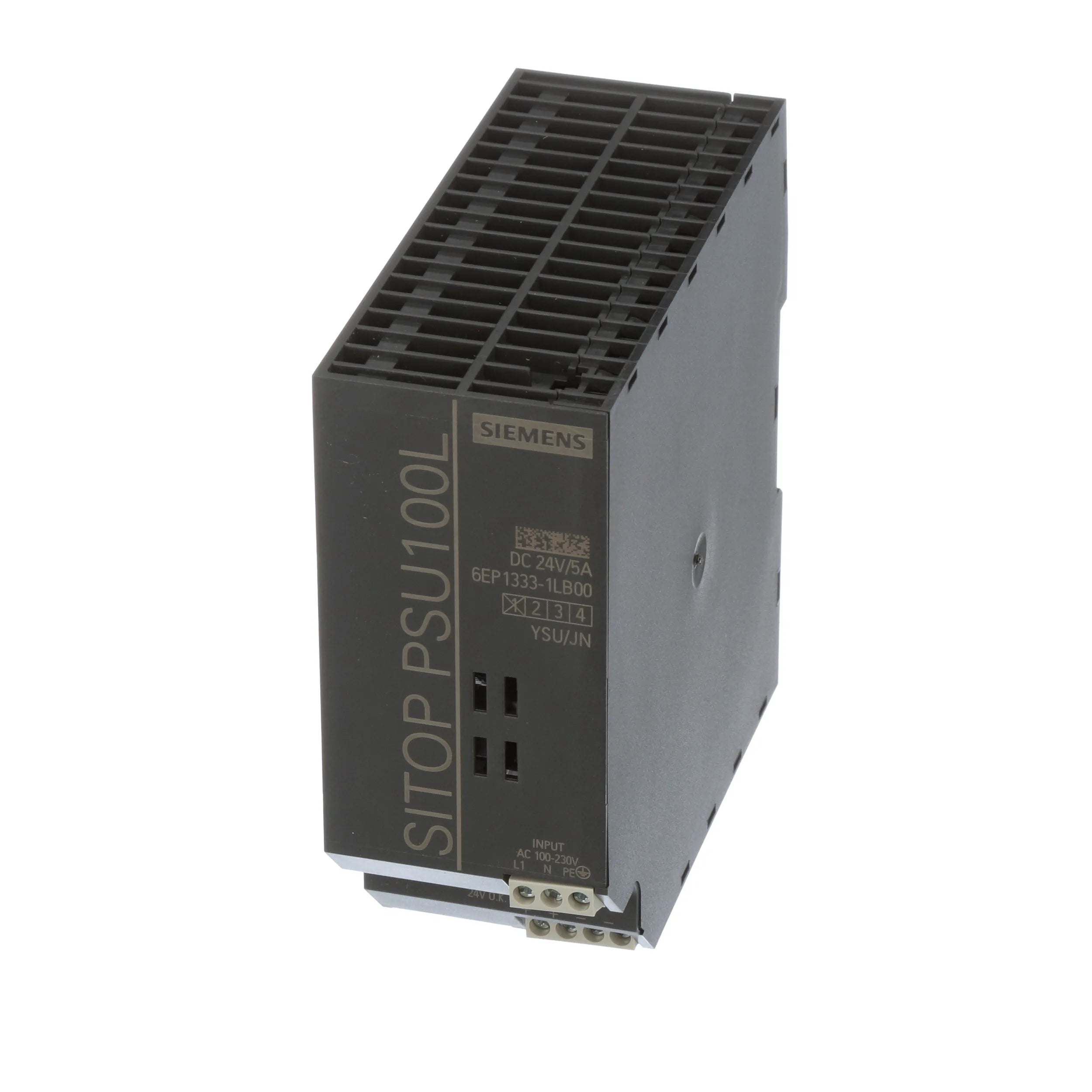

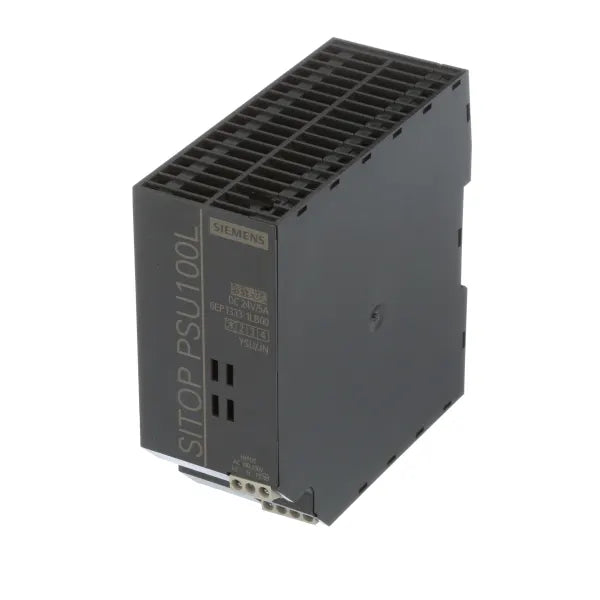

6EP1333-1LB00 | Siemens 120 W SITOP PSU100L 24VDC/5A Switch Mode Power Supply
- Regular price
- $149.00
- Sale price
- $149.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6EP1333-1LB00
Description
The Siemens 6EP1333-1LB00 is a 24 VDC, 5 A regulated switch-mode power supply belonging to the SITOP Lite PSU100L series. Designed for reliable industrial use, it accepts a wide AC input range of 93–132 VAC or 187–264 VAC and outputs up to 120 W of stable DC power. With compact DIN-rail construction and natural convection cooling, the 6EP1333-1LB00 ensures efficient and dependable power delivery for automation equipment and control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Power Supplies |
| Part Number | 6EP1333-1LB00 |
| Subcategory | Power Supply |
| Type | Switch Mode |
| Series | SITOP PSU100L |
| Output Voltage | 24 VDC (adjustable 22.8–26.4 V) |
| Output Current | 5 A |
| Power Rating | 120 W |
| Input Voltage | 93–132 VAC / 187–264 VAC |
| Input Frequency | 47–63 Hz |
| Electrical Phase | 1-phase |
| Number of Outputs | 1 |
| Efficiency | 86% |
| Ripple & Noise | 150 mV peak-to-peak |
| Load Regulation | 0.5% |
| Mounting Type | DIN rail |
| Terminal Type | Screw-clamp |
| Height | 125 mm |
| Width | 52 mm |
| Depth | 120 mm |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +60 °C |
| Enclosure Cooling | Natural convection |
| Protection | Short-circuit and overload protected |
Information About 6EP1333-1LB00
The Siemens 6EP1333-1LB00 is part of the SITOP Lite PSU100L family, a series engineered to meet standard industrial power requirements with dependable performance. It integrates a wide-range AC input with a manual switchover selector, allowing straightforward adaptation to 120 VAC and 230 VAC supply systems commonly found in industrial facilities. The power supply’s compact 52 mm width minimizes space usage on the DIN rail and supports efficient panel layouts. Designed for long-term reliability, it uses natural convection for cooling, reducing component stress and maintenance needs. Built-in overload and short-circuit protection further enhance system resilience, while internationally recognized approvals ensure compliance for global installations.
Key Features:
- 120 W regulated 24 VDC output: Supplies consistent DC power for PLCs, sensors, controllers, and industrial automation loads requiring stable voltage.
- Wide-range AC input capability: Accepts 93–132 VAC or 187–264 VAC with manual selector, enabling use in diverse global electrical infrastructures.
- Adjustable output voltage (22.8–26.4 V): Supports fine-tuning for long cable runs, sensitive devices, or systems needing slightly elevated stabilization.
- Compact DIN-rail form factor: Minimizes cabinet footprint with a narrow 52 mm width while ensuring easy installation and integration.
- Natural convection cooling: Ensures reliable thermal performance without fans, reducing maintenance and extending service life.
- Integrated short-circuit and overload protection: Safeguards connected equipment and enhances overall system safety under fault conditions.
- High operational efficiency (86%): Reduces energy losses and heat generation, improving cabinet airflow and power consumption.
- Global certifications (CE, UL): Enables deployment across international industrial environments with full compliance and safety assurance.
The 6EP1333-1LB00 delivers the reliability and precision required for stable DC power distribution in industrial automation, control cabinets, and machine-building applications.
