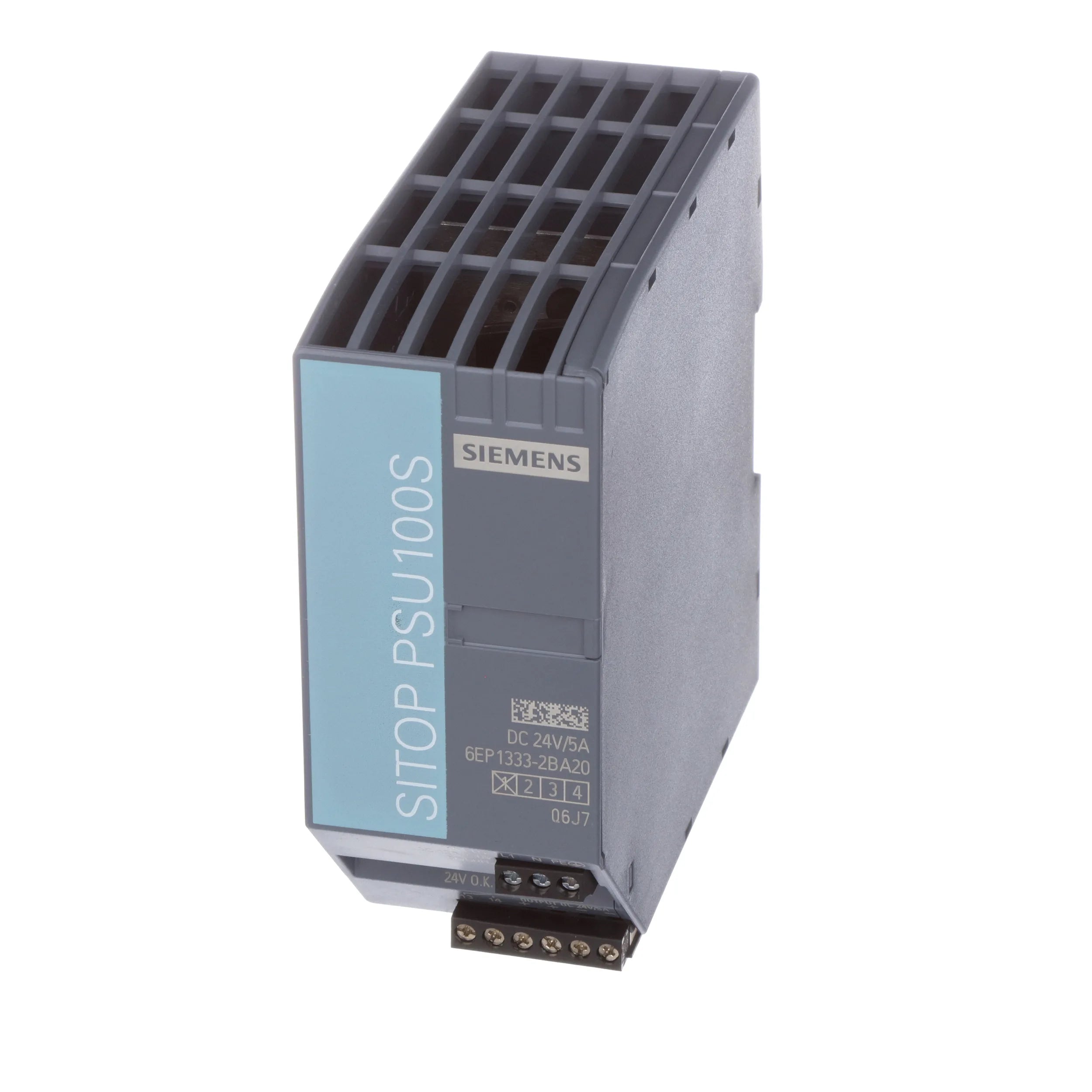

6EP1333-2BA20 | Siemens AC/DC DIN Rail Power Supply (PSU)
- Regular price
- $157.00
- Sale price
- $157.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6EP1333-2BA20
Description
Regulated AC/DC power supply unit (SMPS PSU) - Siemens (SITOP Smart series PSU100S) - SITOP PSU100S/1AC/24VDC/5A - Output 5A / 120W / 22.8-28Vdc (24Vdc nom.) - input 85-132Vac / 170-264Vac (120Vac / 220Vac / 230Vac / 240Vac nom.) (47...63Hz) (Single-phase (1AC) / 2-phase (2AC)) - DIN rail mounting (50mm width) - Screw-clamp term. connections - with 1 x digital output (NO Normally Open contact) (DC output OK remote signalling)
Technical Specifications
| Brand | Siemens |
| Part Number | 6EP1333-2BA20 |
| Category | Power Supplies |
| Subcategory | Power Supply |
| Type | Switch Mode |
| Output Voltage | 24V dc |
| Output Current | 5A |
| AC or DC Input Voltage | AC |
| AC or DC Output Voltage | DC |
| Input Voltage | 85 → 132V ac |
| Power Rating | 144W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 125mm |
| Width | 50mm |
| Depth | 120mm |
| Series | SITOP PSU100S |
| Load Regulation | 1% |
| Output Voltage Adjustment Range | 22.8 → 28V |
| Ripple And Noise | 150mV Pk-Pk |
| Efficiency | 88% |
| Minimum Temperature | -25°C |
| Maximum Temperature | +70°C |
| Mounting Type | DIN Rail Mount |
Information About 6EP1333-2BA20
The 6EP1333-2BA20 from Siemens is a versatile AC/DC DIN Rail Power Supply (PSU), offering reliable power conversion for industrial applications. Operating on a switch mode principle, it delivers a stable output voltage of 24V DC with a maximum output current of 5A.
Compatible with both AC and DC input voltages ranging from 85 to 132V AC, it ensures flexibility in power source compatibility. With a power rating of 144W, it provides ample power for various loads in industrial environments.
This power supply, part of the SITOP PSU100S series, features a single output, facilitating straightforward integration into control systems. Its compact dimensions of 125mm in height, 50mm in width, and 120mm in depth enable space-efficient installation on DIN rails.
The 6EP1333-2BA20 offers precise output voltage regulation with a load regulation of 1% and an output voltage adjustment range from 22.8 to 28V DC. It maintains low ripple and noise levels at 150mV peak-to-peak, ensuring stable operation of connected equipment.
With an efficiency rating of 88%, this power supply minimizes energy losses and maximizes system performance. It operates reliably across a wide temperature range from -25°C to +70°C, suitable for demanding industrial environments. Overall, the DIN Rail Mount design of this power supply, coupled with its robust features, makes it an ideal choice for industrial automation and control applications.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
