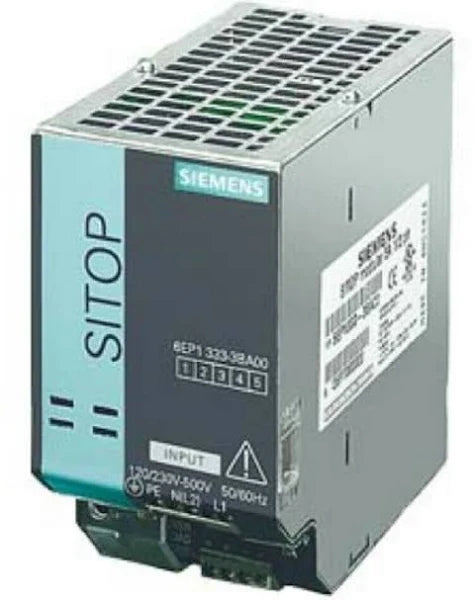

6EP1333-3BA00 | Siemens | Power Supply

Part #

6EP1333-3BA00

Manufacturer

SIEMENS

Category

Power Supplies

Subcategory

Power Supply Product SITOP modular

Power supply, type

24 V/5 A Input 1-phase and 2-phase AC

Supply voltage / 1 / at AC

120 … 230 V

Supply voltage / 2 / at AC

230 … 500 V

Voltage range

Set by means of selector switch on the device; starting from Vin > 90/180 V

Input voltage / 1 / at AC

85 … 264 V

Input voltage / 2 / at AC

176 … 550 V

Wide-range input

Yes

Overvoltage resistance

1300 Vpeak, 1.3 ms

Mains buffering at Iout rated, min.

25 ms

Mains buffering at Vin = 120/230 V, typ.

150 ms at Vin = 400 V

Rated line frequency

50 / 60 Hz

Rated line range

47 ... 63 Hz

Input current / at nominal level of the input voltage 120 V

2.2 A

Input current / at nominal level of the input voltage 230 V

1.2 A

Input current / at nominal level of the input voltage 500 V

0.61 A

Switch-on current limiting (+25 °C), max.

35 A

I²t, max.

1.7 A²·s

Built-in incoming fuse

T 3.15 A (not accessible)

Output

Controlled, isolated DC voltage

Rated voltage

Vout DC 24 V

Total tolerance, static

± 3 %

Static mains compensation, approx.

0.1 %

Static load balancing, approx.

0.1 %

Residual ripple peak-peak, max.

50 mV

Spikes peak-peak, max. (bandwidth: 20 MHz)

200 mV

Adjustment range

24 … 28.8 V

Product feature / output voltage adjustable

Yes

Output voltage setting via potentiometer

Yes

Status display

Green LED for 24 V OK

Signaling

Via signaling module (6EP1961-3BA10)

On/off behavior

Overshoot of Vout approx. 3 %

Startup delay, max.

1 s

Voltage rise, typ.

50 ms

Rated current value

Iout rated 5 A

Current range

0 … 5 A

Delivered active power / typ.

120 W

Constant overload current / at short-circuit during run-up

Typical 5.5 A

Short-term overload current / at short-circuit during operation

Typical 15 A

Duration of overloading ability for excess current / on short-circuiting during the operational phase

25 ms

Parallel switching for enhanced performance

Yes, switchable characteristic

Numbers of parallel switchable units for enhanced performance

2

Efficiency at Vout rated, Iout rated, approx.

87 %

Power loss at Vout rated, Iout rated, approx.

18 W

Output overvoltage protection

< 35 V

Current limitation, typ.

5.5 A

Characteristic feature of the output / short-circuit protected

Yes

Short-circuit protection

Alternatively, constant current characteristic approx. 5.5 A or latching shutdown

Enduring short circuit current / Effective level / typical

5.5 A

Overload/short-circuit indicator

LED yellow for "overload", LED red for "latching shutdown"

Primary/secondary isolation

Yes

Potential separation

Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178

Protection class

Class I

Stray current

Maximum 3.5 mA

Stray current

Typical 0.25 mA

CE mark

Yes

UL/CSA approval

Yes, cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259

Explosion protection in preparation

FM approval -

CB approval

No

Marine approval

GL, ABS

Degree of protection (EN 60529)

IP20
