Part #: 6EP1333-4BA00 Manufactured by: Siemens
Regular price
$268.00
Sale price
$268.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Siemens 6EP1333-4BA00 SIMATIC PM 1507 Power Supply is a stabilized power supply unit designed for industrial applicati...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 6EP1333-4BA00
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Siemens
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
6EP1333-4BA00 | Siemens | Power Supply
    6EP1333-4BA00 | Siemens | Power Supply
6EP1333-4BA00 | Siemens | Power Supply

Product Description P/N: 6EP1333-4BA00

Description / Specifications

Description

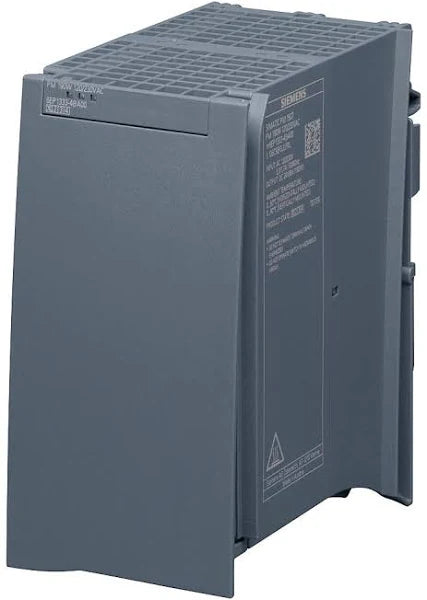

The Siemens 6EP1333-4BA00 SIMATIC PM 1507 Power Supply is a stabilized power supply unit designed for industrial applications. It features an input voltage range of 120/230V AC and provides an output of 8A at 24V DC. This power supply ensures stable and reliable power delivery to support various industrial automation systems and equipment. With its robust design and efficient performance, the Siemens SIMATIC PM 1507 Power Supply is suitable for a wide range of industrial settings requiring consistent and regulated power distribution.





Technical Specifications





Part #

6EP1333-4BA00

Manufacturer

SIEMENS

Category

Power Supplies

Subcategory

Power Supply Input 1-phase AC

Supply Voltage

1 with AC Rated value 120 V

Input Voltage

1 with AC 85 ... 132 V

Wide-Range Input

No

Overvoltage Resistance

2.3 × Vin rated, 1.3 ms

Mains Buffering

At Iout rated, min. 20 ms; at Vin = 93/187 V

Rated Line Frequency

50 ... 60 Hz

Rated Line Range

45 ... 65 Hz

Input Current

At rated input voltage 120 V: 3.7 A

Switch-On Current Limiting

Max. 62 A (+25°C)

Duration of Inrush Current Limiting

Max. 3 ms (@ 25°C)

I²t, Max.

12 A²·s

Built-In Incoming Fuse

T 6.3 A/250 V (not accessible)

Output

Controlled, isolated DC voltage

Rated Voltage Vout DC

24 V

Total Tolerance, Static

± 1 %

Static Mains Compensation

Approx. 0.1 %

Static Load Balancing

Approx. 0.1 %

Residual Ripple Peak-Peak

Max. 50 mV

Spikes Peak-Peak

Max. 150 mV (bandwidth: 20 MHz)

Product Function

Output voltage adjustable: No

Status Display

LED green for 24 V OK; LED red for error; LED yellow for standby

On/Off Behavior

No overshoot of Vout (soft start)

Startup Delay, Max.

1.5 s

Voltage Rise, Typ.

10 ms

Rated Current Value Iout Rated

8 A

Current Range

0 ... 8 A

Active Power Supplied Typical

192 W

Short-Term Overload Current

On short-circuiting during startup: 35 A

Duration of Overloading Capability

On short-circuiting during startup: 70 ms

Efficiency at Vout Rated, Iout Rated

Approx. 90 %

Power Loss at Vout Rated, Iout Rated

Approx. 21 W





Information About 6EP1333-4BA00



The Siemens 6EP1333-4BA00 SIMATIC PM 1507 Power Supply is a stabilized power supply unit designed to deliver consistent and reliable power for various industrial applications. With an input voltage range of 120/230V AC, it efficiently converts alternating current to direct current to provide an output of 8A at 24V DC.

This power supply unit ensures stable and regulated power delivery to support industrial automation systems, machinery, and equipment requiring a 24V DC power source. Its robust design and efficient operation make it suitable for use in demanding industrial environments where reliable power supply is crucial for uninterrupted operations.

The Siemens SIMATIC PM 1507 Power Supply features a wide range of input voltages, with automatic range selection functionality for enhanced versatility and compatibility with different power sources. It can accept input voltages ranging from 85 to 132V AC for the 120V AC input, and from 170 to 264V AC for the 230V AC input.

To ensure protection against overvoltage conditions, the power supply unit offers overvoltage resistance of 2.3 times the rated input voltage, with a duration of 1.3 milliseconds. It also features mains buffering capabilities, providing a minimum buffering time of 20 milliseconds at an output current of the rated value and with input voltages of 93/187V AC.

The power supply unit is equipped with built-in protection mechanisms, including a built-in incoming fuse (T 6.3A/250V) for added safety and reliability. It also offers protection in the mains power input as per IEC 898 standards, recommending a miniature circuit breaker with a characteristic B rating of 16A or a characteristic C rating of 10A.



Manufacturer information

Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Siemens 6EP1333-4BA00 SIMATIC PM 1507 Power Supply is a stabilized power supply unit designed for industrial applications. It features an input voltage range of 120/230V AC and provides an output of 8A at 24V DC. This power supply ensures stable and reliable power delivery to support various industrial automation systems and equipment. With its robust design and efficient performance, the Siemens SIMATIC PM 1507 Power Supply is suitable for a wide range of industrial settings requiring consistent and regulated power distribution.





Technical Specifications





Part #

6EP1333-4BA00

Manufacturer

SIEMENS

Category

Power Supplies

Subcategory

Power Supply Input 1-phase AC

Supply Voltage

1 with AC Rated value 120 V

Input Voltage

1 with AC 85 ... 132 V

Wide-Range Input

No

Overvoltage Resistance

2.3 × Vin rated, 1.3 ms

Mains Buffering

At Iout rated, min. 20 ms; at Vin = 93/187 V

Rated Line Frequency

50 ... 60 Hz

Rated Line Range

45 ... 65 Hz

Input Current

At rated input voltage 120 V: 3.7 A

Switch-On Current Limiting

Max. 62 A (+25°C)

Duration of Inrush Current Limiting

Max. 3 ms (@ 25°C)

I²t, Max.

12 A²·s

Built-In Incoming Fuse

T 6.3 A/250 V (not accessible)

Output

Controlled, isolated DC voltage

Rated Voltage Vout DC

24 V

Total Tolerance, Static

± 1 %

Static Mains Compensation

Approx. 0.1 %

Static Load Balancing

Approx. 0.1 %

Residual Ripple Peak-Peak

Max. 50 mV

Spikes Peak-Peak

Max. 150 mV (bandwidth: 20 MHz)

Product Function

Output voltage adjustable: No

Status Display

LED green for 24 V OK; LED red for error; LED yellow for standby

On/Off Behavior

No overshoot of Vout (soft start)

Startup Delay, Max.

1.5 s

Voltage Rise, Typ.

10 ms

Rated Current Value Iout Rated

8 A

Current Range

0 ... 8 A

Active Power Supplied Typical

192 W

Short-Term Overload Current

On short-circuiting during startup: 35 A

Duration of Overloading Capability

On short-circuiting during startup: 70 ms

Efficiency at Vout Rated, Iout Rated

Approx. 90 %

Power Loss at Vout Rated, Iout Rated

Approx. 21 W





Information About 6EP1333-4BA00



The Siemens 6EP1333-4BA00 SIMATIC PM 1507 Power Supply is a stabilized power supply unit designed to deliver consistent and reliable power for various industrial applications. With an input voltage range of 120/230V AC, it efficiently converts alternating current to direct current to provide an output of 8A at 24V DC.

This power supply unit ensures stable and regulated power delivery to support industrial automation systems, machinery, and equipment requiring a 24V DC power source. Its robust design and efficient operation make it suitable for use in demanding industrial environments where reliable power supply is crucial for uninterrupted operations.

The Siemens SIMATIC PM 1507 Power Supply features a wide range of input voltages, with automatic range selection functionality for enhanced versatility and compatibility with different power sources. It can accept input voltages ranging from 85 to 132V AC for the 120V AC input, and from 170 to 264V AC for the 230V AC input.

To ensure protection against overvoltage conditions, the power supply unit offers overvoltage resistance of 2.3 times the rated input voltage, with a duration of 1.3 milliseconds. It also features mains buffering capabilities, providing a minimum buffering time of 20 milliseconds at an output current of the rated value and with input voltages of 93/187V AC.

The power supply unit is equipped with built-in protection mechanisms, including a built-in incoming fuse (T 6.3A/250V) for added safety and reliability. It also offers protection in the mains power input as per IEC 898 standards, recommending a miniature circuit breaker with a characteristic B rating of 16A or a characteristic C rating of 10A.



Manufacturer information

Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
