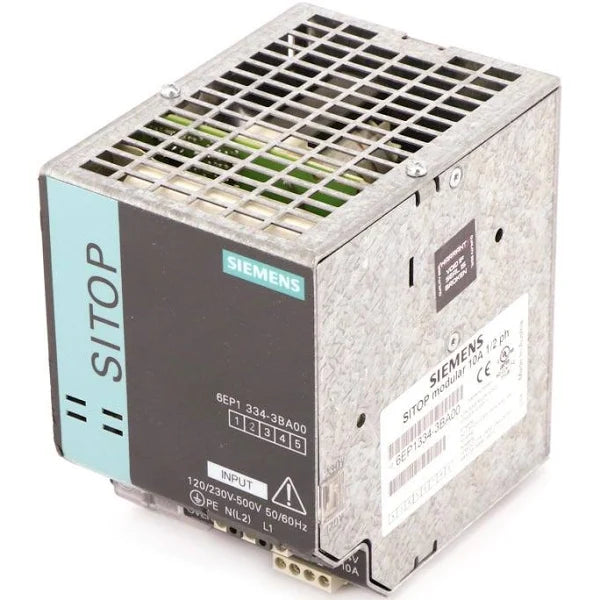

6EP1334-3BA00 | SIEMENS SITOP Modular 24 V/10 A
- Regular price
- $219.00
- Sale price
- $219.00
- Regular price
-
Do you need more quantity?
Product Description P/N: 6EP1334-3BA00
Description
The 6EP1334-3BA00 from Siemens is a SITOP PSU200M stabilized power supply. It is a single phase and two phase AC input SITOP modular unit with 24V/ 10A output. The compact design of the primary switched mode power supply requires only a small mounting surface. The rugged metal enclosure is also suitable for the harsh industrial applications. The standard mounting rail fixture is made of metal. Mounting is therefore fast, easy and vibration-proved. Reliability and quality are further characteristics of the electronic design.
Technical Specifications
Brand | SIEMENS |
Part Number | 6EP1334-3BA00 |
Category | Power Supplies |
Subcategory | Power Supply |
Configuration | Enclosed |
Input Voltage Range | 85-264 VAC |
Mounting Type | DIN Rail Mount |
Number of Outputs | 1 Output |
Operation | Switching |
Output Current | 10 A |
Output Power | 240 W |
Output Voltage | 24 VDC |
Primary Type | AC-DC |
Series | 6EP Series |
Special Features | Power Boost |
Information About 6EP1334-3BA00
SITOP modular meets the highest requirements for functionality, e. g. for use in complex plants and machines. The wide input voltage range enables connection to any system in the world and guarantees a high level of safety even in the event of large voltage fluctuations. The power boost function briefly supplies up to three times the rated current. In the case of an overload, you can choose between constant current with automatic restart, or user directed restart.
48 VDC/10 A and 20 A Enables Small Cable Cross-Sections
Compact Metal Housing
No Installation Clearances Required at the Sides
Wide Input Voltage Range
Extra Power for Brief Operational Overload
Power Boost for Triggering Protective Equipment
Selectable Short-Circuit Characteristics
Soft Characteristic Curve Selectable for Parallel Switching and Load Sharing
High Efficiency
Operating Status Indicated by 3 LEDs
Can Be Combined with SITOP Power Security Components and DC UPS
-25 to 60°C Ambient Temperate Range
Setting Range 24 to 28.8 VDC for 24 VDC Output Voltages and 42 to 56 VDC for 48 VDC Output Voltages
Certifications: CE, cULus, SEMI F47(for 24 VDC Single and Three Phase), ABS, GL
Efficiencies from 87% to 93%
Power Boost: 3× Rated Output Current for 25 ms
Extra Power: 1.5× Rated Output Current for 5 s/Min.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
