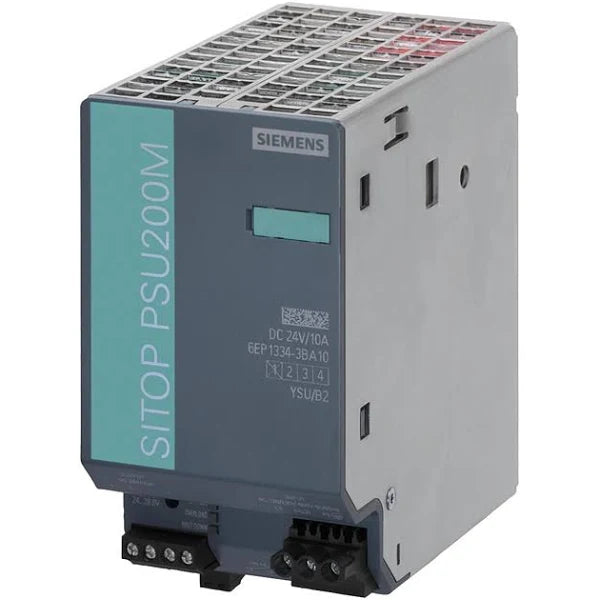

6EP1334-3BA10 | Siemens Modular Power Supply 120/230-500VAC In, 10A @ 24VDC
6EP1334-3BA10 | Siemens Modular Power Supply 120/230-500VAC In, 10A @ 24VDC
Part #: 6EP1334-3BA10 Manufactured by: Siemens

6EP1334-3BA10 | Siemens Modular Power Supply 120/230-500VAC In, 10A @ 24VDC

Regular price
$239.00
Sale price
$239.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
SITOP PSU200M 10 A STABILIZED POWER SUPPLY INPUT: 120/230-500 V AC OUTPUT: 24 V/10 A DC
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 6EP1334-3BA10
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Siemens
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
6EP1334-3BA10 | Siemens Modular Power Supply 120/230-500VAC In, 10A @ 24VDC
    6EP1334-3BA10 | Siemens Modular Power Supply 120/230-500VAC In, 10A @ 24VDC
6EP1334-3BA10 | Siemens Modular Power Supply 120/230-500VAC In, 10A @ 24VDC
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 6EP1334-3BA10

Description / Specifications

Description

Regulated AC/DC power supply unit (SMPS PSU) - SEMI F47 - Siemens (SITOP Modular series PSU200M) - SITOP PSU200M/1-2AC/24VDC/10A - Output 10A / 240W / 24Vdc-28.8Vdc - input 85-264Vac / 176-550Vac (120Vac / 220Vac / 230Vac / 240Vac / 277Vac / 380Vac / 400Vac / 415Vac / 480Vac / 500Vac / 525Vac nom.) (47...63Hz) (Single-phase (1AC) / 2-phase (2AC)) - DIN rail mounting (90mm width) - Screw-clamp term. connections - with 1 x digital output (NO Normally Open contact) (DC output OK remote signalling)


Technical Specifications


Brand Siemens
Part Number 6EP1334-3BA10
Category Power Supplies
Subcategory Power Supply
Output Current 10 AMP
Input Voltage 120/230-500 VAC
Output Voltage 24 VDC
Product Type POWER SUPPLY
Product Family SITOP PSU200M
Power Rating 240 W
Amperage Rating 10 A
Frequency Rating 47 to 63 Hz
Mounting Type DIN Rail
Case Material Metallic
Width 70 mm
Depth 121 mm
Height 125 mm




Information About 6EP1334-3BA10

The SITOP modular single-phase and 2-phase power supplies are technology power supplies for demanding solutions and provide maximum functionality for use in complex plants and machines. The ultra-wide-range input enables connection to single-phase supply systems or directly between the phase conductors of 3-phase supply systems (2-phase) and ensures high reliability even in the case of large voltage fluctuations. The Power Boost function supplies up to three times the nominal current over short durations. If overload occurs, there is a choice between constant current with automatic restart or latching disconnection.

The high degree of efficiency minimizes energy consumption and heat generation in the control cabinet, and the compact metal enclosure also saves space. To further increase 24 V availability, the power supplies can be combined with buffer, DC UPS, redundancy and selectivity modules. Regardless of the industry or requirements, Siemens offers reliable and efficient power supplies for every plant.

Features and Benefits
Slim design

Power boost with 3 times rated current for tripping protective devices

Extra power with 1.5 times rated current for brief functional overload

Selectable short circuit response between constant current and restart

Symmetrical load distribution can be selected for parallel operation

Operating state on 3 LEDs

High efficiency up to 94%

Temperature range: -25°C to 70°C


    Manufacturer information

    Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.

    Warrany image

    IQElectro 2 Year Warranty

    IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
    Warranty Terms
    warningIQElectro is not an authorized distributor.
    IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
    Description / Specifications

    Description

    Regulated AC/DC power supply unit (SMPS PSU) - SEMI F47 - Siemens (SITOP Modular series PSU200M) - SITOP PSU200M/1-2AC/24VDC/10A - Output 10A / 240W / 24Vdc-28.8Vdc - input 85-264Vac / 176-550Vac (120Vac / 220Vac / 230Vac / 240Vac / 277Vac / 380Vac / 400Vac / 415Vac / 480Vac / 500Vac / 525Vac nom.) (47...63Hz) (Single-phase (1AC) / 2-phase (2AC)) - DIN rail mounting (90mm width) - Screw-clamp term. connections - with 1 x digital output (NO Normally Open contact) (DC output OK remote signalling)


    Technical Specifications


    Brand Siemens
    Part Number 6EP1334-3BA10
    Category Power Supplies
    Subcategory Power Supply
    Output Current 10 AMP
    Input Voltage 120/230-500 VAC
    Output Voltage 24 VDC
    Product Type POWER SUPPLY
    Product Family SITOP PSU200M
    Power Rating 240 W
    Amperage Rating 10 A
    Frequency Rating 47 to 63 Hz
    Mounting Type DIN Rail
    Case Material Metallic
    Width 70 mm
    Depth 121 mm
    Height 125 mm




    Information About 6EP1334-3BA10

    The SITOP modular single-phase and 2-phase power supplies are technology power supplies for demanding solutions and provide maximum functionality for use in complex plants and machines. The ultra-wide-range input enables connection to single-phase supply systems or directly between the phase conductors of 3-phase supply systems (2-phase) and ensures high reliability even in the case of large voltage fluctuations. The Power Boost function supplies up to three times the nominal current over short durations. If overload occurs, there is a choice between constant current with automatic restart or latching disconnection.

    The high degree of efficiency minimizes energy consumption and heat generation in the control cabinet, and the compact metal enclosure also saves space. To further increase 24 V availability, the power supplies can be combined with buffer, DC UPS, redundancy and selectivity modules. Regardless of the industry or requirements, Siemens offers reliable and efficient power supplies for every plant.

    Features and Benefits
    Slim design

    Power boost with 3 times rated current for tripping protective devices

    Extra power with 1.5 times rated current for brief functional overload

    Selectable short circuit response between constant current and restart

    Symmetrical load distribution can be selected for parallel operation

    Operating state on 3 LEDs

    High efficiency up to 94%

    Temperature range: -25°C to 70°C


      Manufacturer information

      Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
