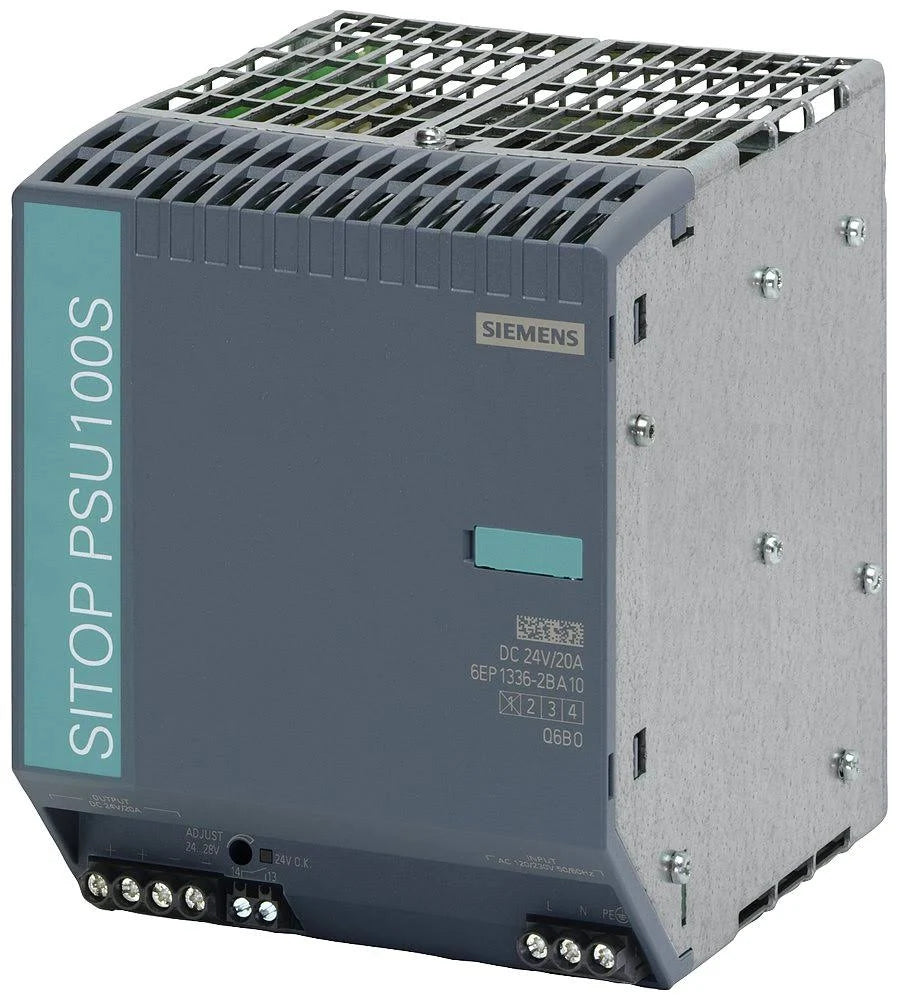

6EP1336-2BA10 | Siemens SITOP PSU100S 24VDC 20A 480W Industrial DIN-Rail Power Supply
- Regular price
- $379.00
- Sale price
- $379.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6EP1336-2BA10
Description
The Siemens 6EP1336-2BA10 is a SITOP PSU100S stabilized switching power supply designed to deliver 24VDC at 20A for industrial automation applications. It supports a wide AC input range of 85–132VAC or 176–264VAC and includes a digital “DC OK” signaling contact for remote status monitoring. Featuring screw-type terminals and DIN-rail mounting, the unit provides reliable 480W output power for control systems and machinery.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Power Supplies |
| Part Number | 6EP1336-2BA10 |
| Subcategory | Power Supply |
| Product Type | SITOP PSU100S 20A stabilized power supply |
| Series | SITOP Smart Series |
| Input Type | 1-phase AC (supports 1AC/2AC configurations) |
| Input Voltage Range | 85–132 VAC or 176–264 VAC (47–63 Hz) |
| Rated Output Voltage | 24 VDC |
| Adjustable Output Range | 24–28 VDC (per product family capability) |
| Output Current | 20 A |
| Output Power | 480 W |
| Overvoltage Resistance | 2.3× Vin rated for 1.3 ms |
| Mounting | DIN rail EN 60715 (35×7.5/15) |
| Width (DIN Rail) | 115 mm |
| Connection Technology | Screw-type terminals |
| Signaling Contact | 1× NO DC OK output |
| Installation Environment | Industrial control panels |
| Protection Rating | IP20 |
| Application | Regulated 24VDC supply for automation equipment |
Information About
The 6EP1336-2BA10 is part of the Siemens SITOP Smart Series, engineered for stable and efficient power delivery to industrial control equipment. Its construction includes a rugged housing with screw-clamp terminals and compatibility with EN 60715 DIN rail systems for fast installation. The power supply supports both single-phase and two-phase AC operation, offering overvoltage resistance up to 2.3× the rated input for short durations to maintain system stability. Typical usage includes powering PLCs, sensors, actuators, and automation modules requiring a dependable 24VDC power source in demanding industrial environments.
Key Features
- 480 W output capacity: Provides 24VDC at 20A for industrial control loads.
- Wide AC input range: Accepts 85–132VAC or 176–264VAC for global power compatibility.
- Digital DC OK output: Includes one normally open relay contact for remote status signaling.
- High overvoltage resistance: Tolerates up to 2.3× Vin rated for 1.3 ms.
- DIN-rail mounting: Snaps onto EN 60715 35×7.5/15 rails for quick installation.
- Screw-type terminals: Secure wiring for robust power distribution.
- Compact industrial design: 115 mm width suitable for panel-mounted control systems.
- SITOP Smart Series: Engineered for high reliability in continuous industrial operation.
The 6EP1336-2BA10 delivers the reliability and precision required for stable DC power in automation and control applications.
