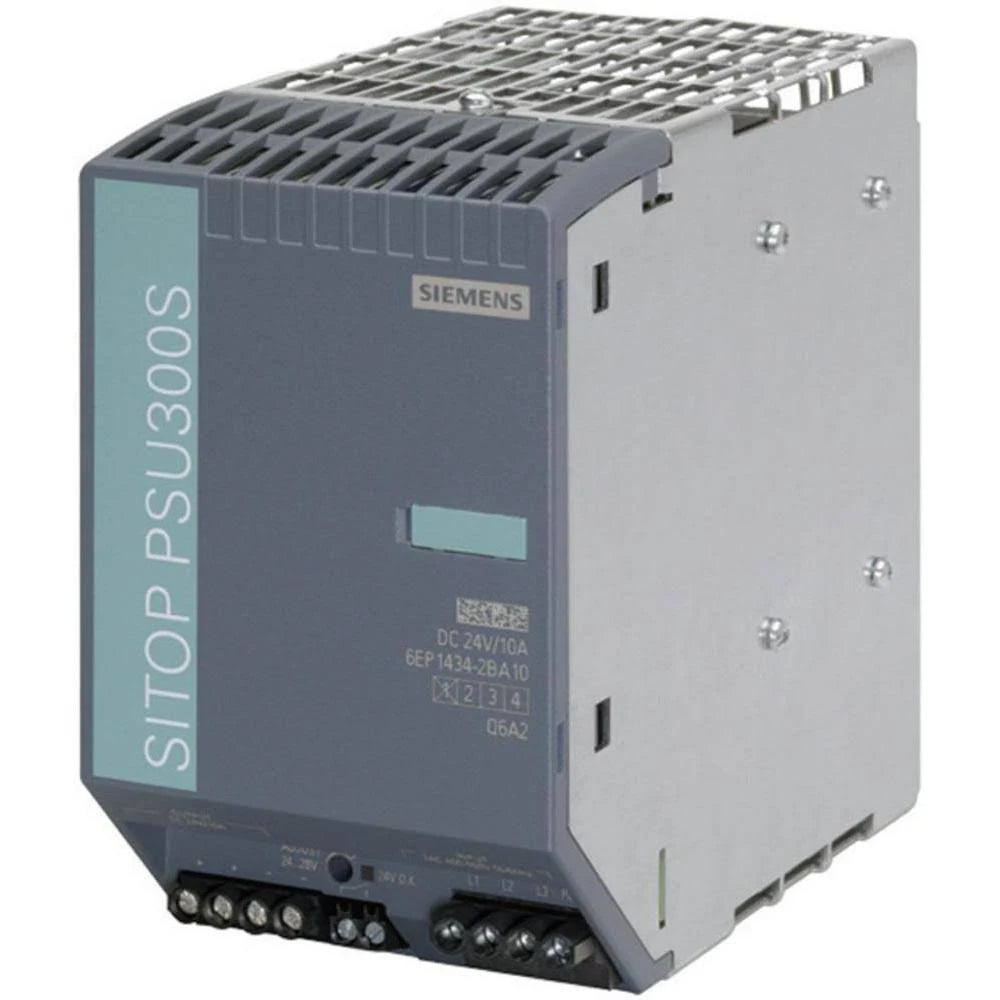

6EP1434-2BA10 | Siemens | Sitop psu300s
- Regular price
- $362.00
- Sale price
- $362.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: 6EP1434-2BA10
Description
The Siemens 6EP1434-2BA10 SITOP PSU300S is a stabilized power supply designed for industrial applications. With an input rating of 3AC 400-500V, this power supply unit ensures a stable and reliable source of power. The output specifications include 24V DC with a current capacity of 10A.
Technical Specifications
|
On/off behavior |
No overshoot of Vout (soft start) |
|
Startup delay, max. |
1.5 s |
|
Voltage rise, typ. |
30 ms |
|
Voltage increase time / of the output voltage / |
maximum 500 ms |
|
Rated current value Iout rated |
10 A |
|
Current range |
0 … 10 A |
|
delivered active power / typ. |
240 W |
|
short-term overload current / at short-circuit |
during run-up / typical 16 A |
|
Duration of overloading ability for excess |
current / on short-circuiting during the start-up |
|
short-term overload current / at short-circuit |
during operation / typical 16 A |
|
Duration of overloading ability for excess |
current / on short-circuiting during the operational phase |
|
Parallel switching for enhanced performance |
Yes |
|
Numbers of parallel switchable units for |
enhanced performance 2 |
|
Efficiency at Vout rated, Iout rated, approx. |
91 % |
|
Power loss at Vout rated, Iout rated, approx. |
24 W |
|
Output overvoltage protection |
protection against overvoltage in case of internal fault Vout < 35 V |
|
Current limitation, typ. |
11 A |
|
Characteristic feature of the output / |
short-circuit protected Yes |
|
Short-circuit protection |
Electronic shutdown, automatic restart |
|
Enduring short circuit current / Effective level / |
maximum 3.2 A |
|
Enduring short circuit current / Effective level / |
typical |
|
Note overload capability 150 % Iout rated up to 5 |
s/min |
|
Primary/secondary isolation |
Yes |
|
Potential separation |
Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178 |
|
Protection class |
Class I |
|
CE mark |
Yes |
|
UL/CSA approval |
Yes |
|
UL/cUL (CSA) approval |
cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; |
|
UL/cUL (CSA) approval |
cCSAus (CSA C22.2 No. 60950-1, UL 60950-1) |
|
Explosion protection |
ATEX (EX) II 3G Ex nAC IIC T4; cCSAus (CSA C22.2 No. 213, |
|
Explosion protection |
ANSI/ISA-12.12.01) Class I, Div. 2, Group ABCD, T4 |
Information About 6EP1434-2BA10
The Siemens 6EP1434-2BA10 SITOP PSU300S 24 V/10 A is a stabilized power supply designed for industrial applications. With a robust build and precise voltage regulation, it ensures reliable power delivery for various equipment and systems.
Featuring an input voltage range of 3 400-500 V 3AC, this power supply unit efficiently converts AC power to a stable 24 V DC output, capable of delivering up to 10 A of current. This makes it suitable for powering a wide range of devices and machinery commonly found in industrial settings.
The SITOP PSU300S 24 V/10 A is engineered to meet the demanding requirements of industrial environments, providing consistent and dependable power to critical systems. Its robust design ensures resilience against voltage fluctuations and electrical disturbances, safeguarding connected equipment from potential damage.
Equipped with advanced stabilization technology, this power supply unit delivers a steady 24 V DC output, essential for the proper operation of sensitive electronic components and control systems. Its precise voltage regulation capabilities ensure optimal performance and longevity of connected devices.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
