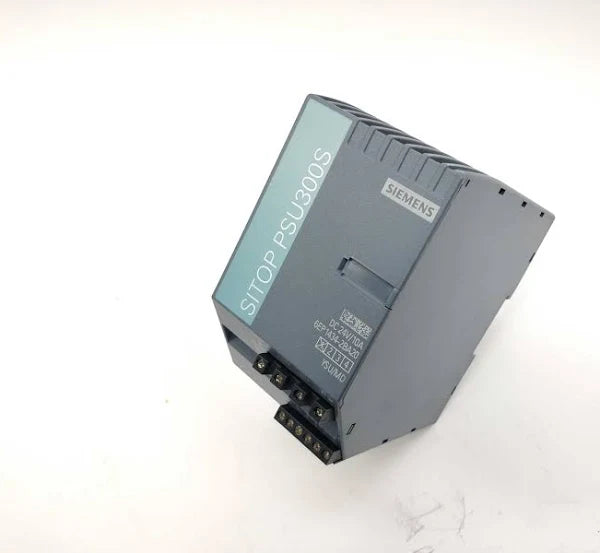

6EP1434-2BA20 | Siemens Power Supply, AC-DC, 24V, 10A
- Regular price
- $264.00
- Sale price
- $264.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6EP1434-2BA20
Description
Regulated AC/DC power supply unit (SMPS PSU) - Siemens (SITOP Smart series PSU300S) - SITOP PSU300S/3AC/24VDC/10A - Output 10A / 240W / 24Vdc-28Vdc - input 340-550Vac (380Vac / 400Vac / 415Vac / 480Vac / 500Vac / 525Vac nom.) (47...63Hz) (3-phase (3AC) input) - DIN rail mounting (70mm width) - Screw-clamp term. connections - with 1 x digital output (NO Normally Open contact) (DC output OK remote signalling)
Technical Specifications
| Brand | Siemens |
| Part Number | 6EP1434-2BA20 |
| Category | Power Supplies |
| Subcategory | Power Supply |
| Design | DIN rail power supply |
| Series | SITOP PSU300S |
| Version | Three phase |
| Status indicator | Yes |
| Setting range output voltage | 24-28 V DC |
| Nominal output voltage | 24 V DC |
| Nominal output current | 10 A |
| Parallel connection | Yes |
| Nominal input voltage | 400-500 V AC |
| Input voltage range min. | 340 V AC |
| Input voltage range max. | 550 V AC |
| Frequency range | 47-63 Hz |
| Ambient temperature min. | -25 °C |
| Ambient temperature max. | 70 °C |
| Protection rating | IP20 |
| Width | 70 mm |
| Height | 125 mm |
| Depth | 120 mm |
| Connection type | Screw terminals |
Information About 6EP1434-2BA20
The 6EP1434-2BA20 from Siemens is a highly reliable AC-DC power supply designed for industrial applications. Operating within the robust DIN rail power supply framework, it belongs to the SITOP PSU300S series, ensuring consistent and stable power delivery. This version of the power supply is configured for three-phase input.
Equipped with a status indicator, it provides clear visual feedback on its operational state, enhancing user convenience. The output voltage is adjustable within a setting range of 24-28 V DC, with a nominal output voltage of 24 V DC and a nominal output current of 10 A, ensuring compatibility with various industrial devices and systems.
Featuring a parallel connection capability, this power supply enables scalability and redundancy in power distribution setups. It accepts a nominal input voltage of 400-500 V AC, with input voltage range spanning from 340 V AC to 550 V AC, accommodating fluctuations in the input power source.
With a frequency range of 47-63 Hz, it operates reliably across diverse power grid conditions. It is designed to withstand harsh industrial environments, with an ambient temperature range from -25°C to 70°C and a protection rating of IP20. The compact dimensions (70mm x 125mm x 120mm) and screw terminal connections facilitate easy installation and integration into control panels or cabinets.
Overall, the 6EP1434-2BA20 Siemens Power Supply offers robust performance, versatility, and ease of use, making it an ideal choice for powering critical industrial equipment and systems.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
