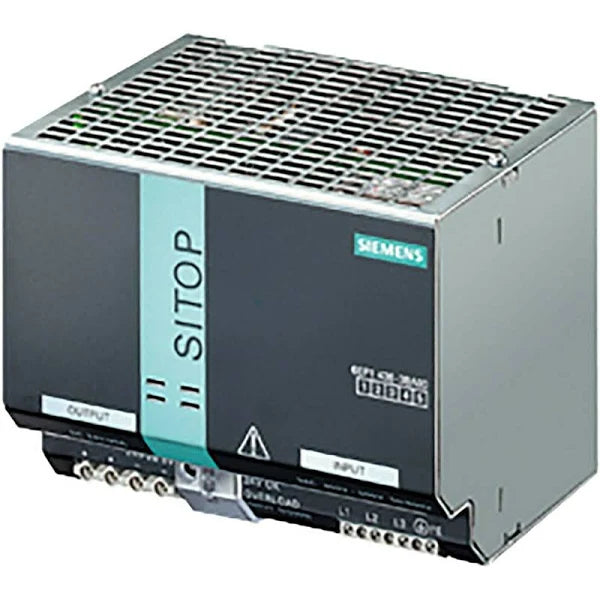

6EP1436-3BA00 | SIEMENS SITOP Modular 20 Power Supply 400-500VAC 3PH, 24V DC 20A
- Regular price
- $329.00
- Sale price
- $329.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6EP1436-3BA00
Description
The SIEMENS 6EP1436-3BA00 is a SITOP Modular 20 Power Supply designed for 400-500VAC 3-phase input, providing a stable 24V DC output at 20A. This robust and efficient power supply ensures reliable and consistent power for industrial applications, meeting high-performance standards with Siemens' renowned quality and durability.
Technical Specifications
| Brand | SIEMENS |
| Part Number | 6EP1436-3BA00 |
| Category | Power Supplies |
| Subcategory | Power Supply |
| Current Rating | 20 AMP |
| Output Voltage | 24 VDC |
| Phases | 3 |
| Input Voltage | 340-550 VAC |
| Frequency | 50/60 HZ |
| Product Type | POWER SUPPLY |
| Product Family | SITOP |
Information About 6EP1436-3BA00
Modular power supplies
Basis of the modular concept is a complete line of 24 VDC power supplies from 5A up to 40A.
compact design
adjustable output voltage up to 28.8 VDC
3 LED operating indications
Selectable reaction to short circuit: automatic restart or storing shutdown
Possible to use in parallel connection (load sharing)
DIN rail mounting
SITOP Modular comes in:
5A, 10A, 20A and 40A devices can be used for single-phase (L1 and N) and for 3-phase applications by using 2 hot wires only within the provided input voltage range capability
The power supplies fulfill:
Radio interference suppression, class B
Restriction of the input current harmonic waves in acc. w. EN 61 000-3-2 (except 6EP1337-3BA00)
Power supplies and add-on modules meet:
Ambient temperature range from 0°C + 60°CPower Security Components
The signaling module can be snapped onto the left side of the basic device. The module offers floating signal contacts (“output voltage o.k. and “ready for operation o.k.”) and a signal input for remote ON/OFF of the basic device.
The buffer module bypasses power interruptions in the msec range. 100 msec at 40 A, 800 msec at 5 A, up to max. of 3 sec at low load current, DIN rail mounting is possible at any location in the switching cabinet.
The redundancy module guarantees stable 24VDC power by decoupling two power supplies in parallel operation. The module monitors both power supplies and makes sure that the stand by power supply immediately takes over when the output voltage of the operating power supply drops below the (adjustable) threshold voltage. For applications above 20 amps one redundancy module per power supply is required.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
