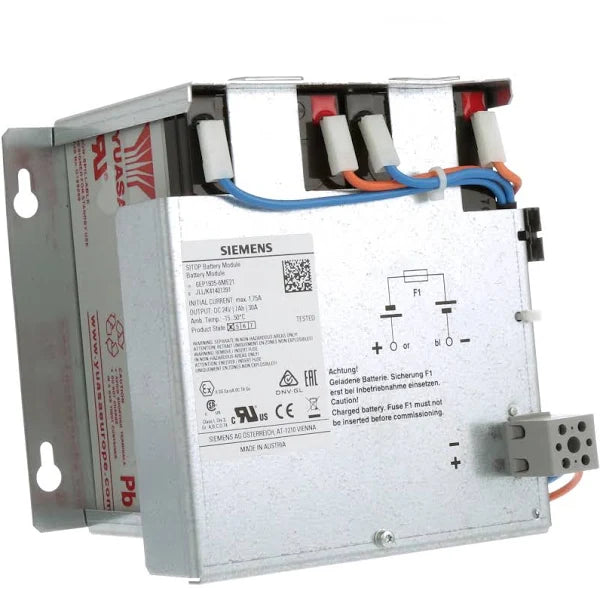

6EP1935-6ME21 | Siemens | Battery Module
- Regular price
- $239.00
- Sale price
- $239.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6EP1935-6ME21
Description
The Siemens 6EP1935-6ME21 SITOP Battery Module is designed as a supplementary power source for SITOP DC UPS modules 6A, 15A, and 40A. It features service-free sealed lead-acid batteries with a voltage rating of 24V and a capacity of 7Ah. The module serves as a backup power solution, ensuring uninterrupted operation of critical systems in the event of a mains power failure. It is specifically engineered to integrate seamlessly with Siemens SITOP DC UPS modules, providing reliable and continuous power supply in industrial applications.
Technical Specifications
|
Part # |
6EP1935-6ME21 |
|
Manufacturer |
SIEMENS |
|
Category |
Power Supplies |
|
Subcategory |
Battery Back Up |
|
Operating Temperature |
-15 to 50°C during operation, -20 to 50°C during storage/transport |
|
Cell Configuration |
12 cells |
|
Voltage Output |
27.8 VDC at 10°C, 27.3 VDC at 20°C, 26.8 VDC at 30°C, 26.6 VDC at 40°C, 26.3 VDC at 50°C (recommended end-of-charge voltage) |
|
Relative Capacity Loss |
3% relative temporary capacity loss at 20°C in a month (typical) |
|
Battery Fuse |
20 A/32 VAC (solid-state circuitry blade type fuse + support) with short circuit protection |
|
Degree of Protection |
IP00 |
|
Mounting |
Snaps onto DIN rail EN 60715 35x7.5/15 or keyhole mounting for hooking into M4 screws installation |
|
Connection Technology |
Spring-loaded terminals |
|
Current |
15A and 40A |
|
Fuse Current Rating |
1.75 AMP |
|
Output Voltage |
24VDC |
|
Capacity |
7AH |
Information About 6EP1935-6ME21
The Siemens 6EP1935-6ME21 SITOP Battery Module is designed to provide backup power support for various Siemens SITOP DC UPS modules with ratings of 6A, 15A, and 40A. It features a voltage output of 24V and a capacity of 7AH, ensuring reliable performance during power interruptions or failures.
This battery module utilizes service-free sealed lead-acid batteries, which contribute to its low-maintenance operation and long-term reliability. The sealed design ensures that the batteries remain securely enclosed, minimizing the risk of electrolyte leakage or spillage.
With a temperature range of -15 to 50 degrees Celsius during operation and -20 to 50 degrees Celsius during storage and transport, the 6EP1935-6ME21 battery module is suitable for a variety of operating environments and conditions.
Featuring a 12-cell configuration, this battery module delivers consistent and stable output voltage levels across different temperature ranges. The recommended end-of-charge voltage varies based on temperature, ranging from 26.3VDC at 50 degrees Celsius to 27.8VDC at 10 degrees Celsius.
The module incorporates a 20A/32VAC fuse with solid-state circuitry and blade-type fuse support to protect against short circuits and electrical faults. This fuse ensures the safety and integrity of the battery module and connected equipment.
For ease of installation, the 6EP1935-6ME21 battery module is designed to snap onto DIN rails compatible with EN 60715 35x7.5/15 standards. Additionally, it supports keyhole mounting for secure attachment using M4 screws, providing flexibility in installation options.
The battery module features spring-loaded terminals for convenient and secure electrical connections, enabling quick and reliable integration with compatible UPS modules.
With a fuse current rating of 1.75 AMP and a maximum current capacity of 15A and 40A, the 6EP1935-6ME21 battery module delivers sufficient power to support critical loads during power disruptions.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
