6EP3332-6SB00-0AY0 | Siemens | LOGO!Power Power Supply 120-230VAC In 2.5A/24VDC Out

Description

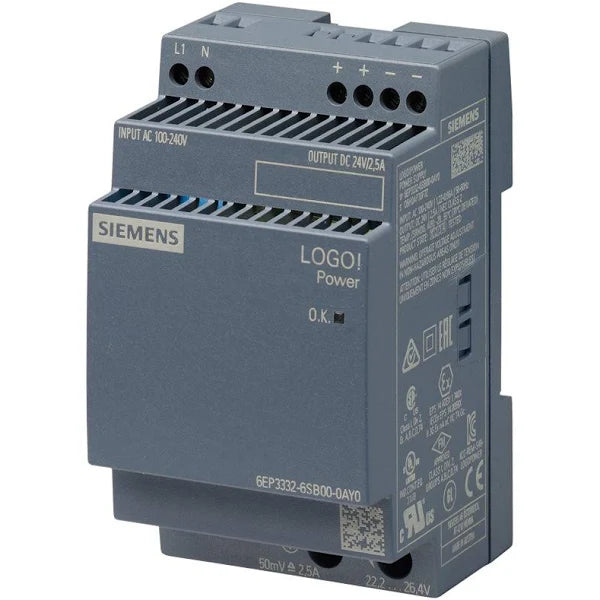

The Siemens 6EP3332-6SB00-0AY0 LOGO!Power is a compact power supply unit with a wide input range of 120-230VAC, capable of delivering 2.5A at 24VDC output. Ideal for Siemens LOGO! programmable logic controllers, it ensures reliable and efficient power for automation systems, combining versatility and performance in a space-saving design.

Technical Specifications

Information About 6EP3332-6SB00-0AY0

Siemens LOGO!Power Series — SITOP Flat Power Supply for Distribution Boards:

The fourth generation of world-proven miniature power supply units now offers even more power in an even smaller design. Each performance variant has been narrowed by a modular width of 18 mm, setting a new standard in its class. At the same time, the new LOGO!Power family also offers a host of additional functionalities, such as flexible mounting, a current monitor, improved energy efficiency and an extended temperature range. For supplying small 12 V and 24 V loads, the product range has been expanded to include two compact units with a width of only 18 mm.

Thanks to the flat, stepped profile design they share with LOGO! 8 modules, these reliable miniature power supplies are ideally suited for low installation depths, such as in distribution boards. The narrow width of the innovative switched-mode power supplies means they only require a small installation area, with wall mounting allowing installation in practically any position. The fourth generation of world-proven miniature power supply units now offers even more power in an even smaller design. Each performance variant has been narrowed by a modular width of 18 mm, setting a new standard in its class. At the same time, the new LOGO!Power family also offers a host of additional functionalities, such as flexible mounting, a current monitor, improved energy efficiency and an extended temperature range. For supplying small 12 V and 24 V loads, the product range has been expanded to include two compact units with a width of only 18 mm.

Features:
Broad portfolio including 11 devices with 5 V, 12 V, 15 V and 24 V DC up to 100 watts (new: 12 V/0.9 A and 24 V/0.6 A)
Flexible operation in all standard 1-phase supply networks thanks to wide range input of 100 to 240 V AC without switchover and operation on DC networks with 110 to 300 V DC
Reliability due to problem-free connection of loads with high inrush currents thanks to power reserve when starting up as well as constant current in the event of overload
High efficiency level of up to 90%
Low no-load losses of up to only 0.3 watts
Operating temperature from -25°C to +70°C
Comprehensive certifications
Stabilized power supplies 5 V, 12 V, 15 V and 24 V up to 100 watts
Every performance class 18 mm smaller (25% to 50%)
Efficiency levels up to 90% over the entire power range and no-load losses below 0.3 W
Extended operating temperature range from -25 °C to +70 °C and international certificates
Simple output current measuring without disconnecting the cable, i.e. without interrupting the DC supply
DIN rail or wall mounting in different mounting positions
Problem-free connection of loads with high inrush currents thanks to power reserves when starting up as well as constant current in the event of overload
