6EP3437-8MB00-2CY0 | Siemens | Power Supply
- Regular price
- $405.00
- Sale price
- $405.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6EP3437-8MB00-2CY0
Description

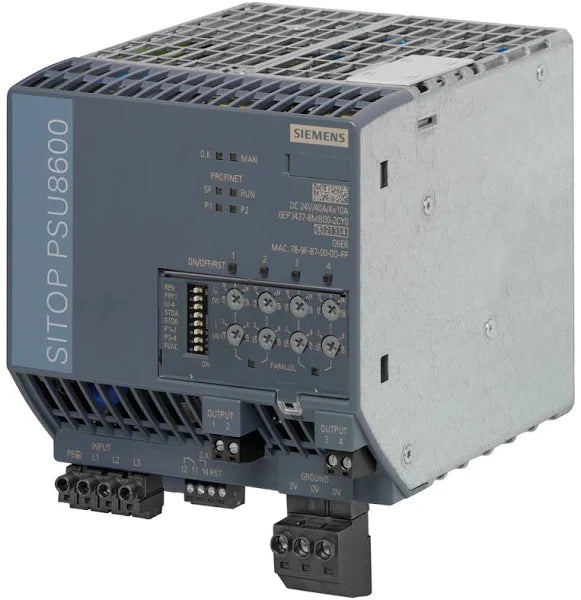

The Siemens 6EP3437-8MB00-2CY0 is part of the SITOP PSU8600 Series, a power supply system designed for industrial applications. This power supply unit (PSU) operates with a 3-phase AC-DC configuration, delivering 24V with 4X 10A output channels. With a voltage input of 480V, it is suitable for demanding industrial environments.
The SITOP PSU8600 Series introduces advanced features in industrial power supplies, offering network integration capabilities and setting new standards in industrial power supply systems. It seamlessly integrates into Totally Integrated Automation (TIA) environments and can be networked via OPC UA with automation systems from various manufacturers.
Configuration and integration of the SITOP PSU8600 are simplified through the TIA Portal, allowing seamless integration into the automation environment from product selection to parameter assignment. Special function blocks for SIMATIC S7-300, S7-400, S7-1200, and S7-1500 support integration into the STEP 7 user program.
Technical Specifications
Specifications
|
Part # |
6EP3437-8MB00-2CY0 |
|
Manufacturer |
SIEMENS |
|
Category |
Power Supplies |
|
Subcategory |
Power Supply |
|
Type of the power supply network |
3-phase AC |
|
- Minimum rated value |
400 V |
|
- Maximum rated value |
500 V |
|
- Initial value |
320 V; Derating 320 … 360 and 530 … 575 V |
|
- Full-scale value |
575 V |
|
Design of input |
Wide range input |
|
Operating condition of the mains buffering |
At Vin = 400 V; Prioritized supply Output 1 at power failure can be selected via DIP switch |
|
Buffering time for rated value of the output current |
Minimum 15 ms |
|
- 1 rated value |
50 Hz |
|
- 2 rated value |
60 Hz |
|
Line frequency |
47 ... 63 Hz |
|
- At rated input voltage 400 V |
2.75 A |
|
- At rated input voltage 500 V |
2.2 A |
|
Current limitation of inrush current at 25 °C |
Maximum 14 A |
|
I2t value |
Maximum 2.24 A²·s |
|
Voltage curve at output |
Controlled, isolated DC voltage |
|
Number of outputs |
4 |
|
Output voltage at DC rated value |
24 V |
|
Output voltage |
At each output, rated value is 24 V |
|
Relative overall tolerance of the voltage |
3% |
|
- On slow fluctuation of input voltage |
0.2% |
|
- On slow fluctuation of ohm loading |
0.1% |
|
- Maximum |
100 mV |
|
Voltage peak |
Maximum 200 mV |
|
Adjustable output voltage |
4 ... 28 V |
|
Product function output voltage adjustable |
Yes |
Information About 6EP3437-8MB00-2CY0
The Siemens 6EP3437-8MB00-2CY0 is a power supply system designed for industrial applications. Belonging to the SITOP PSU8600 Series, it integrates network connectivity, setting new standards in industrial power supplies.
This power supply system can be seamlessly integrated into Totally Integrated Automation (TIA) environments and networked via OPC UA with automation systems from various manufacturers. Configuration within the TIA Portal is straightforward, encompassing product selection, network integration, and parameter assignment. Different software components facilitate smooth integration into the TIA environment, with engineering simplicity via the TIA Portal.
Special function blocks tailored for SIMATIC S7-300, S7-400, S7-1200, and S7-1500 support integration within the STEP 7 user program. The system offers comprehensive operating and diagnostic data visualization through ready-to-use PSU8600 faceplates for WinCC.
Comprehensive diagnostic and maintenance information is accessible via PROFINET, directly evaluable in SIMATIC S7, and visualized in SIMATIC WinCC. Remote monitoring is facilitated through the integrated web server.
The power supply system provides optimal support for energy management, enabling the acquisition of energy data from individual outputs, specific activation and deactivation of outputs via PROFIenergy, and direct integration into power management systems.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
