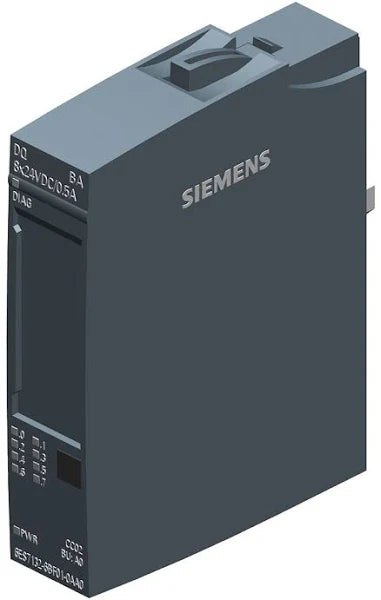

6ES7132-6BF01-0AA0 | Siemens ET 200SP 8-Channel 24VDC Digital Output Module, 0.5A PNP
- Regular price
- $115.00
- Sale price
- $115.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ES7132-6BF01-0AA0
Description
The Siemens 6ES7132-6BF01-0AA0 is an ET 200SP digital output module with eight 24 VDC sourcing (PNP) channels rated at 0.5 A each. This basic version output module supports high-speed switching up to 100 kHz and is intended for installation in ET 200SP cabinet-mounted distributed I/O systems. Designed for 24 VDC operation, it integrates LED status indication and provides SIL2/PL d functional safety capability when used in validated architectures.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | PLCs / Machine Control |
| Part Number | 6ES7132-6BF01-0AA0 |
| Subcategory | VDC Logic I/O Module |
| Series | SIMATIC ET 200SP |
| Type | Digital Output Module |
| Number of Outputs | 8 digital outputs |
| Output Type | PNP (sourcing), 24 VDC |
| Output Current Rating | 0.5 A per channel |
| Switching Frequency | Up to 100 kHz (resistive load) |
| Load Range | 48–12,000 Ω |
| Supply Voltage Range | 19.2–28.8 VDC (24 VDC nominal) |
| Mounting Type | Requires ET 200SP Basic Unit (plug-in module) |
| Termination Style | Via Basic Unit terminals |
| Ingress Protection | IP20 |
| Operating Temperature | –30 °C to +60 °C |
| Color Code | CC02 |
| Safety Rating | SIL2 / PL d |
| Installation Location | Control cabinet |
Information About 6ES7132-6BF01-0AA0
The 6ES7132-6BF01-0AA0 is part of the scalable SIMATIC ET 200SP series, a modular IP20 I/O platform for PROFINET or PROFIBUS-based automation systems. This module offers eight digital outputs designed for sourcing 24 VDC loads, suited for resistive applications requiring rapid switching and stable signal control. It installs on a required ET 200SP Basic Unit, which provides both mechanical mounting and terminal connections, enabling a compact, cabinet-friendly design. Typical uses include driving indicator lamps, solenoids, relays, and general-purpose 24 VDC actuators in machine control environments with demanding operating temperatures and modular expansion requirements.
Key Features
- Eight 24 VDC PNP outputs: Supports sourcing loads up to 0.5 A per channel.
- High-speed capability: Rated for switching frequencies up to 100 kHz for fast digital control.
- Wide supply tolerance: Operates from 19.2 to 28.8 VDC (24 VDC nominal).
- Safety classification: Suitable for SIL2 and PL d applications when system-certified.
- LED channel indication: Provides clear visual status for diagnostics and monitoring.
- Cabinet-mounted IP20 design: Intended for installation on ET 200SP Basic Units.
- Compact modular construction: Enables scalable I/O configuration for distributed systems.
- Extended temperature range: Operates reliably from –30 °C to +60 °C.
The 6ES7132-6BF01-0AA0 delivers the reliability and precision required for high-density digital output control within SIMATIC ET 200SP automation architectures.
