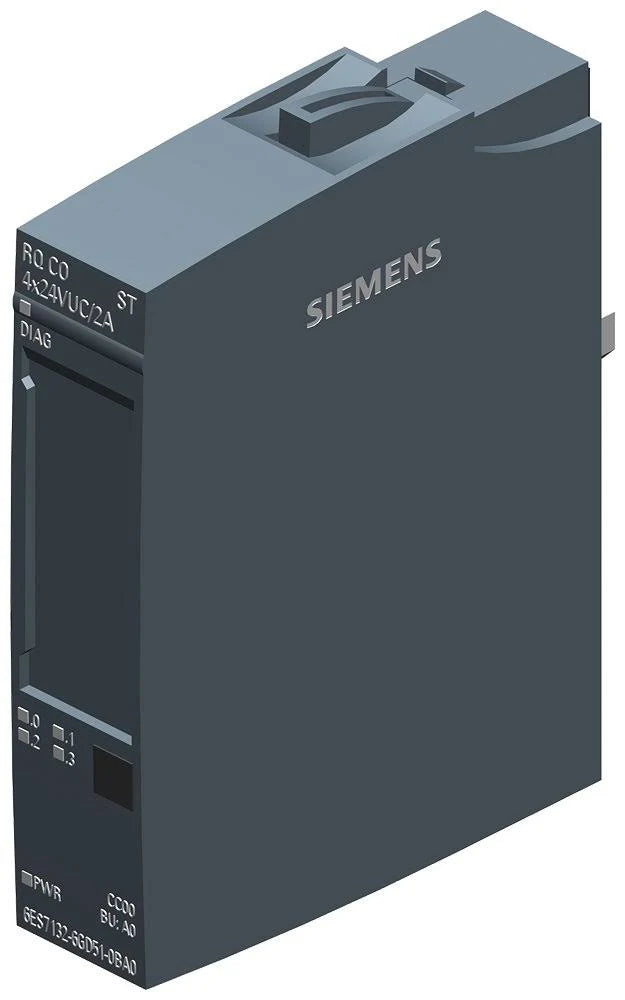

6ES7132-6GD51-0BA0 | Siemens 4-Channel Relay Output Module for ET 200SP
- Regular price
- $199.00
- Sale price
- $199.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ES7132-6GD51-0BA0
Description
The Siemens 6ES7132-6GD51-0BA0 is a relay output module engineered for the SIMATIC ET 200SP system. This Siemens module provides four isolated changeover relay outputs rated for 24 VDC operation at up to 2 A per channel. Designed for reliable signal switching in automation environments, the module supports integrated diagnostics and seamless configuration via STEP 7 and TIA Portal.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | PLCs/Machine Control |
| Part Number | 6ES7132-6GD51-0BA0 |
| Subcategory | PLC Module/Rack |
| Module Type | Relay output module (4-channel) |
| Series / Platform | SIMATIC ET 200SP |
| Output Type | 4 changeover relay outputs |
| Rated Output Current | 2 A per channel |
| Rated Voltage (DC) | 24 V |
| Operating Voltage Range | 19.2–28.8 V DC |
| Reverse Polarity Protection | Yes |
| Current Consumption | 50–60 mA |
| Power Loss (Typical) | 1.2 W |
| Compatibility | STEP 7 TIA Portal V14+, STEP 7 V5.5 SP3, PROFIBUS GSD, PROFINET GSDML V2.3 |
| Base Unit Compatibility | BU-type A0 |
| Diagnostics | Supply voltage monitoring |
| Color Code | CC00 |
| Isolation | Isolated relay contacts |
| Outputs | 4 relay outputs |
Information About 6ES7132-6GD51-0BA0
The 6ES7132-6GD51-0BA0 is part of the SIMATIC ET 200SP family, offering compact and modular output functionality for distributed automation systems. Built with a relay-based design, it features four individually isolated changeover contacts that ensure dependable switching for DC loads up to 2 A. The module integrates easily with BU-type A0 base units and supports configuration via STEP 7 TIA Portal (V14 and later), classic STEP 7, PROFIBUS GSD files, and PROFINET GSDML V2.3. Designed for industrial applications requiring safe signal handoff, redundancy handling, and substitute value output capability, it also includes onboard diagnostics to monitor supply voltage status. This robust construction and broad compatibility make the module suitable for diverse machine control and distributed I/O systems within the ET 200SP platform.
Key Features:
- Relay-based output design: Four isolated changeover contacts rated for 24 VDC/2 A switching.
- ET 200SP platform integration: Compact module format for distributed I/O installations.
- Wide operating voltage range: Supports 19.2 to 28.8 VDC with reverse polarity protection.
- Substitute value capability: Maintains controlled output behavior during system variations.
- Built-in diagnostics: Monitors supply voltage for enhanced system reliability.
- Broad configuration support: Compatible with TIA Portal V14+, STEP 7 V5.5 SP3, PROFIBUS GSD, and PROFINET GSDML files.
- Isolated contacts: Ensures electrical separation for improved durability and safety.
- Low power consumption: Efficient 50–60 mA operation with typical 1.2 W power loss.
The 6ES7132-6GD51-0BA0 delivers the reliability and precision required for robust relay-based output control in distributed automation systems.
