6ES7135-6HD00-0BA1 | Siemens | Output Module
- Regular price
- $214.00
- Sale price
- $214.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ES7135-6HD00-0BA1
Description

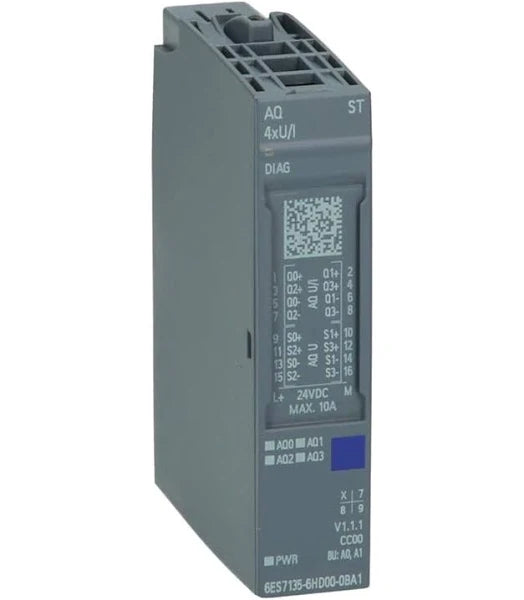

The Siemens 6ES7135-6HD00-0BA1 is a SIMATIC ET200SP Analog Current/Voltage Output Module designed for integration into the ET 200SP Distributed I/O System within the SIMATIC S7 DP Electronic Module series. This module features four channels dedicated to Analog Current/Voltage Outputs with a voltage range of +/-10V DC and a current range of 0-20mA and 4-20mA.
Technical Specifications
Specifications
|
Part # |
6ES7135-6HD00-0BA1 |
|
Manufacturer |
SIEMENS |
|
Category |
PLCs/Machine Control |
|
Subcategory |
PLC Module/Rack |
|
Firmware version |
V1.1 |
|
Usable BaseUnits |
BU type A0, A1 |
|
Color code for module-specific label |
CC00 |
|
I&M data |
Yes |
|
Engineering with STEP 7 TIA Portal |
V11 SP2 / V13 |
|
Engineering with STEP 7 |
V5.5 SP3 / - |
|
PROFIBUS as of GSD revision |
GSD revision 5 |
|
PROFINET as of GSD revision |
V2.3 / - |
|
CiR Configuration in RUN |
Yes |
|
Configuration in RUN possible |
Yes |
|
Rack mounting possible |
Yes |
|
Front installation possible |
Yes |
|
Rail mounting possible |
Yes |
|
Wall/direct mounting possible |
No |
|
Supply voltage |
DC |
|
Rated value (DC) |
24 V |
|
Valid range low limit (DC) |
19.2 V |
|
Valid range high limit (DC) |
28.8 V |
|
Reverse polarity protection |
Yes |
|
Current consumption, max. |
150 mA |
|
Power loss, typ. |
1.5 W |
|
Address space per module |
Max. 8 bytes; + 1 byte for QI information |
Information About 6ES7135-6HD00-0BA1
The Siemens 6ES7135-6HD00-0BA1 is a SIMATIC S7 DP electronic module designed for integration within the ET 200SP distributed I/O system. This module features four analog current/voltage output channels, each capable of providing a range of signals from +/-10V DC to 0-20mA and 4-20mA. It serves as an integral component for transmitting analog signals within industrial automation environments.
The module, identified by part number 6ES7 135-6HD00-0BA1, facilitates the conversion of digital signals from the control system into analog voltage or current outputs. It enables the control and regulation of various industrial processes that rely on analog control signals.
Each of the four output channels offers flexibility in signal range, supporting a voltage range of +/-10V DC and a current range of 0-20mA to 4-20mA. This versatility allows for compatibility with a wide array of industrial equipment and control devices.
The SIMATIC ET200SP Analog Cur/Volt Output Module is engineered to meet the stringent requirements of industrial applications. It ensures precision and reliability in signal transmission, contributing to the efficiency and accuracy of process control systems.
The module's integration into the ET 200SP system enables seamless communication with other components within the distributed I/O network. It adheres to Siemens' standards of quality and performance, ensuring compatibility and interoperability with other Siemens automation products.
With its compact design and robust construction, the 6ES7135-6HD00-0BA1 module is suitable for installation in various industrial environments. It is engineered to withstand harsh operating conditions, providing reliable performance even in demanding settings.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
Description
The Siemens 6ES7135-6HD00-0BA1 is a SIMATIC ET200SP Analog Current/Voltage Output Module designed for integration into the ET 200SP Distributed I/O System within the SIMATIC S7 DP Electronic Module series. This module features four channels dedicated to Analog Current/Voltage Outputs with a voltage range of +/-10V DC and a current range of 0-20mA and 4-20mA.
Technical Specifications
Specifications
|
Part # |
6ES7135-6HD00-0BA1 |
|
Manufacturer |
SIEMENS |
|
Category |
PLCs/Machine Control |
|
Subcategory |
PLC Module/Rack |
|
Firmware version |
V1.1 |
|
Usable BaseUnits |
BU type A0, A1 |
|
Color code for module-specific label |
CC00 |
|
I&M data |
Yes |
|
Engineering with STEP 7 TIA Portal |
V11 SP2 / V13 |
|
Engineering with STEP 7 |
V5.5 SP3 / - |
|
PROFIBUS as of GSD revision |
GSD revision 5 |
|
PROFINET as of GSD revision |
V2.3 / - |
|
CiR Configuration in RUN |
Yes |
|
Configuration in RUN possible |
Yes |
|
Rack mounting possible |
Yes |
|
Front installation possible |
Yes |
|
Rail mounting possible |
Yes |
|
Wall/direct mounting possible |
No |
|
Supply voltage |
DC |
|
Rated value (DC) |
24 V |
|
Valid range low limit (DC) |
19.2 V |
|
Valid range high limit (DC) |
28.8 V |
|
Reverse polarity protection |
Yes |
|
Current consumption, max. |
150 mA |
|
Power loss, typ. |
1.5 W |
|
Address space per module |
Max. 8 bytes; + 1 byte for QI information |
Information About 6ES7135-6HD00-0BA1
The Siemens 6ES7135-6HD00-0BA1 is a SIMATIC S7 DP electronic module designed for integration within the ET 200SP distributed I/O system. This module features four analog current/voltage output channels, each capable of providing a range of signals from +/-10V DC to 0-20mA and 4-20mA. It serves as an integral component for transmitting analog signals within industrial automation environments.
The module, identified by part number 6ES7 135-6HD00-0BA1, facilitates the conversion of digital signals from the control system into analog voltage or current outputs. It enables the control and regulation of various industrial processes that rely on analog control signals.
Each of the four output channels offers flexibility in signal range, supporting a voltage range of +/-10V DC and a current range of 0-20mA to 4-20mA. This versatility allows for compatibility with a wide array of industrial equipment and control devices.
The SIMATIC ET200SP Analog Cur/Volt Output Module is engineered to meet the stringent requirements of industrial applications. It ensures precision and reliability in signal transmission, contributing to the efficiency and accuracy of process control systems.
The module's integration into the ET 200SP system enables seamless communication with other components within the distributed I/O network. It adheres to Siemens' standards of quality and performance, ensuring compatibility and interoperability with other Siemens automation products.
With its compact design and robust construction, the 6ES7135-6HD00-0BA1 module is suitable for installation in various industrial environments. It is engineered to withstand harsh operating conditions, providing reliable performance even in demanding settings.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
