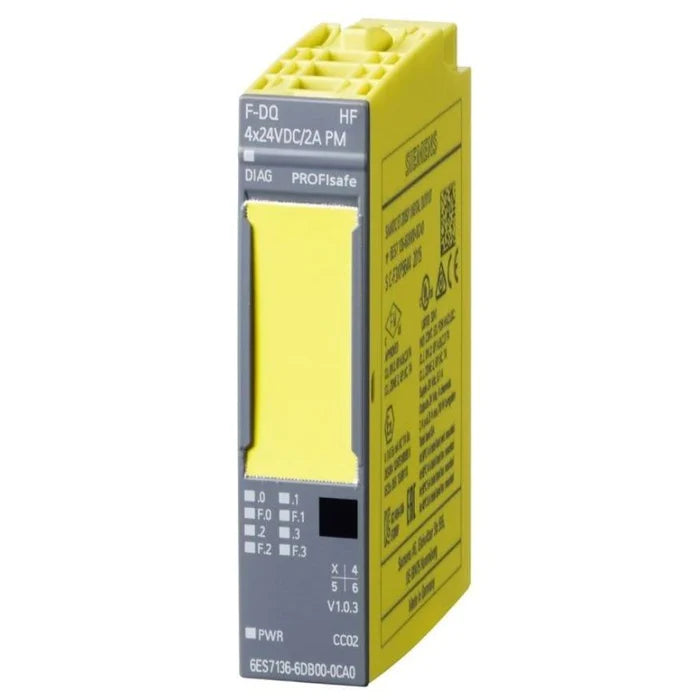

6ES7136-6DB00-0CA0 | SIEMENS SIMATIC DP, Electronics module for ET 200SP, F-DQ 4X24 V DC/2A
- Regular price
- $232.00
- Sale price
- $232.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6ES7136-6DB00-0CA0
Description
Siemens 6ES71366DB000CA0 SIMATIC DP Digital F Output Module. Siemens Electronic Output Module, 4 Output, 24 VDC, 2 A, 0 to 60 deg C, 73 mm H x 15 mm W x 58 mm D. Additional Description: SIEM-6ES71366DB000CA0 ET 200SP, EL-MOD, 4 F-DQ, DC 24V/2A 24V/2A. Catalog Description: SIMATIC dp, electron. module f. et 200sp, f-dq 4xDC 24v/2a, 15 mm width.
Technical Specifications
| Brand | SIEMENS |
| Main function | Safety I/O unit |
| Product series / family name | SIMATIC |
| Sub-range name | ET 200SP |
| Functions | Fail-safe / Safety DC digital output module I&M0 to I&M3 |
| Design | cabinet I/O High-feature version |
| Supply voltage (DC) | 24Vdc |
| Display | LED indicator |
| Color | CC01 |
| Net Width (mm) | 15 mm |
| Mounting mode | Plug-in |
| Digital outputs | 4 x digital outputs (24Vdc 2A / 12-2000Ω / 30Hz resistive load) |
| Ambient air temperature for operation | 0...+60 °C |
| Technical compatibility with | SIMATIC ET 200SP |
Information About 6ES7136-6DB00-0CA0
The 6ES7136-6DB00-0CA0 is a state-of-the-art electronics module from SIEMENS, designed for use in the SIMATIC DP system, specifically within the ET 200SP platform. This module, labeled as F-DQ, is configured to handle digital output tasks, offering four channels with a voltage rating of 24 V DC and a current capacity of 2A per channel.
As an integral part of the ET 200SP system, this electronics module plays a pivotal role in expanding the capabilities of the distributed I/O architecture. Its primary function is to provide reliable and efficient control of digital output signals in industrial automation applications.
Each of the four channels on the 6ES7136-6DB00-0CA0 module can handle a load of up to 2A, making it suitable for a variety of output devices in a typical industrial setting. The 24 V DC voltage rating ensures compatibility with common industrial power supplies, contributing to seamless integration within existing control systems.
Installation and configuration are facilitated by the SIMATIC DP platform's user-friendly design, allowing for quick and straightforward implementation. The module is engineered with a focus on robustness and durability, meeting the stringent requirements of industrial environments. Additionally, it adheres to international standards, ensuring compliance with safety and performance regulations.
The 6ES7136-6DB00-0CA0 module is characterized by its versatility, making it well-suited for applications where precise and reliable control of digital output signals is essential. Whether in manufacturing, process control, or other industrial scenarios, this SIEMENS electronics module delivers the performance and flexibility required to meet the demands of modern automation systems.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
