6ES7136-6RA00-0BF0 | Siemens | Electronic Module
6ES7136-6RA00-0BF0 | Siemens | Electronic Module
6ES7136-6RA00-0BF0 | Siemens | Electronic Module
    6ES7136-6RA00-0BF0 | Siemens | Electronic Module
6ES7136-6RA00-0BF0 | Siemens | Electronic Module

6ES7136-6RA00-0BF0 | Siemens | Electronic Module

Part #: 6ES7136-6RA00-0BF0 Manufactured by: Siemens
Regular price
$197.00
Sale price
$197.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Siemens 6ES7136-6RA00-0BF0 is a SIMATIC S7 DP Electronic Module engineered for integration within the ET 200SP Distrib...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 6ES7136-6RA00-0BF0
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Siemens
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 6ES7136-6RA00-0BF0

Description / Specifications

Description

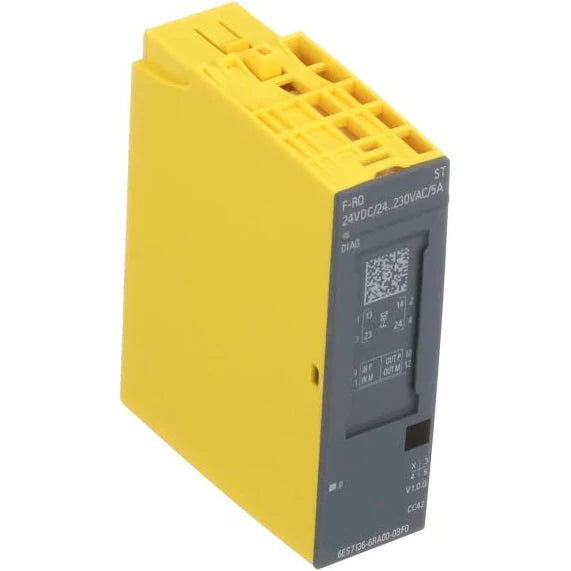

The Siemens 6ES7136-6RA00-0BF0 is a SIMATIC S7 DP electronic module designed for the ET 200SP distributed I/O system. It features F-RQ 1x 24V DC / 24-230V AC 5A input and 1x relay output with 2 normally open (N.O.) contacts. This module serves as an interface for connecting distributed input and output devices to the Siemens S7 control system.

With its versatile input configuration, the module supports a wide range of voltage inputs, spanning from 24V DC to 24-230V AC, making it adaptable to various industrial power systems. The relay output provides reliable switching capabilities, with two N.O. contacts ensuring robust performance in control applications.



Technical Specifications



Part #

6ES7136-6RA00-0BF0

Manufacturer

SIEMENS

Category

PLCs/Machine Control

Subcategory

VDC Logic I/O Module

Product type designation

F-RQ 24 ... 48VDC/24 ... 230VAC/5A ST

Usable BaseUnits BU type

F0

Color code for module-specific color plate

CC42 STEP 7 TIA Portal configurable/integrated from version V13

Rated value (DC)

24 V; Coil voltage

Permissible range, lower limit (DC)

20.4 V

Permissible range, upper limit (DC)

28.8 V

Power supply according to NEC Class 2 required

No

Power available from the backplane bus

100 mW

Power loss, typ.

1 W

Type of digital output

Relays

Number of digital outputs

1

Limitation of inductive shutdown voltage

No

Controlling a digital input

Yes with resistive load, max. 5 A

Controlling a digital input

on lamp load, max. 25 W with resistive load, max. 2 Hz

Number of relay outputs

1; 2 NO contacts

Rated supply voltage of relay coil L+ (DC)

24 V

Current consumption of relays (coil current of all relays), max.

70 mA

External protection for relay outputs

Yes; 6 A, see data in manual

Relay approved acc. to UL 508

Yes; Pilot Duty B300, R300 with inductive load, max. see manual

Thermal continuous current, max.

5 A

Switching current, min.

1 mA

Switching current after exceeding 300 mA, min.

10 mA

Switching current after exceeding 300 mA, max.

5 A

Rated switching voltage (DC)

24 V

Rated switching voltage (AC)

230 V between channels and backplane bus/supply voltage

Isolation tested

2 545 V DC/2 s (routine test)

Overvoltage category

III (according to IEC/EN 61131-2:2007 and EN 298:2012), II (according to IEC 61131-2:2017 and IEC 61010-2-201)



Information About 6ES7136-6RA00-0BF0


The Siemens 6ES7136-6RA00-0BF0 is a SIMATIC S7 DP Electronic Module specifically designed for integration within the ET 200SP Distributed I/O System. This electronic module, identified by the part number 6ES7 136-6RA00-0BF0, serves a distinct function within the broader framework of industrial automation and control systems.

Primarily categorized under PLCs/Machine Control, with a specific subcategory denoted as VDC Logic I/O Module, this module features the product type designation F-RQ 1x 24V DC / 24-230V AC 5A. This nomenclature indicates its capability to handle digital input and output signals, with a rated current of 5A and an input voltage range spanning from 24V DC to 24-230V AC.

The module is characterized by its usability with BaseUnits BU type F0. The color code CC42 serves for module-specific color identification on the associated labeling plate. Notably, it is configurable and integrated into the STEP 7 TIA Portal, commencing from version V13. Additionally, it supports configuration from STEP 7 versions V5.5 SP4 and higher. The module is equipped with communication ports compliant with PROFINET specifications, available from GSD version/GSD revision V2.31 onwards.

In terms of electrical specifications, the module operates with a coil voltage of 24V DC, within a permissible range from 20.4V to 28.8V DC. The power supply adheres to NEC Class 2 standards, and the module does not draw power from the backplane bus beyond 100mW. The typical power loss is 1W.

The digital output type is relay-based, offering a single output with 2 normally open (N.O.) contacts. The relay is approved according to UL 508 standards, specifically Pilot Duty B300, R300 with maximum loads specified in the accompanying manual. The relay coil's rated supply voltage is 24V DC, with a maximum coil current consumption of 70mA. External protection for relay outputs is implemented with a 6A capacity, details of which are elucidated in the manual.

Manufacturer information

Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Siemens 6ES7136-6RA00-0BF0 is a SIMATIC S7 DP electronic module designed for the ET 200SP distributed I/O system. It features F-RQ 1x 24V DC / 24-230V AC 5A input and 1x relay output with 2 normally open (N.O.) contacts. This module serves as an interface for connecting distributed input and output devices to the Siemens S7 control system.

With its versatile input configuration, the module supports a wide range of voltage inputs, spanning from 24V DC to 24-230V AC, making it adaptable to various industrial power systems. The relay output provides reliable switching capabilities, with two N.O. contacts ensuring robust performance in control applications.



Technical Specifications



Part #

6ES7136-6RA00-0BF0

Manufacturer

SIEMENS

Category

PLCs/Machine Control

Subcategory

VDC Logic I/O Module

Product type designation

F-RQ 24 ... 48VDC/24 ... 230VAC/5A ST

Usable BaseUnits BU type

F0

Color code for module-specific color plate

CC42 STEP 7 TIA Portal configurable/integrated from version V13

Rated value (DC)

24 V; Coil voltage

Permissible range, lower limit (DC)

20.4 V

Permissible range, upper limit (DC)

28.8 V

Power supply according to NEC Class 2 required

No

Power available from the backplane bus

100 mW

Power loss, typ.

1 W

Type of digital output

Relays

Number of digital outputs

1

Limitation of inductive shutdown voltage

No

Controlling a digital input

Yes with resistive load, max. 5 A

Controlling a digital input

on lamp load, max. 25 W with resistive load, max. 2 Hz

Number of relay outputs

1; 2 NO contacts

Rated supply voltage of relay coil L+ (DC)

24 V

Current consumption of relays (coil current of all relays), max.

70 mA

External protection for relay outputs

Yes; 6 A, see data in manual

Relay approved acc. to UL 508

Yes; Pilot Duty B300, R300 with inductive load, max. see manual

Thermal continuous current, max.

5 A

Switching current, min.

1 mA

Switching current after exceeding 300 mA, min.

10 mA

Switching current after exceeding 300 mA, max.

5 A

Rated switching voltage (DC)

24 V

Rated switching voltage (AC)

230 V between channels and backplane bus/supply voltage

Isolation tested

2 545 V DC/2 s (routine test)

Overvoltage category

III (according to IEC/EN 61131-2:2007 and EN 298:2012), II (according to IEC 61131-2:2017 and IEC 61010-2-201)



Information About 6ES7136-6RA00-0BF0


The Siemens 6ES7136-6RA00-0BF0 is a SIMATIC S7 DP Electronic Module specifically designed for integration within the ET 200SP Distributed I/O System. This electronic module, identified by the part number 6ES7 136-6RA00-0BF0, serves a distinct function within the broader framework of industrial automation and control systems.

Primarily categorized under PLCs/Machine Control, with a specific subcategory denoted as VDC Logic I/O Module, this module features the product type designation F-RQ 1x 24V DC / 24-230V AC 5A. This nomenclature indicates its capability to handle digital input and output signals, with a rated current of 5A and an input voltage range spanning from 24V DC to 24-230V AC.

The module is characterized by its usability with BaseUnits BU type F0. The color code CC42 serves for module-specific color identification on the associated labeling plate. Notably, it is configurable and integrated into the STEP 7 TIA Portal, commencing from version V13. Additionally, it supports configuration from STEP 7 versions V5.5 SP4 and higher. The module is equipped with communication ports compliant with PROFINET specifications, available from GSD version/GSD revision V2.31 onwards.

In terms of electrical specifications, the module operates with a coil voltage of 24V DC, within a permissible range from 20.4V to 28.8V DC. The power supply adheres to NEC Class 2 standards, and the module does not draw power from the backplane bus beyond 100mW. The typical power loss is 1W.

The digital output type is relay-based, offering a single output with 2 normally open (N.O.) contacts. The relay is approved according to UL 508 standards, specifically Pilot Duty B300, R300 with maximum loads specified in the accompanying manual. The relay coil's rated supply voltage is 24V DC, with a maximum coil current consumption of 70mA. External protection for relay outputs is implemented with a 6A capacity, details of which are elucidated in the manual.

Manufacturer information

Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
